Gigabyte MX32-4L0 User Manual

- 19 - Hardware Installation

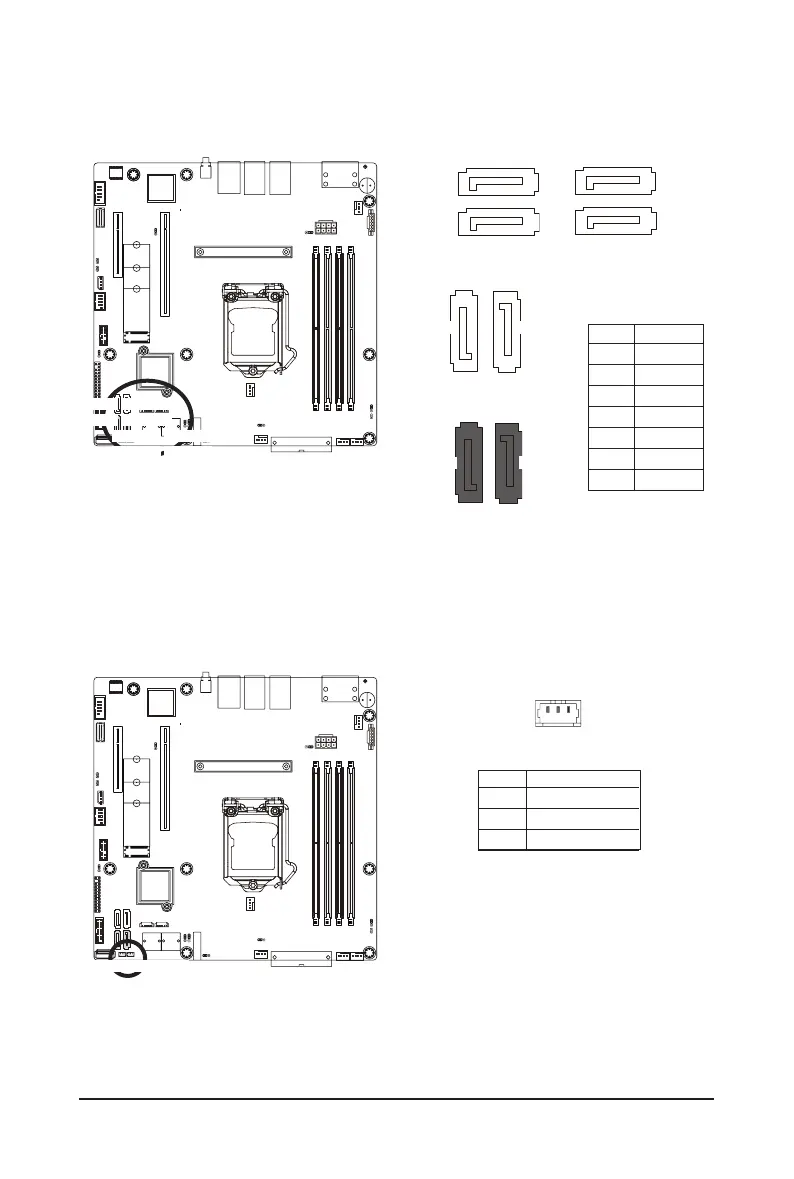

3/4/5) SATA0/SATA1/SATA2/SATA3/SATA4/SATA5/SATA6/SATA7(SATA 6Gb/s Connectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s standard. Each
SATA connector supports a single SATA device.
SATAIII_0
SATAIII_1
SATAIII_2
SATAIII_3
7
1
1
7
SATAIII_0
SATAIII_1
SATAIII_2
SATAIII_3
PinNo. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
6) SATA_DOM1/ SATA_DOM2 Power Connector
SATA-DOM (Disk on Module) is available to allow for standalone boot and diagnostics direct through SATA
connections on the board.
PinNo. Denition
1 5V for SATA DOM
2 GND
3 No Connect
SATA_DOM2
SATA_DOM1
SATAIII_6
SATAIII_4
SATAIII_7
SATAIII_5
7
1
7
1
7
1
1
SATAIII_6SATAIII_7
SATAIII_5
SATAIII_4
7
1
1
7
(Support SATA DOM Power)
3
1
7
