Gigabyte MX32-4L0 User Manual

Hardware Installation - 20 -

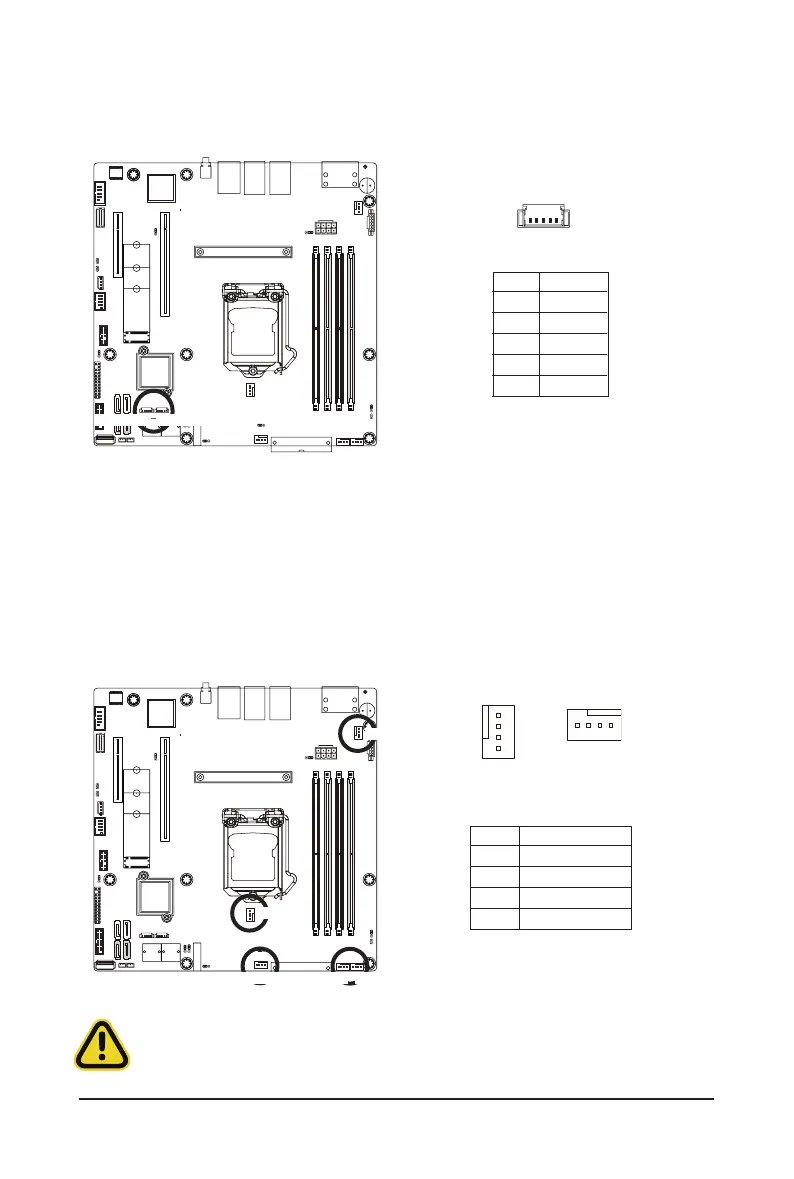

7) SATA_SGP1/ SATA_SGP2 (SATA SGPIO) Connector
Serial General Purpose Input/Output (SGPIO) is a communication method used between a host bus adapter
(HBA) and a main board.
SATA_SGP1
SATA_SGP2
PinNo. Denition
1 Data
2 GND
3 NC
4 Load
5 Clock
15
8/9/10/11/12) CPU_FAN/SYS_FAN1/SYS_FAN3/SYS_FAN2/SYS_FAN4
(CPU Fan/System Fan Headers)
The motherboard has one 4-pin CPU fan header (CPU_FAN), and two 4-pin (SYS_FAN) system fan headers.
Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect
it in the correct orientation (the black connector wire is the ground wire). The motherboard supports CPU
fan speed control, which requires the use of a CPU fan with fan speed control design. For optimum heat
dissipation, it is recommended that a system fan be installed inside the chassis.
1
1
PinNo. Denition
1 GND
2 +12V
3 Sense
4 Speed Control
•
Be sure to connect fan cables to the fan headers to prevent your CPU and system from
overheating. Overheating may result in damage to the CPU or the system may hang.
•
 Thesefanheadersarenotconfigurationjumperblocks.Donotplaceajumpercaponthe
headers.
CPU_FAN
SYS_FAN1
SYS_FAN3
SYS_FAN2
SYS_FAN4
