Gigabyte MX32-4L0 User Manual

- 23 - Hardware Installation
PinNo. Denition
1 Clock
2 Data
3 GND
4 VCC

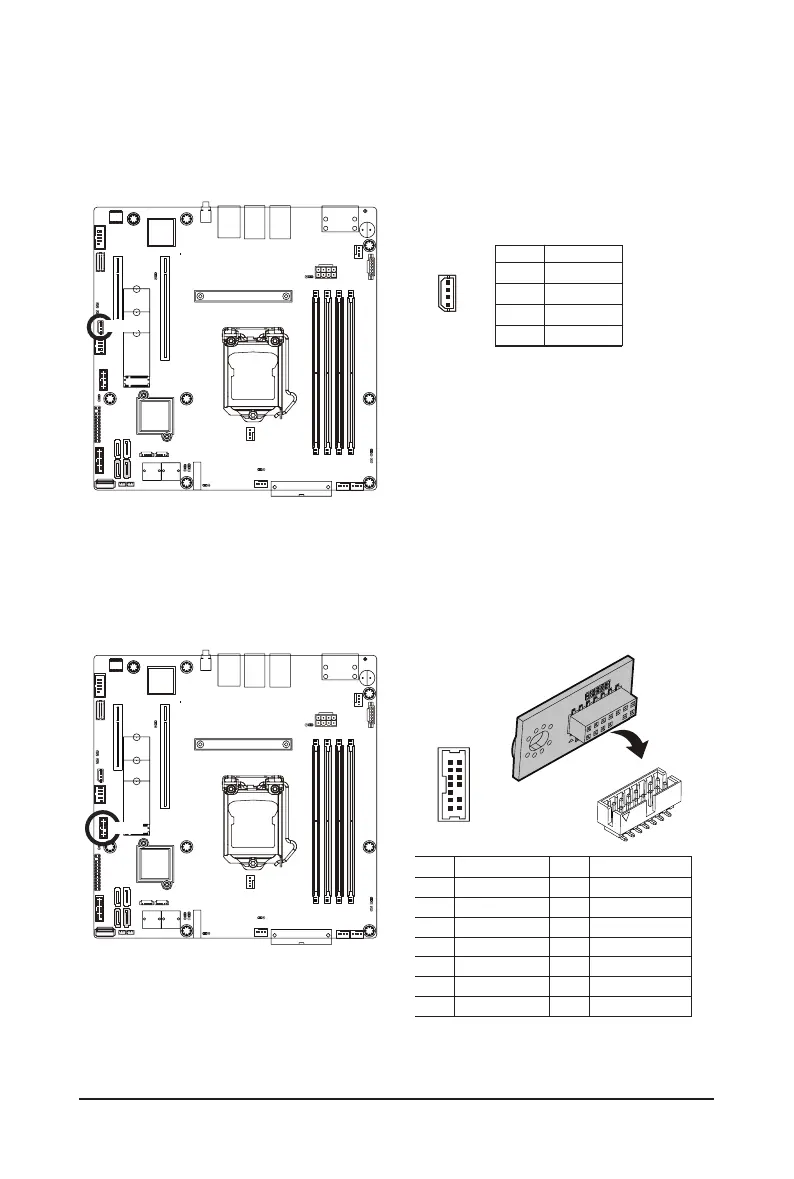

18) IPMB (Intelligent Platform Management Bus) Connector
The Intelligent Platform Management Bus Communications Protocol defines a byte-level transport for
transferringIntelligentPlatformManagementInterfaceSpecication(IPMI)messagesbetweenintelligentI2C
devices.
IPMB
19) TPM (Trusted Platform Module Connector)
Trusted Platform Module (TPM) is an international standard for a secure cryptoprocessor, a dedicated
microcontroller designed to secure hardware through integrated cryptographic keys.
TPM
Pin No. Denition Pin No. Denition
1 CLK_24M_TPM 8 NC
2 P_3V3_AUX 9 LPC_LAD_2
3 RST_PLTRST 10 KEY
4 P3V3 11 LPC_LAD_3
5 LPC_LAD_0 12 GND
6 IRQ_SERIAL 13 LPC_FRAME_N
7 LPC_LAD_1 14 GND
4
1
12
13 14
