Gigabyte X570 AORUS ELITE WIFI User Manual

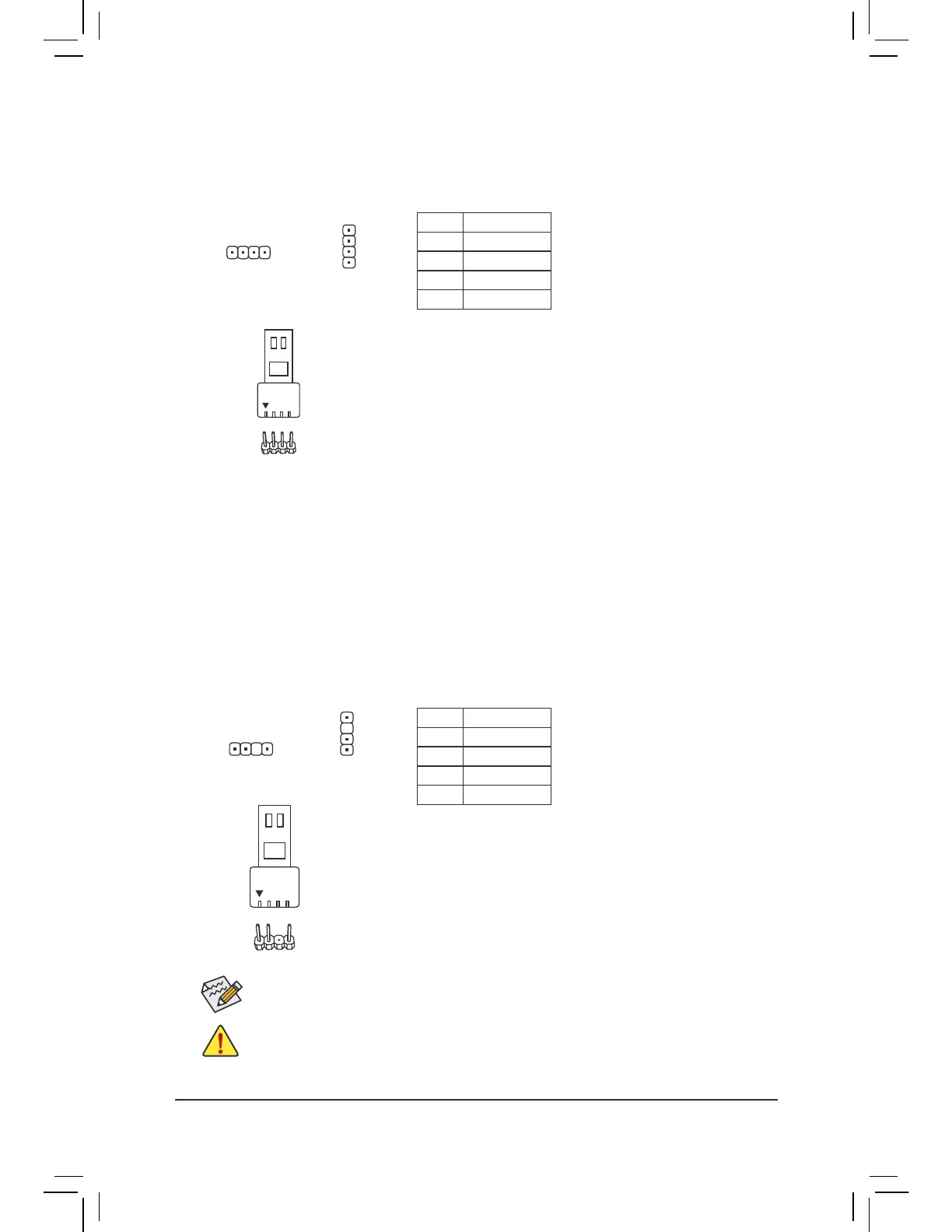

8) LED_C1/LED_C2 (RGB LED Strip Headers)
The headers can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power
rating of 2A (12V) and maximum length of 2m.
Pin No. Denition
1 12V
2 G
3 R
4 B
1
1
LED_C1
LED_C2
Connect your RGB LED strip to the header. The power pin (marked
with a triangle on the plug) o the LED strip must be connected to
Pin 1 (12V) of this header. Incorrect connection may lead to the
damage o the LED strip.
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
For how to turn on/o the lights o the LED strip please visit the "Unique Features" webpage o
GIGABYTE's website.
RGB LED Strip
1
12V
Pin No. Denition
1 V (5V)
2 D
3 No Pin
4 G
9) D_LED1/D_LED2 (Addressable LED Strip Headers)
The headers can be used to connect a standard 5050 addressable LED strip, with maximum power rating
o 5A (5V) and maximum number o 1000 LEDs.
Connect your addr essable LED strip to the header. The power
pin (marked with a triangle on the plug) o the LED strip must be
connected to Pin 1 o the addressable LED strip header. Incorrect
connection may lead to the damage o the LED strip.
D_LED1 D_LED2
1
1
Addressable
LED Strip
1
- 19 -

Gigabyte X570 AORUS ELITE WIFI Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 2nd Gen, AMD Ryzen 3 3rd Gen, AMD Ryzen 5 2nd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 2nd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC1200
Cooling type	Active
Component for	PC
Power source type	ATX
Motherboard chipset	AMD X570
Audio output channels	5.1 channels
Windows operating systems supported	Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
HDD size	2.5/3.5 \
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	16384 MB
Parallel processing technology support	2-Way CrossFireX, Quad-GPU CrossFireX
Number of M.2 (M) slots	2
Number of SATA II connectors	0
Number of SATA III connectors	6
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Bundled software	Norton Internet Security (OEM version) cFosSpeed

Weight and Dimensions

Depth	244 mm
Width	305 mm
