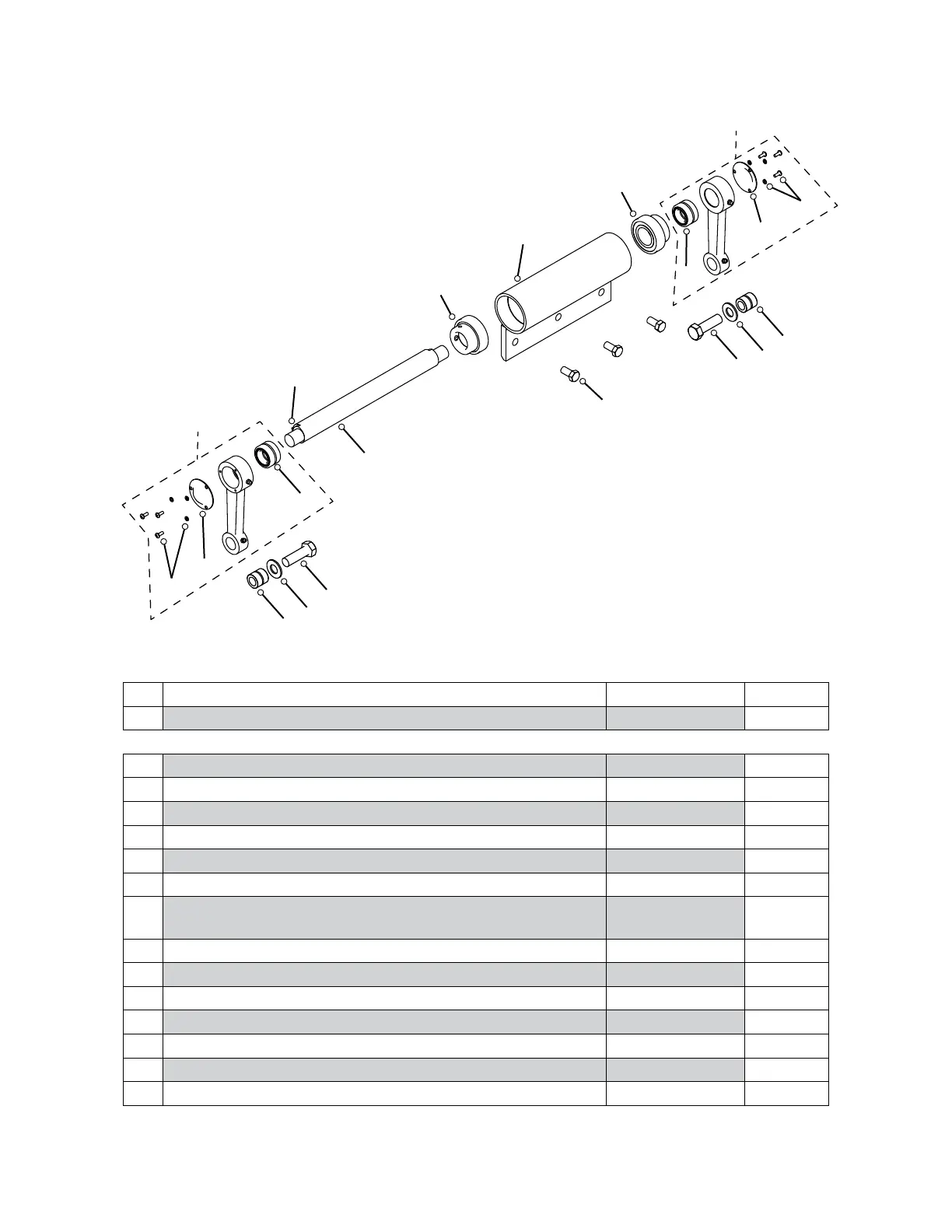

Main Drive/Connecting Rod Assemblies
1
3
4
5
6
7
9
10
8
2
5
4
3
8
11
12
13
11
12
13
Description Part Number # Req.
1 Connecting Rod Assembly, Left (Complete)
RPTS-MDHA8L
1
1
2 Connecting Rod Assembly, Right (Complete) RPTS-MDHA8R
1
1
CONNECTING ROD PARTS
3 Bearing Cap Screws and Lock Washers (Pkg� of 3 each) RPTS-MDHA11 1
4 Connecting Rod Bearing Cap RPTS-MDHA10 2
5 Connecting Rod Bearing with Inner Race RPTS-MDHA9 1
6 Main Shaft RPTS-MDHA3 1
— Main Shaft (Special Low Amp) TSA-200 1
7 Main Shaft Key RPTS-MDHA5 1
8 Main Shaft Bearing (through serial # 6832)
Main Shaft Bearing (serial # 6833 and after)
RPTS-MDHA6
RPTS-MDHA7
2
9 Housing Bracket Bolts, 0�5x1in RPTS-MDHA2 3
10 Main Shaft Housing RPTS-MDHA1 1
— Wrist Pin with Cap Screw (through serial # 1839) RPTS-MDHA12 1
— Wrist Pin Set Screw RPTS-MDHA13 1
11 Wrist Pin Shoulder Bolt, 5/8x2in RPTS-MDHA14 2
12 Wrist Pin Sleeve Retaining Washer (serial #1840 and after) RPTS-MDHA15 2
13 Wrist Pin Sleeve RPTS-MDHA16 2
1
Left/Right Assembly (Complete) includes connecting rod and parts # 3, 4, 5
To Next Page
