Gilson TS-3 - TS-1;TS-3 Clamp Rod Assembly

22

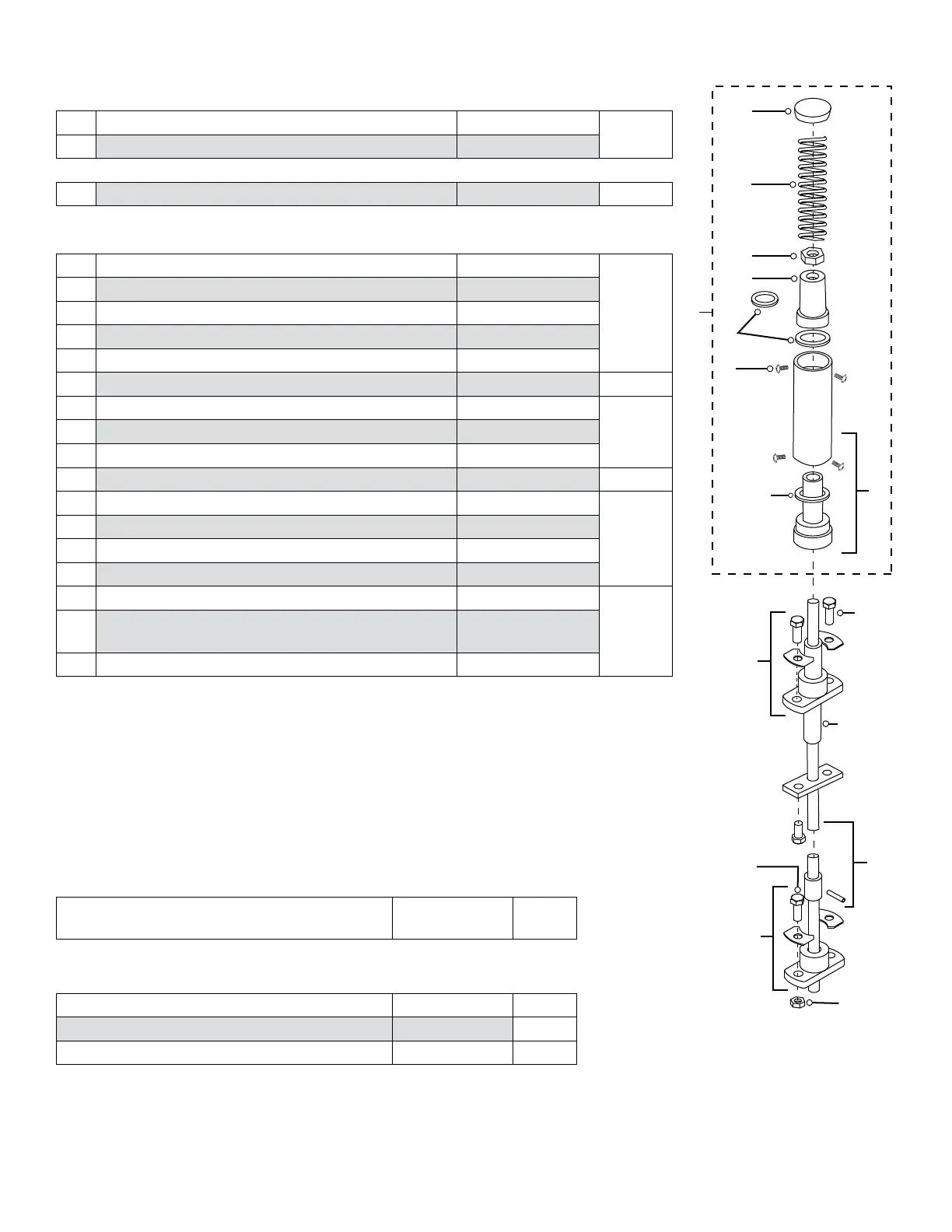

TS-1/TS-3/TS-4 Clamp Rod Assembly
Description Part Number # Req.
— TS-1 Hydraulic Clamp Rod Assembly (Complete) RPTS-1HCRA
1
2
— TS-3 Hydraulic Clamp Rod Assembly (Complete) RPTS-1HCRA-3
1
1 Hydraulic Cylinder Assembly (Complete) RPTS-1HCA2
2
1
CLAMP ROD PARTS
2 Hydraulic Cylinder Cap RPTS-1KEY1
1
3 Hydraulic Cylinder Spring RPTS-1KEY2
4 Clamp Rod Hex Jam Nut RPTS-1KEY3
5 Hydraulic Cylinder Piston RPTS-1KEY4
6 Hydraulic Cylinder Quad Ring Set RPTS-1KEY5
7 Cylinder Cap Screw RPTS-1KEY6 2
8 Cylinder and Base Sub-assembly RPTS-1KEY7
19 Cylinder O-Ring RPTS-1KEY7-1
10 Hydraulic Upper Guide Bearing Assembly RPTS-1KEY9
11 Hydraulic Upper Guide Bearing Screw RPTS-1KEY8 2
12 Hydraulic Upper Guide Bearing Sleeve RPTS-1KEY10
1
13 TS-1 Hydraulic Clamp Rod, Collar, and Pin RPTS-1KEY11
14 TS-3 Hydraulic Clamp Rod, Collar, and Pin RPTS-1KEY11-3
15 Hydraulic Lower Guide Bearing Assembly RPTS-1KEY14
16 Hydraulic Lower Guide Bearing Screw RPTS-1KEY15-1
217
Hydraulic Lower Guide Bearing Screw
Stop Nut, 3/8in
RPTS-1KEY8-1
— Hydraulic Lower Guide Bearing Lock Washer RPTS-1KEY15-2
1
Hydraulic Clamp Rod Assembly (Complete) (2 required per Testing
Screen) includes all clamp rod and hydraulic cylinder assembly parts
2
Hydraulic Cylinder Assembly (Complete) parts only
Hydraulic Hoses and Fittings
NOTE: Hoses and ttings are serial number-specic. Specify unit serial number
when ordering�
Description Part Number # Req.
Hydraulic Hose Kit (20in Hose (Qty 2)), Hose
Clip, Screw, Fitting
RPTS-1HOSE 1 Each
HYDRAULIC HOSE PARTS
Hydraulic Hose, 20in RPTS-HOSE1 1
Hose Clip and Screw RPTS-HOSE3 1
Hose Fitting Only RPTS-HOSE4 1
12
10
11
13
8
14
16
1
2
3
4
5
6
7
9
15
