23

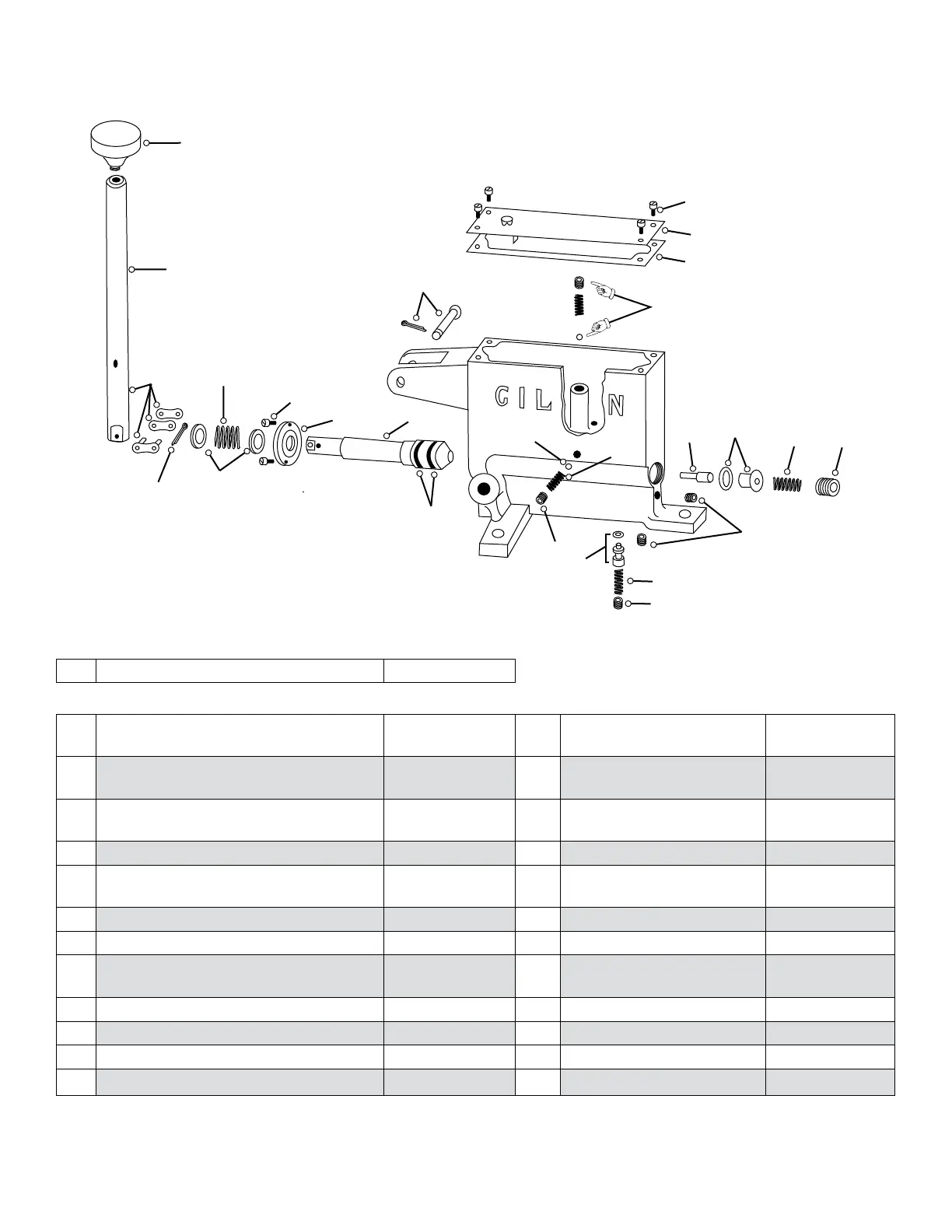

Hydraulic Pump
1
2
4
3
5
4
6
7
8
9
10
11
13
12
14
16
15
17
20
21
19
18
DO NOT Remove or Adjust
22
23
24
Description Part Number
— Hydraulic Pump Assembly (Complete) RPTS-PUMP
1
HYDRAULIC PUMP PARTS
1 Pump Handle Knob RPTS-1KEY17 13
Intake Check Plug, 1/8in (in
pump body)
RPTS-1KEY42
2 Pump Handle RPTS-1KEY18 14
Pressure Check Thrust Pin
with O-ring
RPTS-1KEY45
3 Pump Handle Connecting Link RPTS-1KEY19 15
Pressure Check Plug, 1/8in
(in pump body)
RPTS-1KEY40
4 Retainer Pin for Pump Handle Spring RPTS-1KEY26 16 Pressure Check Spring RPTS-1KEY41
5 Stroke Limiting Spring RPTS-1KEY20 17
Port Plug, 1/8in (in pump
body)
RPTS-1KEY39
6 Stroke Limiting Washer RPTS-1KEY21 18 Pressure Relief Plug, 3/8in RPTS-1KEY35
7 Plunger Guide Screw RPTS-1KEY29 19 Pressure Relief Spring RPTS-1KEY36
8
Plunger Guide and Seal
Plunger Seal Only
RPTS-1KEY22
RPTS-1KEY22-1
20
Pressure Relieft Thrust Pin
with O-ring
RPTS-1KEY37
9 Plunger RPTS-1KEY24 21 Pressure Relief Pin RPTS-1KEY38
10 Plunger O-ring RPTS-1KEY25 22 Pump Cover Gasket RPTS-1KEY30
11 Intake Check Ball RPTS-1KEY44 23 Pump Cover Assembly RPTS-1KEY28
12 Intake Check Spring RPTS-1KEY43 24 Pump Cover Screw RPTS-1KEY29
1
Assembly (Complete) includes all hydraulic pump parts
