Gilson TS-3 - Driving Parts

26
Driving Parts
NOTE: Pulleys originally supplied with units before serial # 2287 are listed as “special.”
Several sizes of pulleys and V-belts are currently in use� Specify serial number, belt length, and pulley
OD when ordering�
1
2
3
4
Description Part Number
Drive Pulley, 5 3/4in OD (serial # 5819 and after) RPTS-DP1
Drive Pulley, 5in OD (serial # 2288 through 5818) RPTS-DP2
Drive Pulley, 8in OD (through serial # 2287 (Special)) RPTS-DP3
Drive Pulley, 6in OD, 1 7/16in (50Hz) RPTS-DP4
Motor Pulley, 2in OD RPTS-DP5
Motor Pulley, 2�5in OD 5/8in (50Hz) RPTS-DP6
Key, Motor Pulley RPTS-1DP5-1
Grease Fitting RPTS-DPGF1
V-belt, 30in RPTS-DP7
V-belt, 29in RPTS-DP8
V-belt, 35in RPTS-DP9
V-belt, 31in (50Hz) RPTS-DP10
On/O󰀨 Switch with Overload RPTS-NDP1
Box for Switch RPTS-NDP1-1
Cord with Plug RPTS-NDP4
Start Switch, Standard 1-Phase RPTS-DP11
Motor, 1/2 HP, 115V/60Hz, 1-Phase RPTS-DP12
Motor, 1/2 HP, 230V/50Hz RPTS-NM230
Motor Mounting Bolts and Washers RPTS-MOTOR BOLT

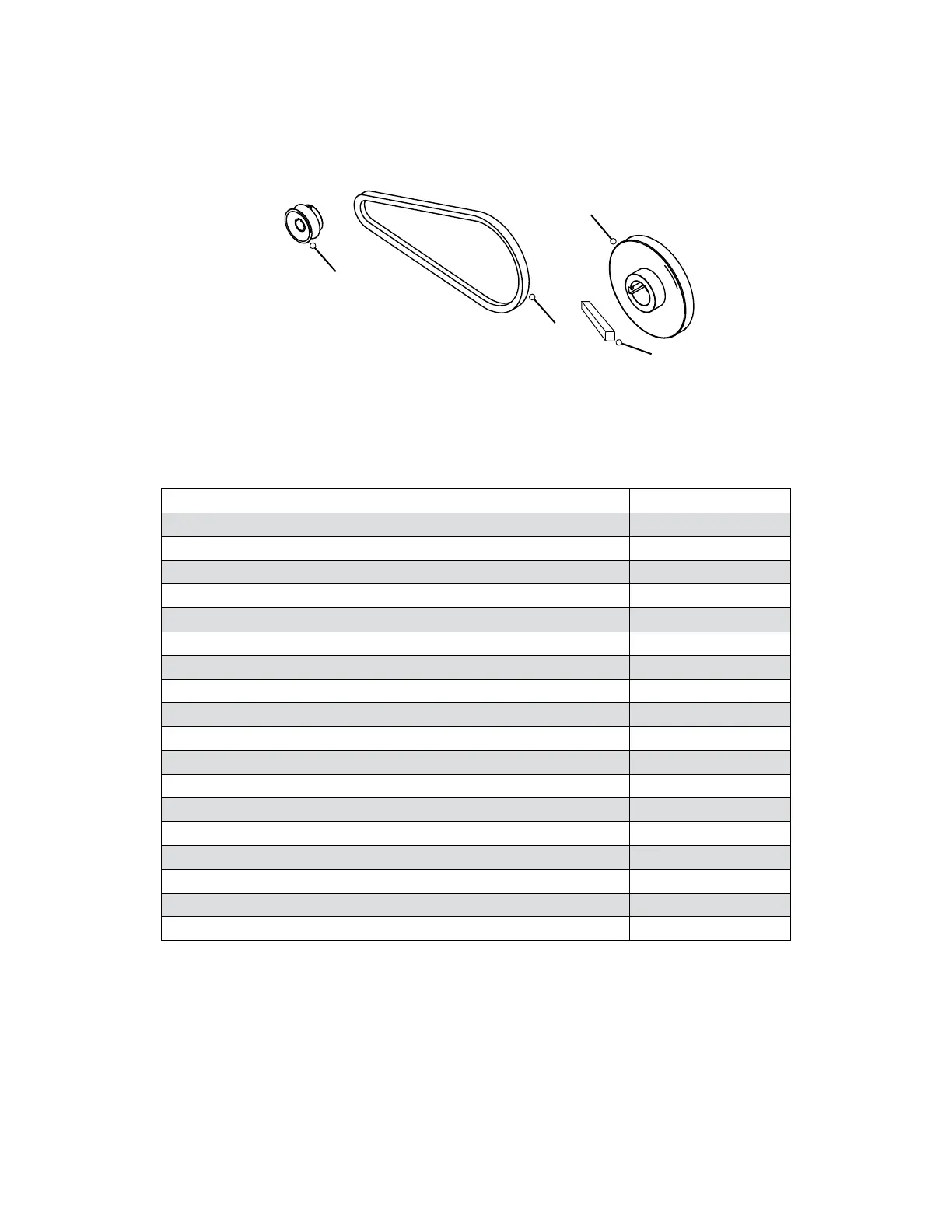

1 — Motor Pulley
2 — V-belt
3 — Drive Pulley
4 — Key, Motor Pully
NOTE:
RPTS-NDP1-Gold is for newer models with gold motor
RPTS-NDP1 is for older models with gray motor
