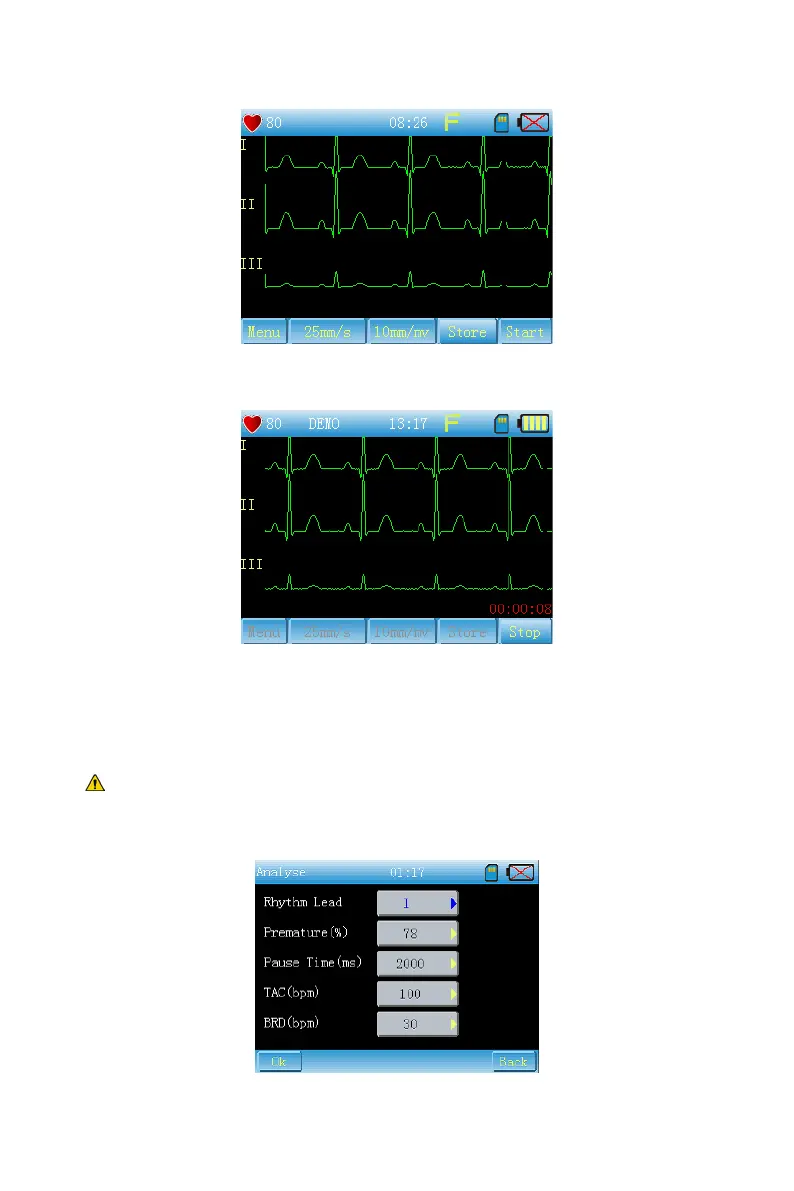

Store: in this mode case can be saved but can't be printed. The interface is shown s Fig.7-18
Fig. 7-18
Click "Start", system starts to save case. In the process of that, the interface is shown as Fig.7-19.
Fig.7-19
2. Other settings are same as system setting.
Auto strip:
The automatic print length of each strip can be set to 3s, 6s, 10s, 12s, 15s and 20s. If it is set to
3s or 6s, the auto analysis function is unable to use due to the sampling time is too short.
Attention: "Auto strip" is defaulted as 3s and can't be changed when there is no SD card.
7.6 Analyse Setting
The interface is shown as Fig.7-20.
Fig. 7-20
