Gima OXY-4 User Manual

26
4. OPERATION
4.1 Start Measurement
1. Open the clip as shown in Figure 3.
2. Put nger into the rubber cushions of the clip (make sure the nger is
in the correct position), and then clip the nger.
3. The device will power on automatically in 2 seconds, and start to dis-
play software version number.
4. Next enter into data display screen (as shown in Figure 4). The user
can read the values and view the waveform from display screen.

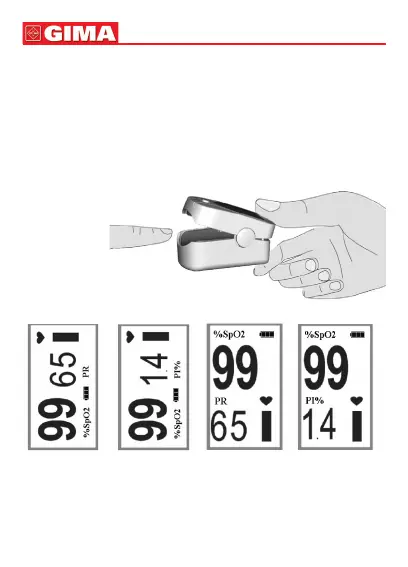

Figure 3 Put nger into the Oximeter
Figure 4 A1 Figure 4 A2 Figure 4 B1 Figure 4 B2
ENGLISH

Gima OXY-4 Specifications

General

Display	LCD
Product color	Blue
Pulse rate measurement range	30 - 240 bpm
Oxygen saturation measurement range	35 - 99 %
Battery type	AAA
Battery voltage	1.5 V
Power source type	Battery
Number of batteries supported	2

Weight and Dimensions

Depth	36 mm
Width	66 mm
Height	33 mm
