GIRBAU HS-6032 - 4.5. Manual modification

Technical specifications 18
Cod.nº 429043
Rev. No. 21/0519
Legend

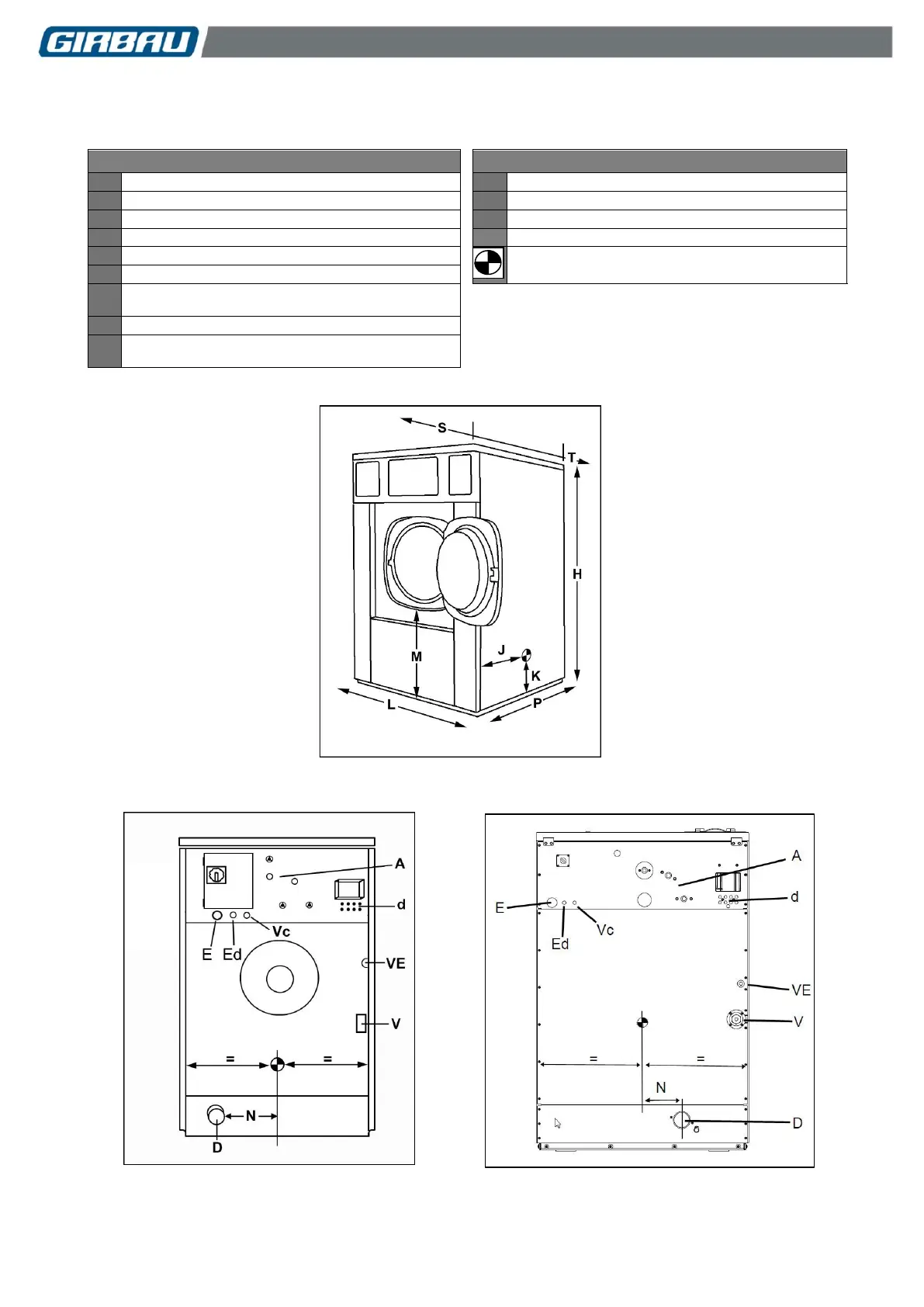

CONNECTIONS DIMENSIONS (Figures 1, 2 & 3)
A
Water supply
H
Height from the machine base
D
Drain
N
Distance from the centre of symmetry of the unit
E
Electrical connection inlet
P
Depth
Ed
Electrical connection inlet external dosing
M
Height to door bottom
d
Product inlets external dosing
Gravity centre (GC)
V
Steam inlet connection
Vc
Vending connection inlet (not applicable to
USA/CANADA models)
* 1
INTELI CONTROL: option 3 x 3/4 in
* 2
Origin of the external dosing signal to the washer 1A
maximum current
Fig. 1.1
HS-6013/17/23 / EH030/040/055
HS-6024/28/32 / EH060/070/080
Fig. 1.2
Fig. 1.3
