2.5. Installing more than one washer
If the installation calls for more than one washer, align them with each other.

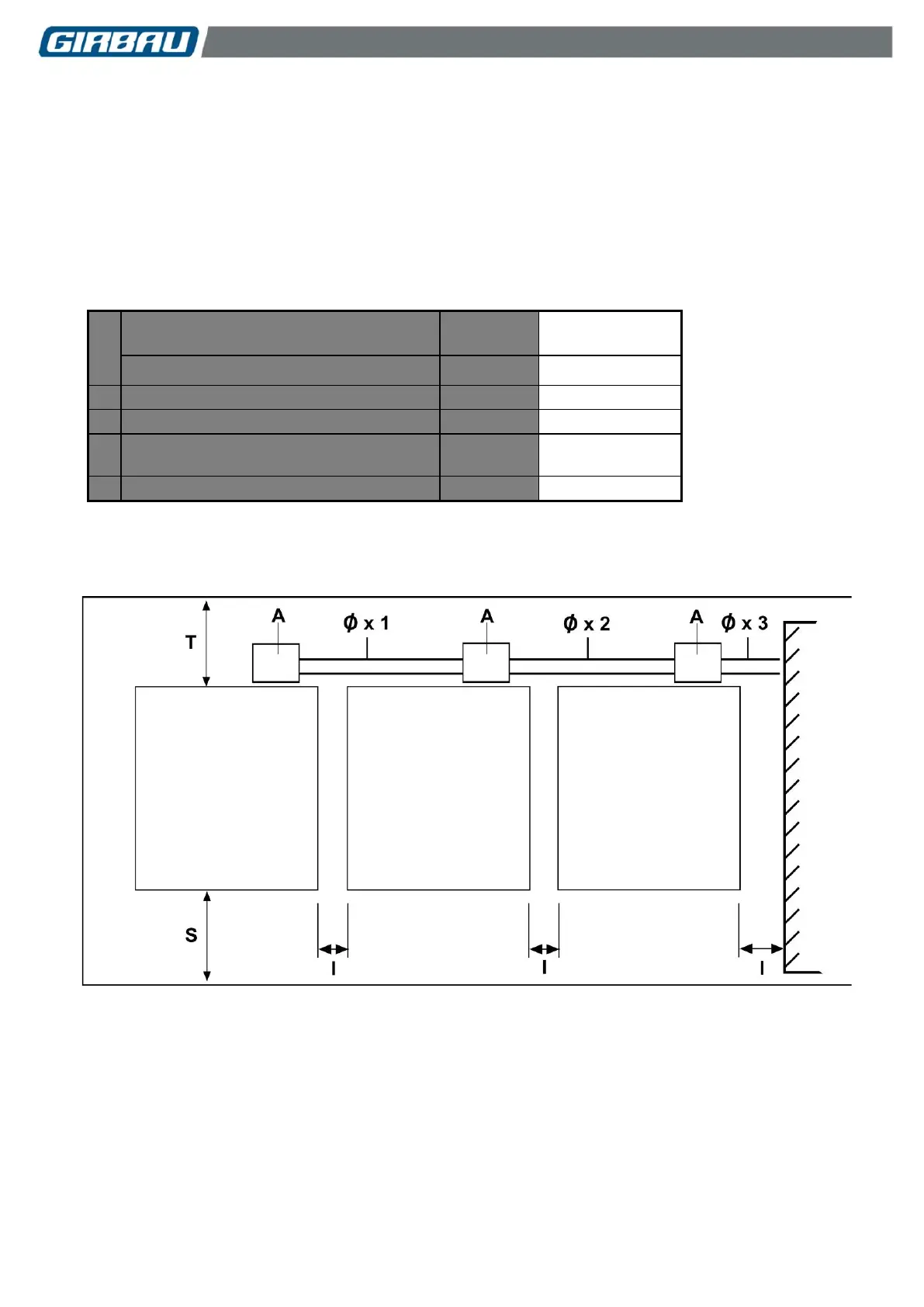

The minimum distance between adjacent machines and the user and maintenance areas (values I, S and T
of Figure 2.3) are specified on the table below.
Check the dimensions of the drain box and the drain pipe on the table below.
Positioning conditions (Fig. 2.3)
I
DISTANCE BETWEEN MACHINES
(RECOMMENDED)
(Commercial and Industrial laundries)
mm (in) 100 - 250 (4 - 10)
DISTANCE BETWEEN MACHINES (MINIMUM)
(Coin-op laundries)
mm (in) 10 (0.4)
S
WORKING AREA mm (in) 1000 (39.4)
T
REAR MAINTENANCE AREA (*1) mm (in) 500 (19.7)
A
DRAIN BOX
mm
in
300 x 300 x 250 (H)
12” x 12” x 10” (H)
∅
DRAIN PIPE (
∅
x1;
∅
x2;
∅
x3)
∅
mm (in)
100; 150; 180 (4; 6; 7)
*1. Double drain kit washers: figure T must measure 600 mm (23.6 inch) minimum
