2.6. Removal of shipping braces
DO NOT REMOVE THE SHIPPING RESTRAINTS BEFORE PLACING THE WASHER IN ITS
DEFINITIVE POSITION.
NEVER START THE MACHINE UP WITHOUT FIRST REMOVING THE SHIPPING RESTRAINTS.
INCOMPLIANCE WITH THIS PRECAUTION MAY CAUSE SERIOUS PHYSICAL DAMAGES TO
PEOPLE AND IRREPARABLE DAMAGES TO THE WASHER. THE WARRANTY DOES NOT COVER
THIS INCIDENCE.
2.6.1. HS-6013, HS-6017, HS-6024, HS-6028, HS-6032, EH030, EH040, EH060, EH070, EH080 models
Steps to follow (Fig. 2.4 and 2.5).
• Disassemble the lower cover A, by removing screws B.
• Remove the two yellow pieces C by removing screws D.
• Assemble the lower cover and fasten the toe plate (if any) with screws B.
• Disassemble the centre rear cover
• Remove the two yellow pieces E by removing screws F.
• On machines with steam heating, cut the fastening clip of the solenoid valve coil; pull back the coil
towards the machine exterior and fasten the coupling for the electrical installation to cut out VE on the
rear cover (refer Fig. 1.2).
• Assemble the rear cover and secure with the corresponding screws.
• Save the shipping braces. If the washer ever needs to be moved to another location, replace the
transport system reversing the steps described in this section.

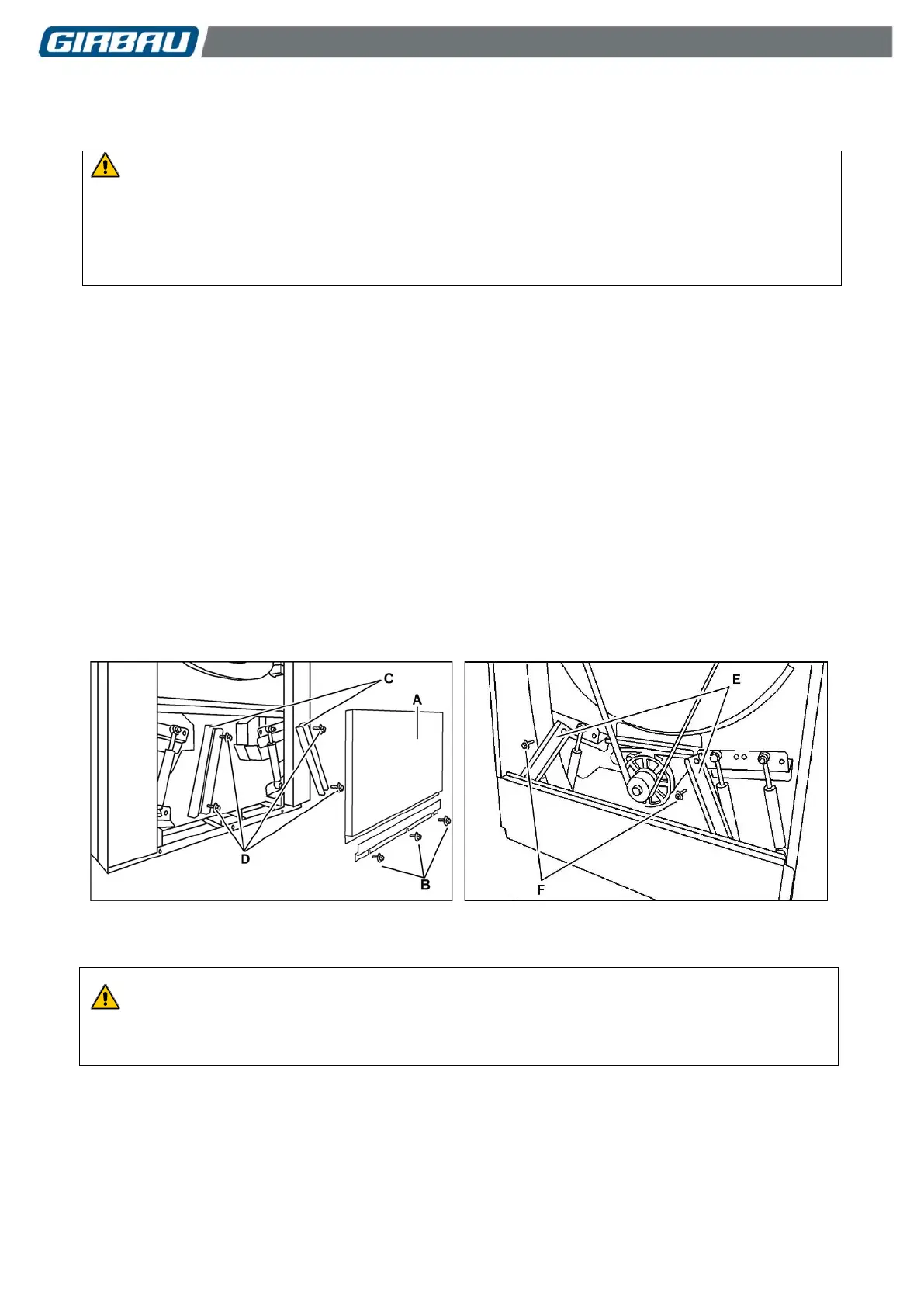

Fig. 2.4 Fig. 2.5
CAUTION!
The rubber profile is a protection against cutting and catching. Check that it is properly
fixed on the
front cover and side covers.
