3.3.4. Transformer connection. Configuring the machine voltage
HS-6013/HS-6017 models
• Disconnect and mechanically lock the external automatic switch.

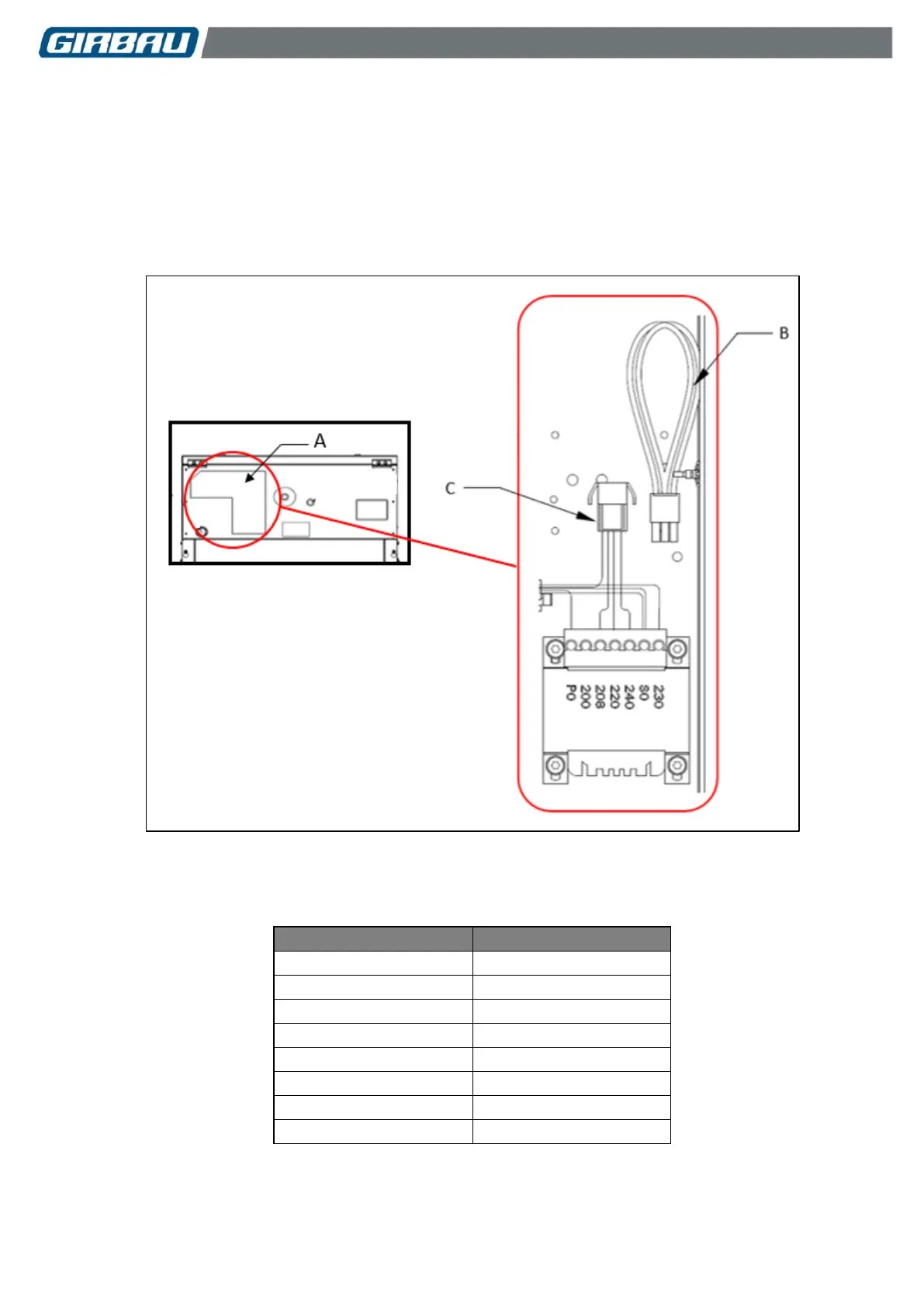

• Remove the support cover (A) from the junction box located on the rear panel (Fig. 3.8).
• Connect the voltage selector (B) onto the transformer connector (C) in accordance with the power supply
and with the accompanying table (Table 1).
Fig. 3.8
Table 1
Mains voltage:
Selector B
200V
200V-208V
208V
200V-208V
220V
220V-230V-240V
230V
220V-230V-240V
240V
220V-230V-240V
380V
380V
400V
400V-415V
415V
400V-415V
