5.2 Manual operation mode
1
1
1
1
Slide switches for manual light
operation

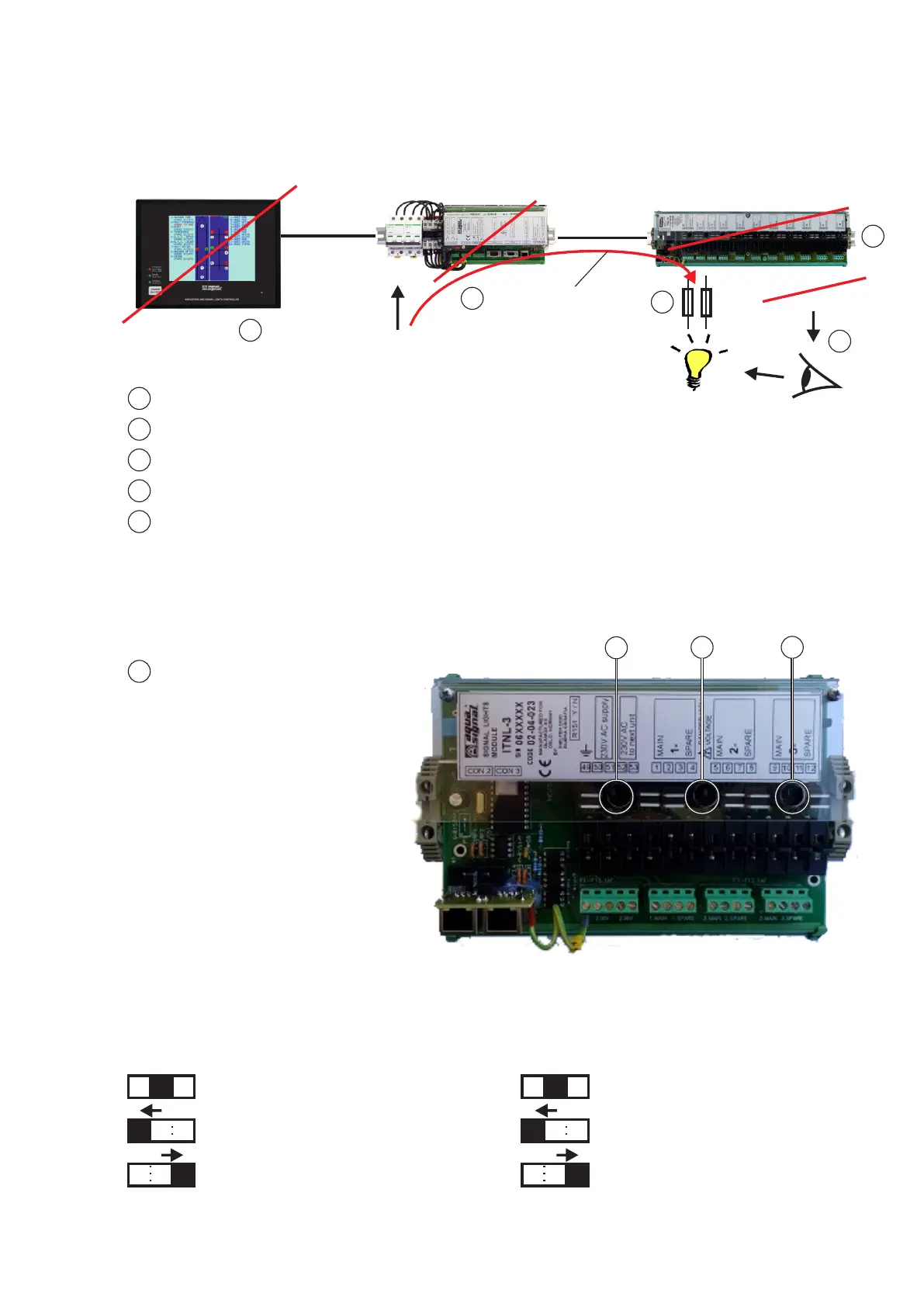

Manual operation mode enables user to manualy turn on/off lights in case of emergency. Lights can be turn
on/off by slide switches on the input modules. In case of manual operation power supply will be directly
forwarded to lights bypassing all electronics. Fuses will remain in circuit.
POWER SUPPLY
MANUAL
OPERATION
CONTROL
1
4
2
3
5
1
2
3
4
5
Switches for manual operation are located on input modules
Power supply is directly forwarded to input modules
Fuses will remain in circuit (Lights remain individually fused)
Lights are not controlled and their operation needs to be visually checked
Navigation lights controller can not control manual operated light
IMPORTANT!
There is 230VAC on PCB. For manual operation use isolated screwdriver.
ITNL input module ITSL input module
MAIN light turned ON
SPARE light turned ON
light turned ON
light turned OFF
OFF / AUTOMATIC OPERATION
ALL OFF / AUTOMATIC OPERATION
2. Slide switches in one direction for
manual operation of light.
NOTE!
In switch position ALL OFF/
AUTOMATIC OPERATION light can
be either turned on or turned off
depending on current setting on
main unit.
27
