#2 - GLIDECAM 2000 PRO
PARTS AND COMPONENTS

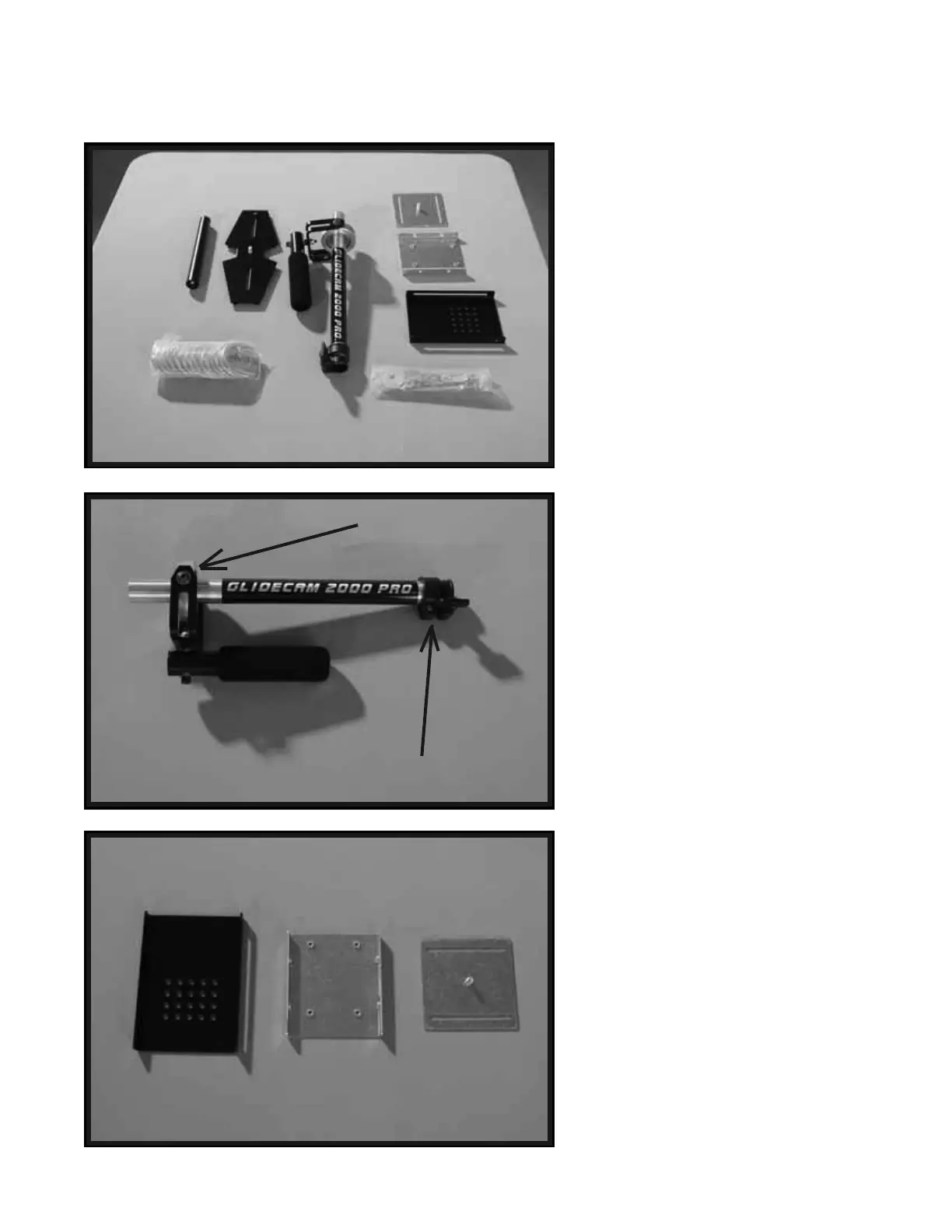

Congratulations on your purchase of a
Glidecam 2000 Pro. When you unpack your
Glidecam 2000 Pro you will see that it is
not completely assembled. Contents of the
Glidecam 2000 Pro shipping box include;
the MANUAL, CENTRAL POST with
gimbal assembly, HEAD PLATE, MID
PLATE, BOTTOM PLATE, BASE
PLATFORM, TELESCOPING POST,
HARDWARE bag, and COUNTER
WEIGHT DISKS.
TOOLS NEEDED: You will need both
Standard and Phillips Head Screwdrivers
(not included).
This is the Glidecam 2000 Pro
CENTRAL POST with attached gimbal
assembly. *** The Glidecam 4000 Pro
has a longer CENTRAL POST.
Warning – Do not adjust or tighten the
factory settings on the gimbal, handle,
and yoke. These parts should remain
loose and move freely, just as they are
shipped to you.
These are the pieces that makeup the
HEAD ASSEMBLY of the Glidecam
2000 Pro.
1) HEAD PLATE (shown left)
2) MID PLATE (shown center)
3) BOTTOM PLATE (shown right)
2
1
3
TELESCOPING CLAMP
GIMBAL ASSEMBLY
