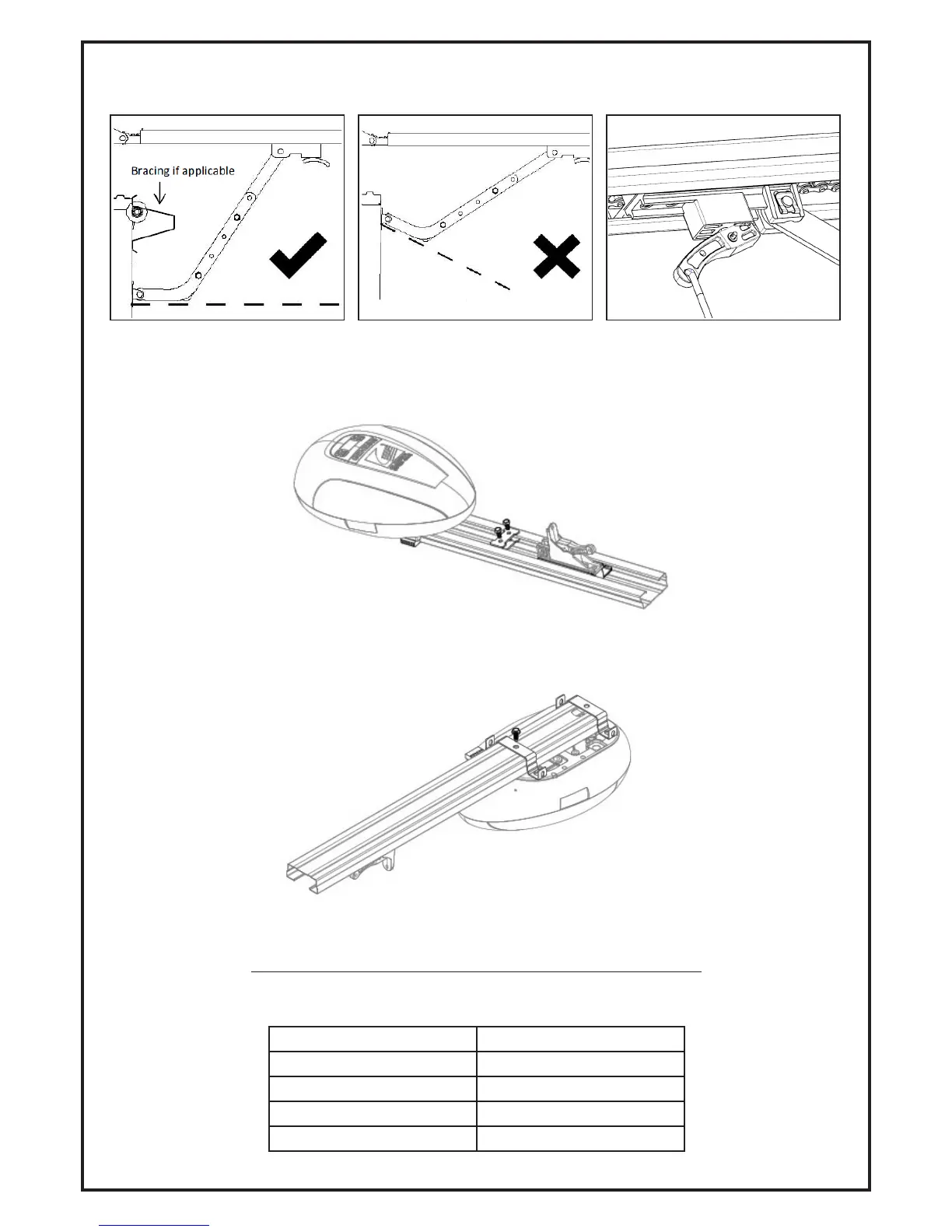

Use the below examples as a guide when positioning you door hinge and J-arm. Ensure J-arm does not
touch bracing etc during normal operation. Attach manual release cord to complete installation.
Once installed, prior to configurating your opener attach the stopping mechanism as shown below with
your door in the fully opened position (refer below). This will avoid the carriage overrunning during limit
and force settings.
Using screw M6.3*20 fix the track with motor head through the U shaped buckle for added strength to
ensure the mechanism doesn’t move.
4.0 Opener Programming
4.1 Program Reference Table
Program Name Program Display Code
Door Travel Limits P1
Force Settings P2
Photo Beam Settings P3
Auto Close Function P4
