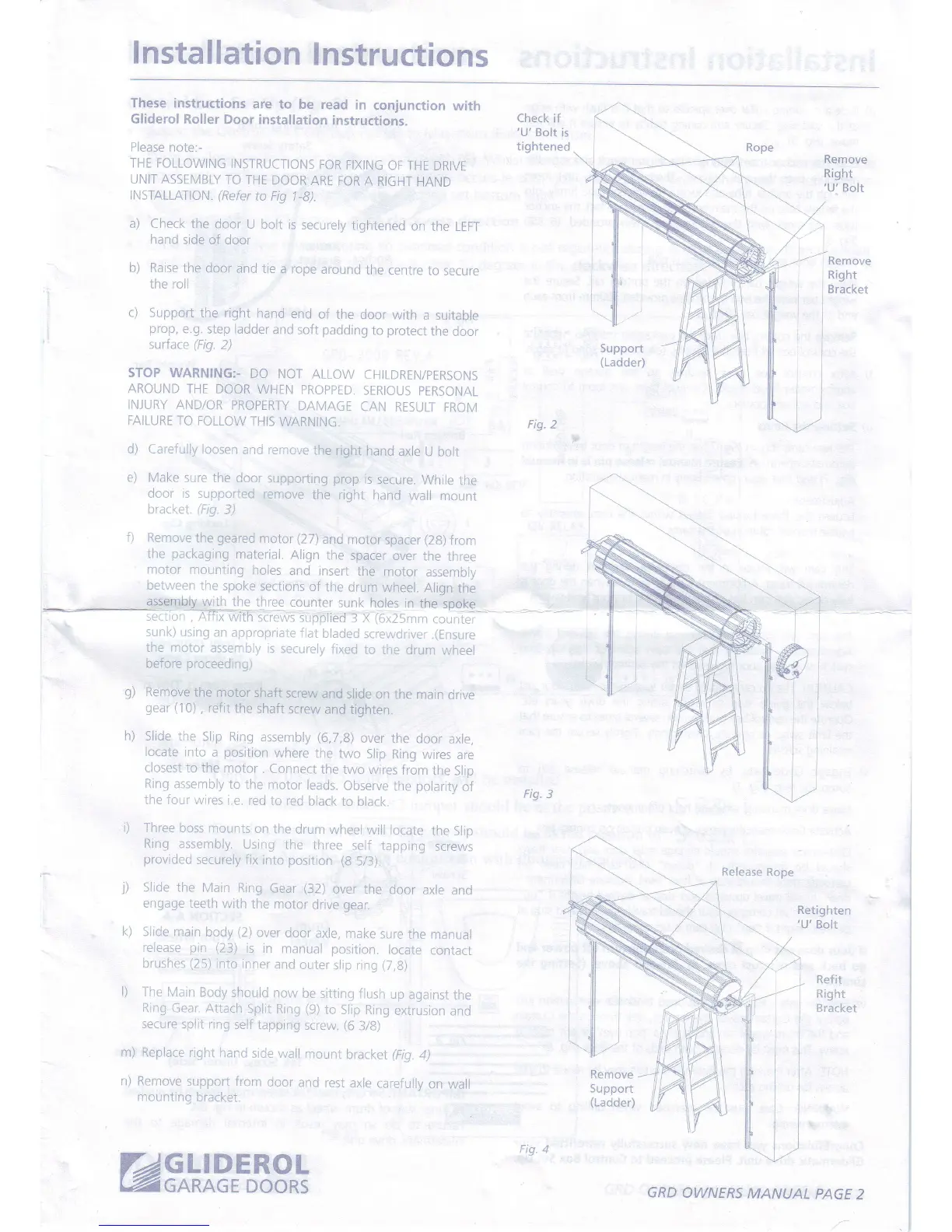

Installation
Instructions
These
instructions
are to
be read
in
conjunction
with
Gliderol
Roller
Door
installation
instructions.
Please
note:-
THE FOLLOWING
INSTRUCTIONS
FOR
FIXING
OF THE
DRIVE
UNIT ASSEMBLY
TO
THE DOOR
ARE
FOR
A RIGHT
HAND
INSTALLATION
.
(Refer
to Fig 1-8)
a) Check
the door
U bolt
is
securely
tiqhtened
on
the LEFT
hand
side of door
b) Raise the
door and
tie
a rope
around
the
centre
to secure
the roll
c) Support
the right
hand
end
of
the
door
wjth a
suitable
prop,
e.g. step ladder
and
soft
padding
to
protect
the
door
surface
(Fig
2)
STOP WARNING:-
DO
NOT
ALLOW
CHTLDREN/PERSONS
AROUND
THE DOOR
WHEN
PROPPED.
SERIOUS
PERSONAL
INJURY
AND/OR
PROPERTY
DAMAGE
CAN
RESULT
FROM
FAILURE
TO
FOLLOW
THIS
WARNING.
d) Carefully
loosen
and remove
the
right
hand
axle U
bolt
e) Make sure
the door
supporting
prop
is
secure.
While
the
door is supported
remove
the
right
hand
wall
mount
bracket.
(Fig
3)
Check
if
'U'
Bolt
is
tightened
Fig.
2
Remove
Right
'U'
Bolt
Remove
Right
Bracket
Support
(Ladder)
f)
Remove
the
geared
motor
(27)
and motor
spacer
(2g)
from
the
packaging
material.
Align
the
spacer
over the
three
motor
mounting
holes
and
insert
the motor
assembly
between
the
spoke
sections
of the
drum wheel.
Alion
the
assembly
with
the three
counter
sunk
holes in
the
soore
i&L-rcnl-Affiffilih
scTeits
ilpptied
3 X
(6i25mm
counier
n/
sunk) using
an appropriate
flat
bladed
screwdriver
.(Ensure
the motor
assembly
is
securely
fixed
to the
drum
wheel
before
proceeding)
Remove
the
motor
shaft
screw
and
slide
on the
main
drive
gear
(1
0)
,
refit
the
shaft
screw
and
tighten.
Slide the
Slip Ring
assembly
(6,7,8)
over
the door
axre,
locate
into
a
position
where
the
two Slip
Ring
wires
are
closest to
the motor
.
Connect
the
two
wires
from
the Slip
Ring
assembly
to
the motor
leads.
Observe
the
polarity
of
E!^ 1
the four wires
i.e.
red
to red
black
to black.
rtg
J
Three boss
mounts
on
the
drum
wheel
will locate
the
Slip
Ring
assembly.
Using
the
three
self
tapping
screws
provided
securely
fix into
position (8
5/3).
Slide the
Main Ring
Gear
(32)
over the
door axle
and
engage teeth
with
the
motor
drive
qear.
j)
k)
Slide main
body
(2)
over door
axle,
make
sure
the manual
release
pin
(23)
is in
manual
position.
locate
contact
brushes
(25)
into
inner
and
ouier
slip ring
(7,8)
l)
The
Main Body
should
now
be sitting
flush
up
against
the
Ring
Gear. Attach
Split
Ring
(9)
to Slip Ring
extrusion
and
secure
split ring
self
tapping
screw.
(6
3/B)
m) Replace
right
hand
side wall
mount
bracket
(Fig.
a)
n) Remove
support from
door
and rest
axle
carefully
on wall
mounting
bracket.
-
__
-__^-:
s)
Remove
Support
(Ladder)
Release
Rope
Retighten
'U'
Bolt
Ref it
Right
j
e'ictet
GRD
OWNERS
MANUAL
PAGE
2
DGLIDEROL
L.ZGARAGE
DOORS
Fig. 4
