INSTALLATION GUIDELINES
Low Profi le Shelves

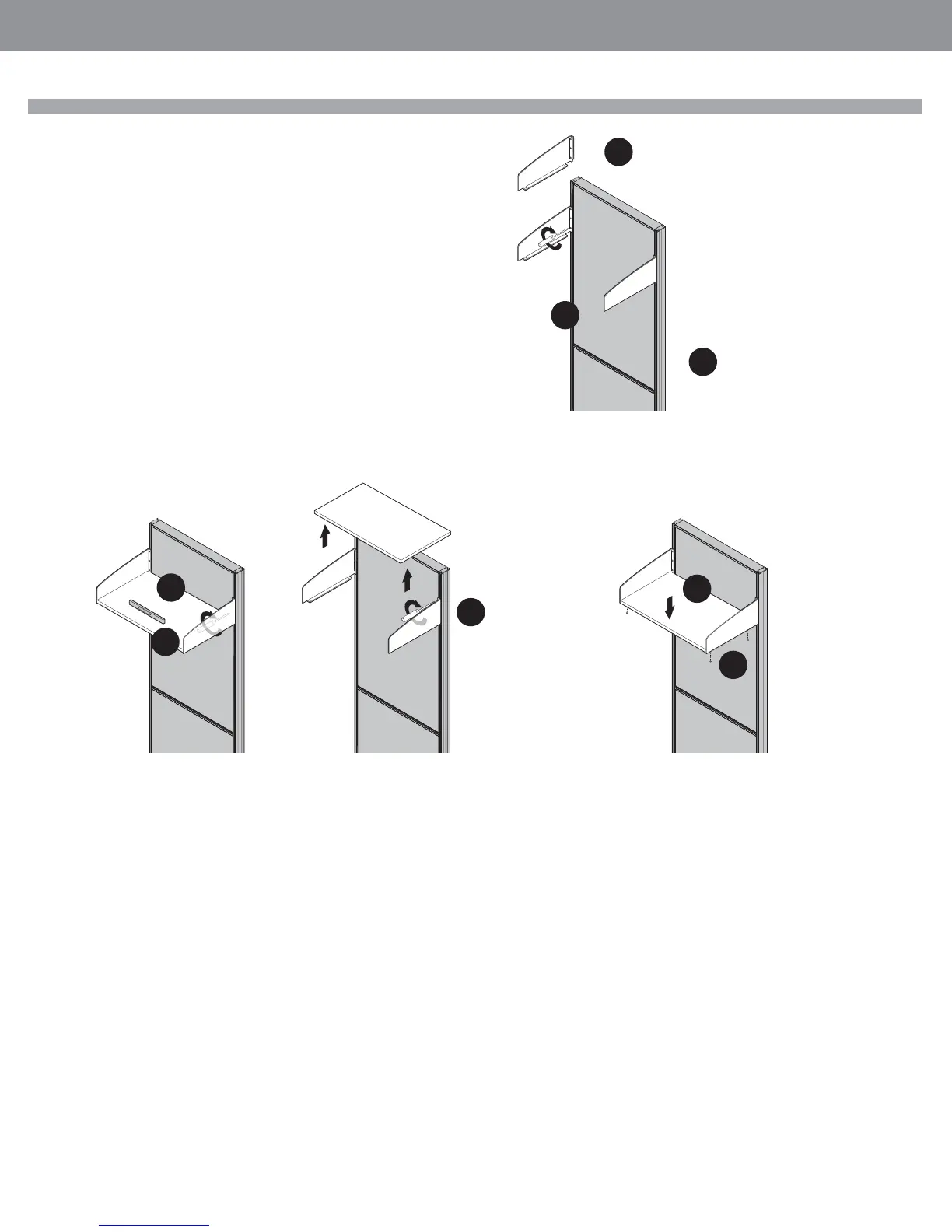

STEP 1: Slide Low Profi le side supports, with connection plate and screws at-
tached, into groove on side of panel.
STEP 2: Align bottom of Low Profi le side support with bottom of Overhead Stor-
age Cabinet, if applicable, use the supplied shelf gauge
STEP 3: Securely attach all screws using a #4 ALLEN BIT, or BALL TORX T25 BIT,
on one side only.
STEP 4: Securely attach ONE screw using a #4 ALLEN BIT, or BALL TORX T25
BIT, on second side only.
STEP 5: Place bottom shelf on top of bottom brackets.
STEP 6: Using a level, hold second shelf side, loosen screw. Align shelf side until level.
STEP 7: Remove bottom shelf and securely attach all cap nuts.
STEP 8: Replace bottom shelf on top of bottom brackets.
STEP 9: Securely attach all screws using a #2 Phillips bit.
1
2
3
5
6
7
8
9
