INSTALLATION GUIDELINES
Electrical - Power Distribution Harness and Duplexes
Electrical - Installing Through Corners

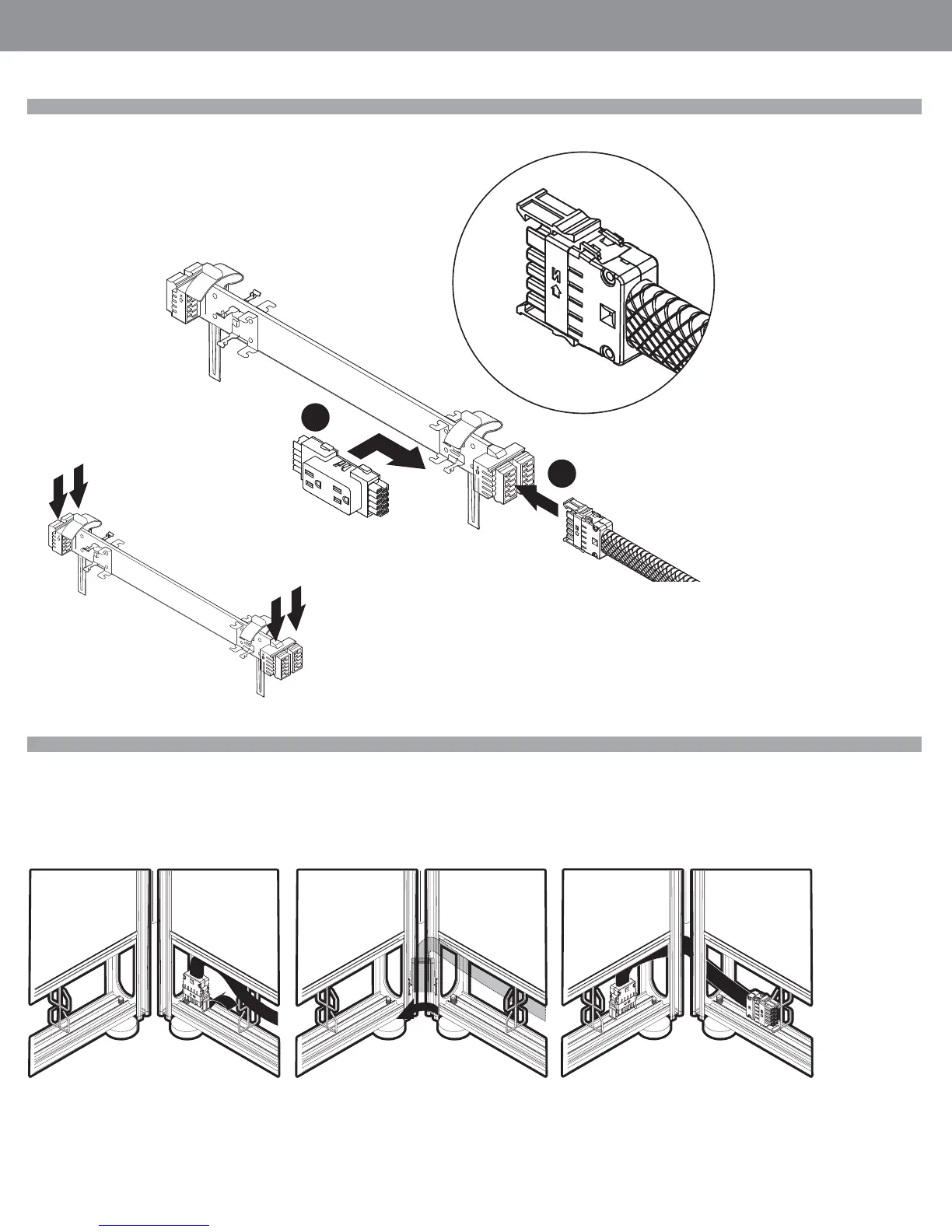

STEP 1: Plug Jumper into Power Distribution Harness, until it clicks fi rmly into place.
The arrow above the embossed “N”, should be pointing up.
STEP 2: Slide Duplex into place, until it clicks fi rmly into place.
Power Distribution Harness has two
ports on each side to plug in additional
Jumpers or Ceiling Feeds.
Installation Tip: When routing jumpers around corners, in a 2-way, 3-way or
4-way connection.
Bend connection of 17” fl exible Mesh Jumper downward, at a 90 degree angle.
Slide connector through opening and pass through openings in both panels.
Straighten connector.
1
2
