Section 4 Accessories
4-6
Multiple Socket-Outlet
The multiple socket outlet provided with the microscope system allows for attaching additional equipment to aid
in vision, lighting and documentation.
These outlets should only be used for supplying power to equipment that is intended to form part of the
medical equipment system: digital camera, video camera, Xenon Ultrasource LightSource, and TV
monitor. Please refer to International Standard IEC 60601-1:2005, Medical electrical equipment – Part 1:
General requirements for basic safety and essential performance, for the requirements that are applicable to a
medical equipment system.
The maximum permitted load for the microscope system is 240 VAC.
Multiple Socket
Outlet
!
WARNING
ONLY CONNECT ITEMS THAT GLOBAL SURGICAL HAS SPECIFIED AS BEING
COMPATIBLE WITH THE MICROSCOPE SYSTEM. CONNECTING EQUIPMENT
THAT IS NOT INTENDED FOR USE WITH THE MICROSCOPE SYSTEM TO THE
MULTIPLE SOCKET OUTLETS MAY RESULT IN INJURY AND/OR DAMAGE TO
THE MICROSCOPE SYSTEM.
!
WARNING
CONNECTING ELECTRICAL EQUIPMENT TO THE MULTIPLE SOCKET
OUTLETS EFFECTIVELY LEADS TO CREATING A MEDICAL EQUIPMENT
SYSTEM AND THE RESULT CAN BE A REDUCED LEVEL OF SAFETY.
!
WARNING
ADDITIONAL MULTIPLE SOCKET OUTLETS AND/OR EXTENSION CORDS
SHOULD NOT BE CONNECTED TO THE MICROSCOPE SYSTEM’S MULTIPLE
SOCKET OUTLETS.

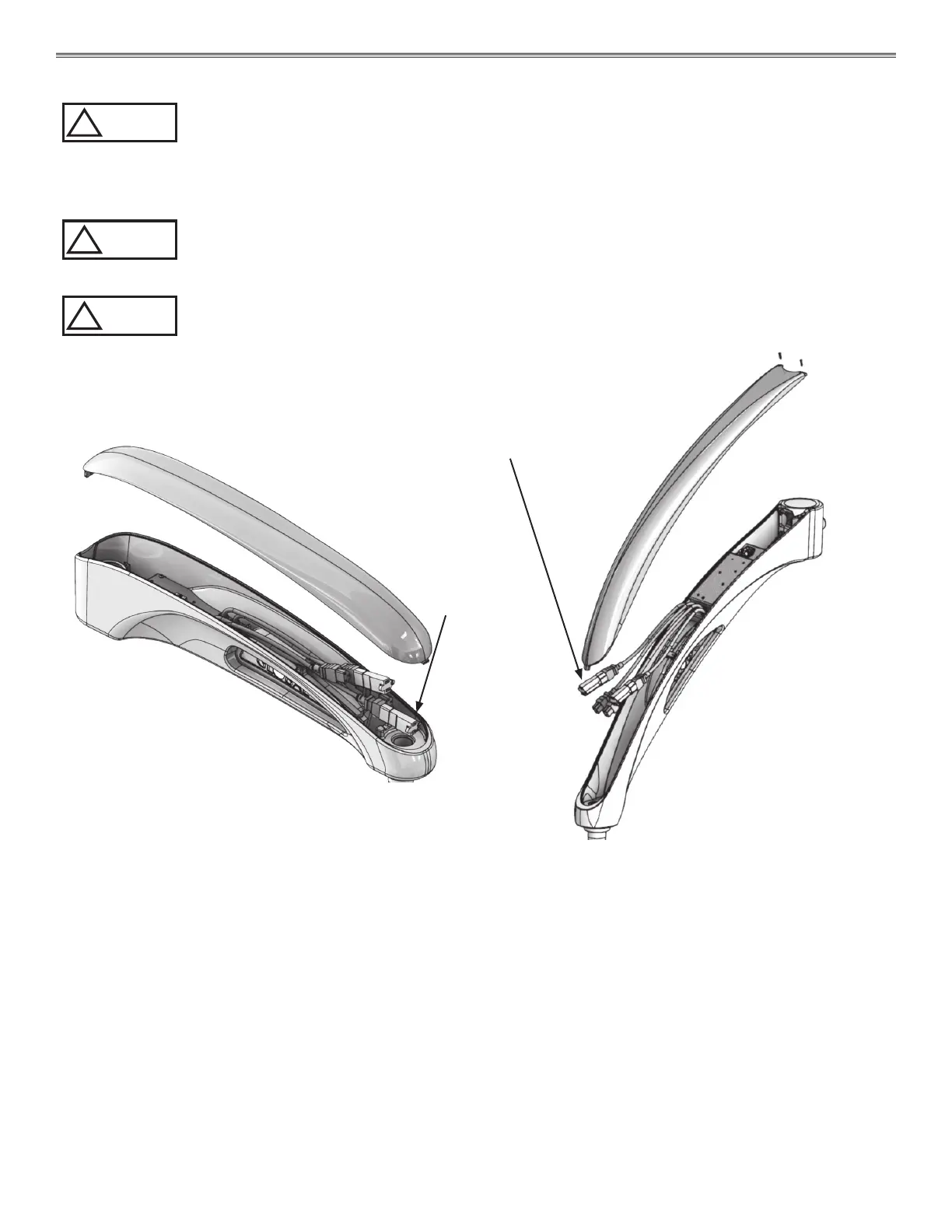

Figure 4-1 Multiple Socket Outlet
Fixed Horizontal Arm
45° Arm
Multiple Socket
Outlet
