8
221966B
1.8 Water System
This boiler may be fitted to an open vented or sealed water
system.
It is recommended that plastic pipes for primary pipework
should not be used for this boiler.
1.9 Drain
System
A draining tap must be provided at the lowest points of the
system which will allow the entire system, boiler and hot water
cylinder to be drained.
Draining taps should be to the current issue of BS2879.
Boiler
A draining point is fitted at the bottom right hand side of the heat
exchanger.
Cover controls to avoid water damage.
If required remove the combustion chamber front cover to
improve access.
1.10 Safety Valve
A safety valve need not be fitted to an open vented system.
1.11 Location
This boiler is not suitable for outdoor installation.
This boiler may be installed in any room, although particular
attention is drawn to the requirements of the current issue of
BS7671 with respect to the installation of a boiler in a room
containing a bath or shower. Any electrical switch or boiler
control utilising mains electricity should be placed so that it
cannot be touched by a person using the bath or shower. The
electrical provisions of the Building Standards (Scotland) apply
to such installations in Scotland.
The boiler must be mounted on a flat wall which is sufficiently
robust to take its total weight.
The boiler may be fitted to a wall made of combustible material.

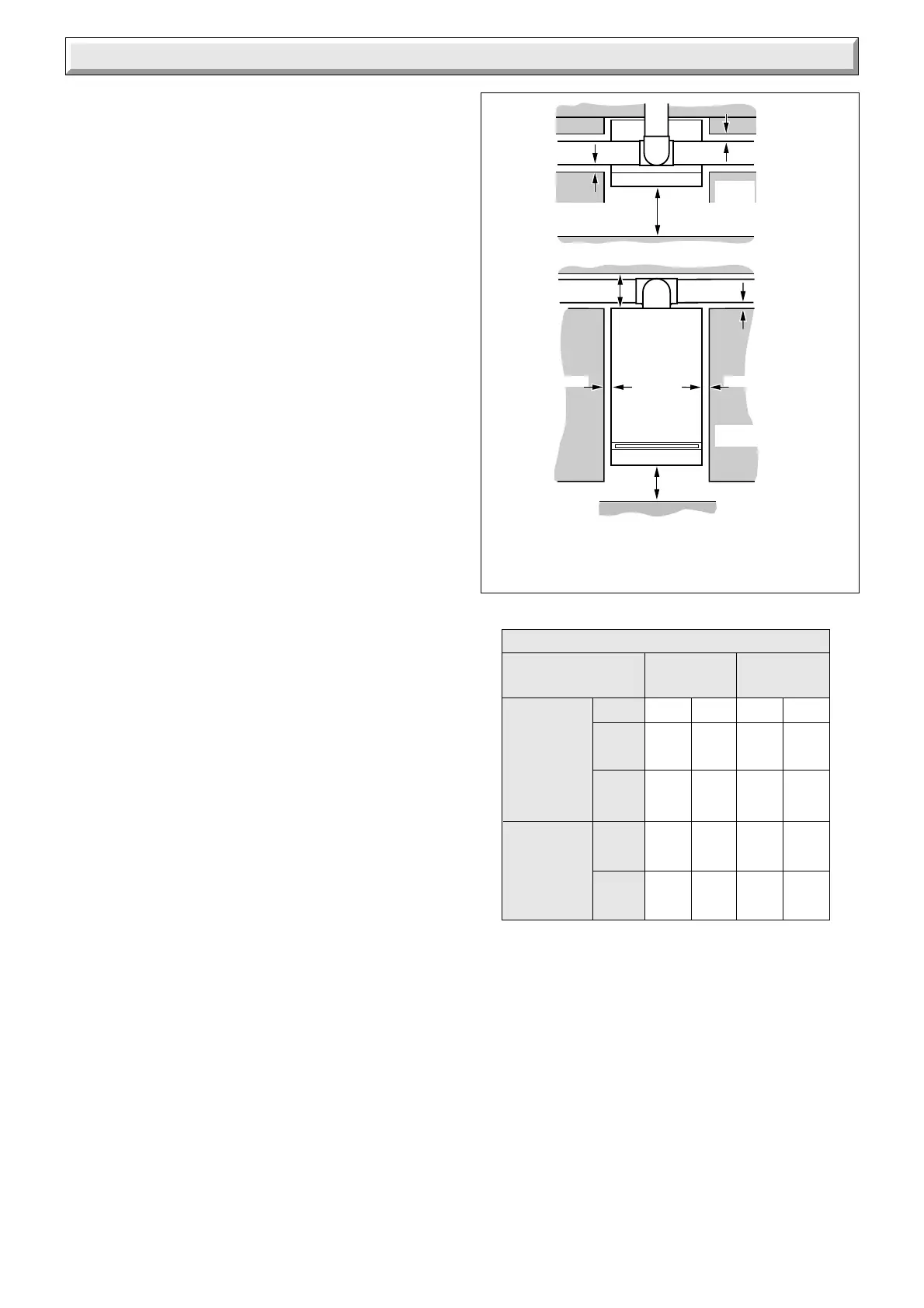

1.12 Boiler Clearances
Refer to diagram 1.2.
The boiler must be positioned so that at least the minimum
operational and servicing clearances are provided.
Additional clearances may be required for installation.
If fixtures are positioned next to the boiler they should be made
removable for access to pipework.
Sufficient clearance must be left in front of the boiler for
servicing.
1.13 Room Ventilation
The boiler is room sealed and does not require the room or
space containing it to have permanent airvents.
1.14 Boilers in a Compartment
Where the installation of the boiler will be in an unusual position,
special requirements are needed, the current issue of BS6798
gives detailed guidance on these requirements.
A compartment used to enclose the boiler must be designed
and constructed specifically for this purpose. An existing
cupboard or compartment modified for the purpose may be
used. Details of essential requirements for cupboard or
compartment design are given in the current issue of BS6798.
The doorway opening should be of sufficient size to allow for
easy removal of the boiler.
Where the boiler is fitted in a cupboard or compartment,
permanent high and low level ventilation must be provided. The
minimum ventilation areas are given in Table 3.
1.15 Timber Frame Building
If the boiler is to be installed in a timber frame building it should
be fitted in accordance with the Institute of Gas Engineers
document IGE/UP/7/1998. If in doubt seek advice from the local
gas undertaking or Hepworth Heating Ltd.
1.16 Heating System Controls
The heating system should have installed: a programmer and
room thermostat controlling the boiler.
Thermostatic radiator valves may be installed, however they
must not be fitted in a room where the room thermostat is
located.
Note: For further information, see The Building Regulations
1991 - Conservation of fuel and power, 1995 edition - Appendix
G, table 4b.
0208M
6mm
6mm
65mm
6mm
6mm
6mm
160mm
500mm
Additional clearances may be
required for installation
FRONT
VIEW
MINIMUM CLEARANCES FROM WALLS
CEILING, FLOOR, CUPBOARD, WORKTOPS,
AND INFLAMMABLE MATERIALS
PLAN
VIEW
TABLE 3. COMPARTMENT AIR VENTS
VENTILATION
REQUIREMENTS
VENTILATION
FROM
ROOM
OR SPACE
MODEL
VENTILATION
FROM
OUTSIDE
100FF
HIGH LEVEL
VENT AREA
LOW LEVEL
VENT AREA
100FF
330 51 330 51
396 61.5 396 61.5
cm
2
in
2
cm
2
in
2
120FF
120FF
165 25.5 165 25.5
198 30.5 198 30.5
0209M
Diagram 1.2
1 General
