GLP Impression Series - Mounting in sidewise Position

GLP  German Light Products GmbH instruction version 1.05 8
M10x16

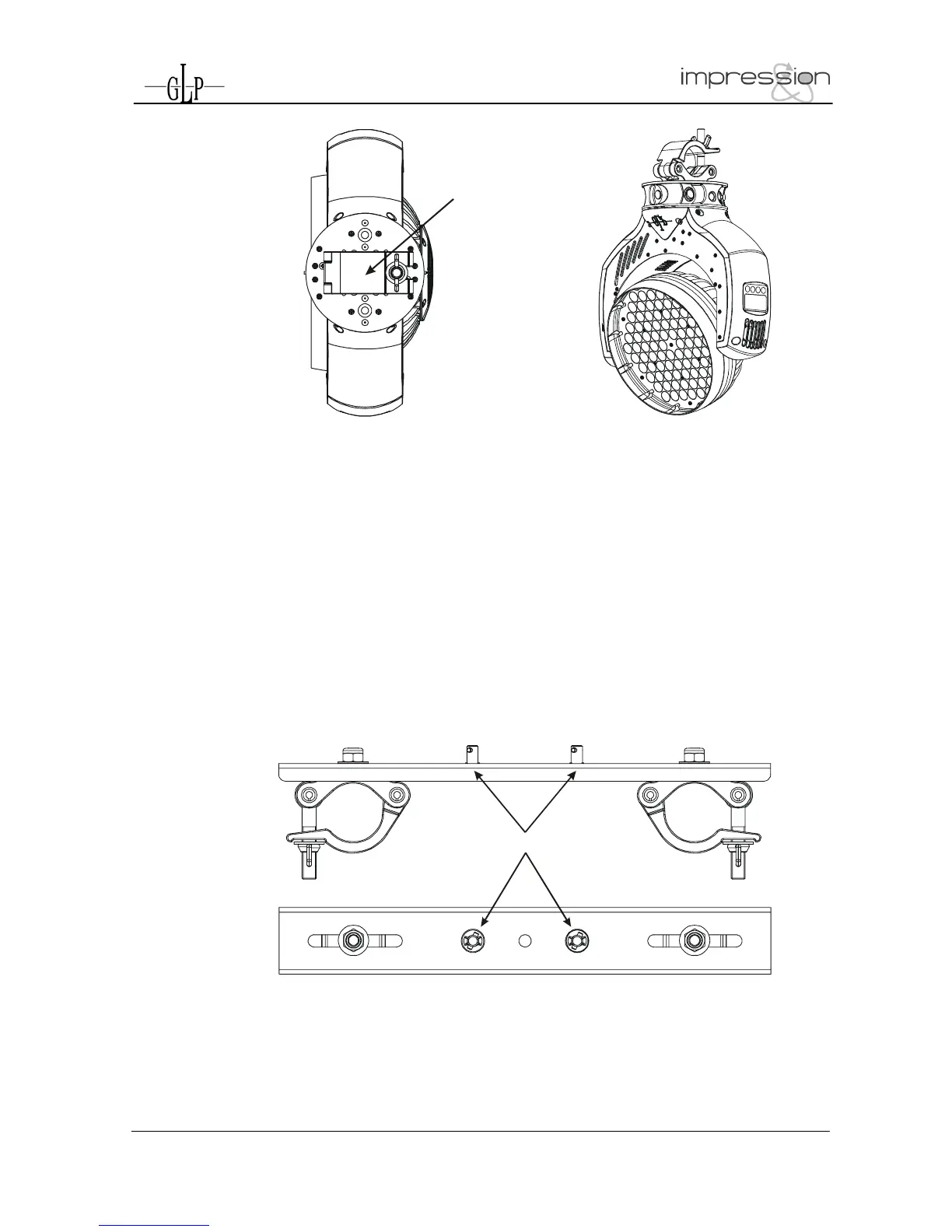

2.1.3 Mounting in sidewise Position
To operate the
I
I
M
M
P
P
R
R
E
E
S
S
S
S
I
I
O
O
N
N in a sidewise position, please use an
addition mounting bar. Also this is fixed by two Camlock quick-release
connectors. Two half-couplers (clamps) are now used to mount the
system to a standard truss bar. This technique is necessary to cope with
the torque which accrues in this mounting position. In addition it allows a
concentrically position between two truss belts. Never use the "Mounting
in hanging Position" technique described above to fasten the system in
the sidewise position. A safe and sound installation can not be assured
in this way. This can also damage the system base.
2x 90°
Half-coupler (clamp) 1 Half-coupler (clamp) 2
