User Manual
Powervortex 5200TL hybrid inverter
4.1.5.3 Setting Battery Type

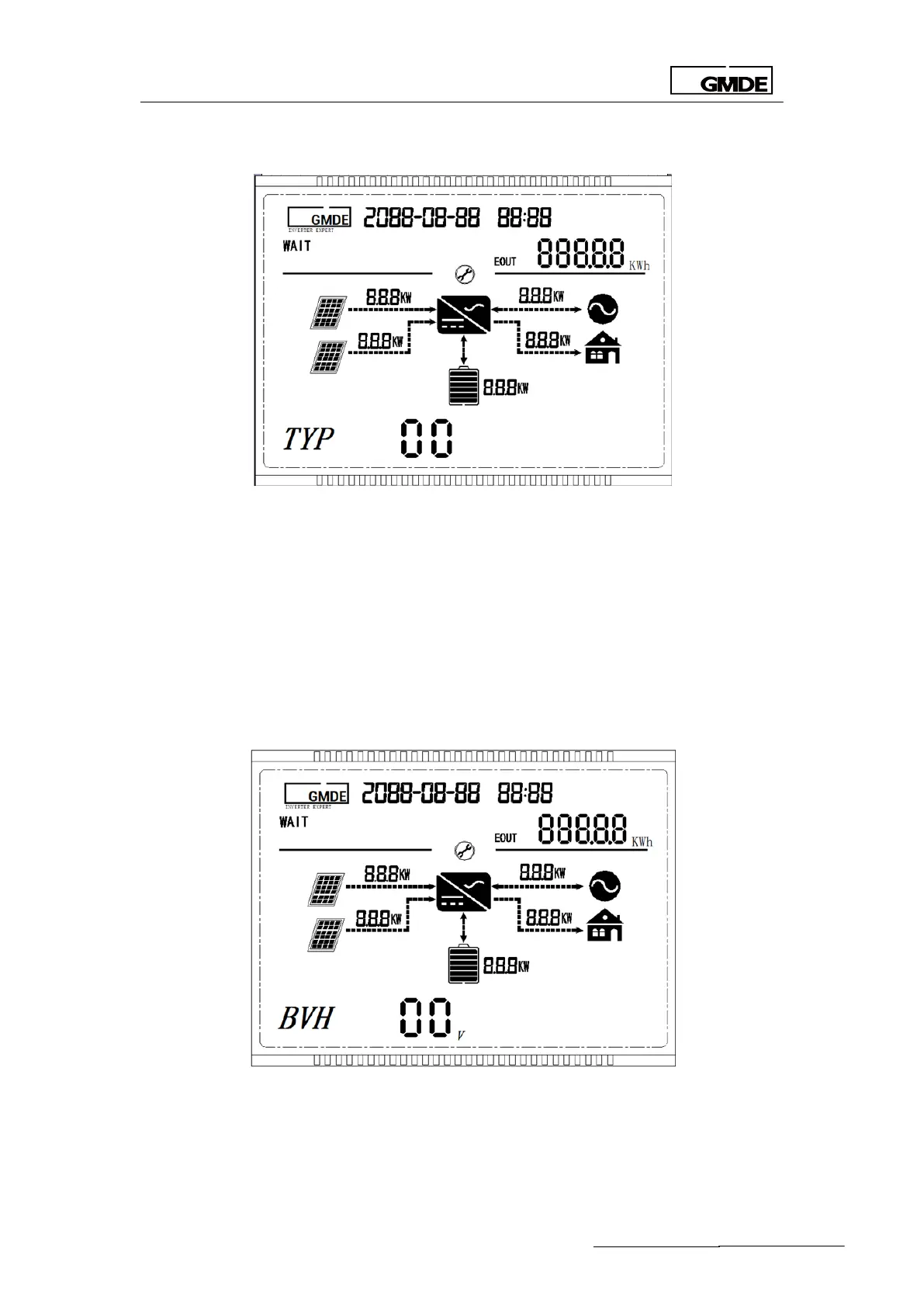

Figure 23 Battery type setting
TYP refers to battery type , 00 is referring to lithium battery; please set TYP as 01 when the battery
type is lead-acid.
The default battery type is lithium-ion, press ”OK” button and input the corresponding battery
type code to modify. Press “OK” to finish the setting and you will enter the setting interface as
shown in Figure .
4.1.5.4 Setting Battery Charging Cut-off Voltage
Figure 24 charging cut-off voltage setting
BVH refers to battery charging cut-off voltage. The BVH setting range is 40V-60V, the default
value is 54V.Please set the voltage according to the battery recommended value for different
