Global Mainstream Dynamic Energy Technology Ltd.
- 30 -
User Manual
Powervortex 5200TL hybrid inverter
Figure .
4.1.5.8 Setting Grid Certification Standards

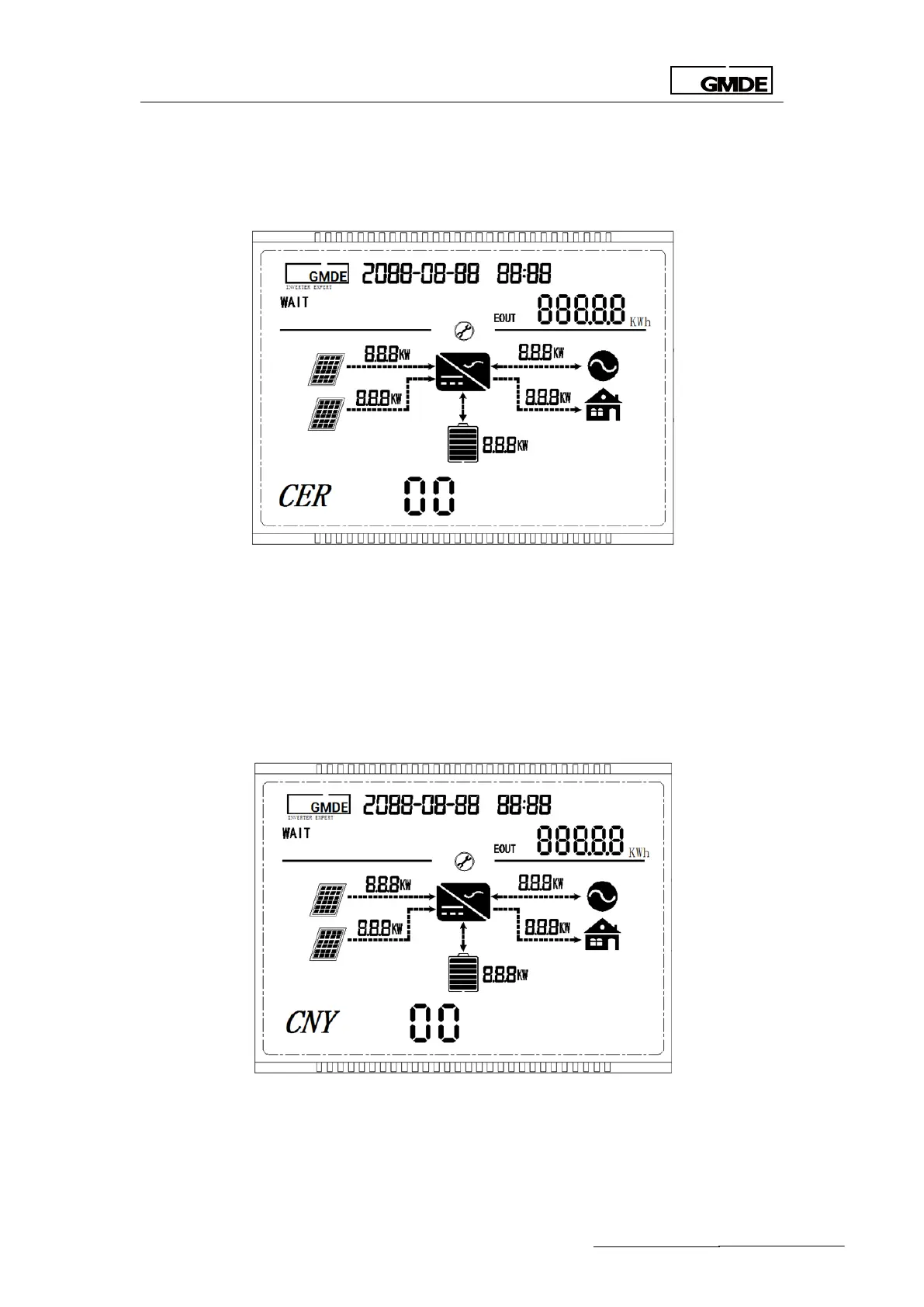

Figure 28 certification standards setting
CER refers to the grid regulation where this system is applied in. The CER codes mean: 00 refer to
comply with the AS4777 in Australia. Please finish this setting according to the local
grid-connection regulations. Press “OK” to finish this setting and you will enter the setting
interface as shown in Figure .
4.1.5.9 Setting PV String Connection Way
Figure 29 string connection way setting
CNY refers to the connection way of PV strings. The CNY should be set to 01 when Powervortex
4600TL / 5200TL only have PV1 port connected with PV string; the CNY should be set to 02 when
Powervortex 4600TL / 5200TL only have PV2 port connected with PV string; the CNY should be set
