GME CM1039 - Radio Installation; Fitting the Radio; Fitting MC513 BC Microphone

22



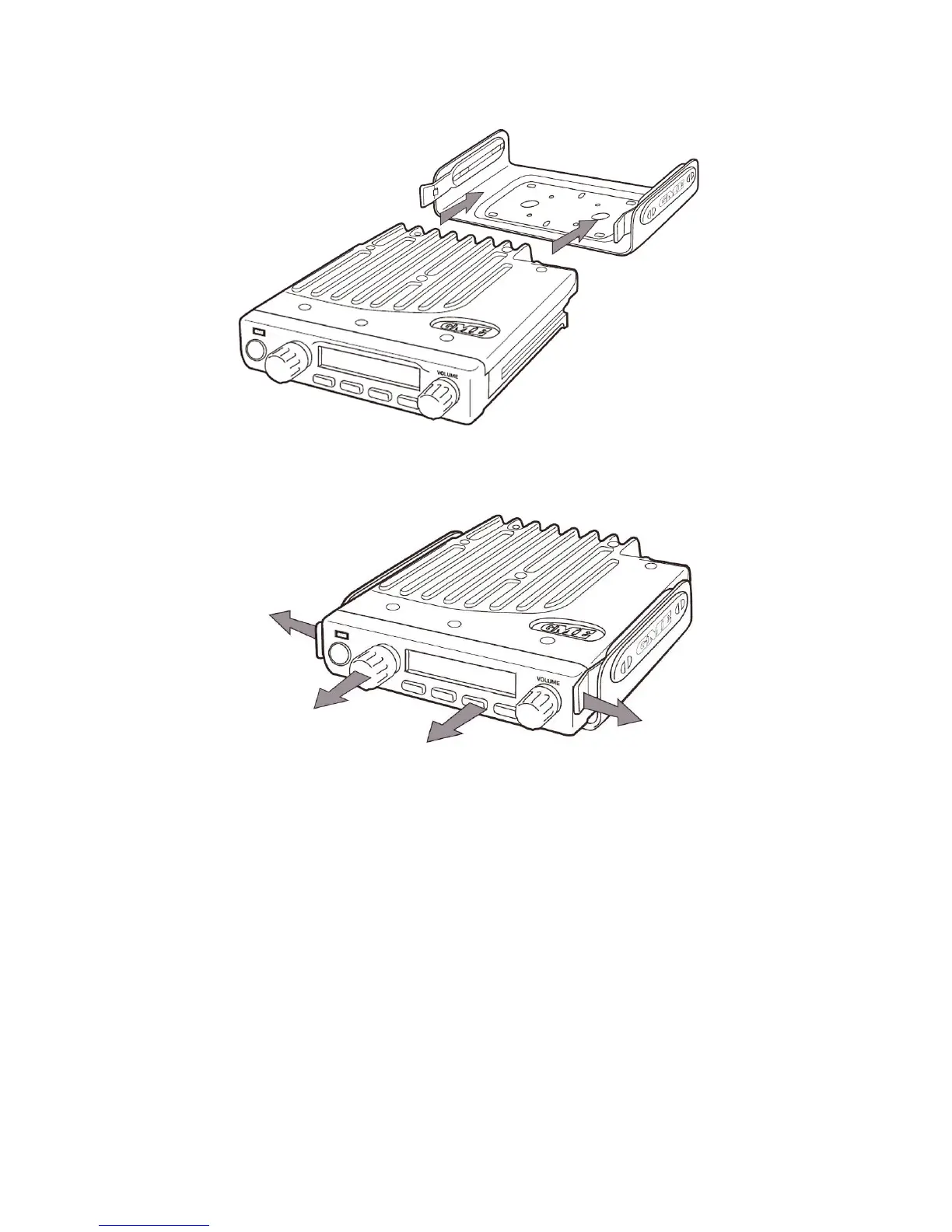

FittingtheRadio

RemovingtheRadio


FittingMC513BCMicrophone

Screwthemicrophonemountingcliptoafirmsurface.

Themicrophoneusesaminiature6pintelephonestyleplugandsocket.

Tofitthemicrophone:

1. Positionthemicrophoneplugsotheplastictabfacesdownwards.Pressthepluginto
thesocketuntilit‘clicks’.

2. Gentlypresstherubberstrainreliefintotheholesurroundingthesocketsothatthe
slotaroundthestrainrelieffitsneatlyinsidethelipofthehole.

Gently
spread
tabs
Gently
spread
tabs
Slideradiofrom
cradle
