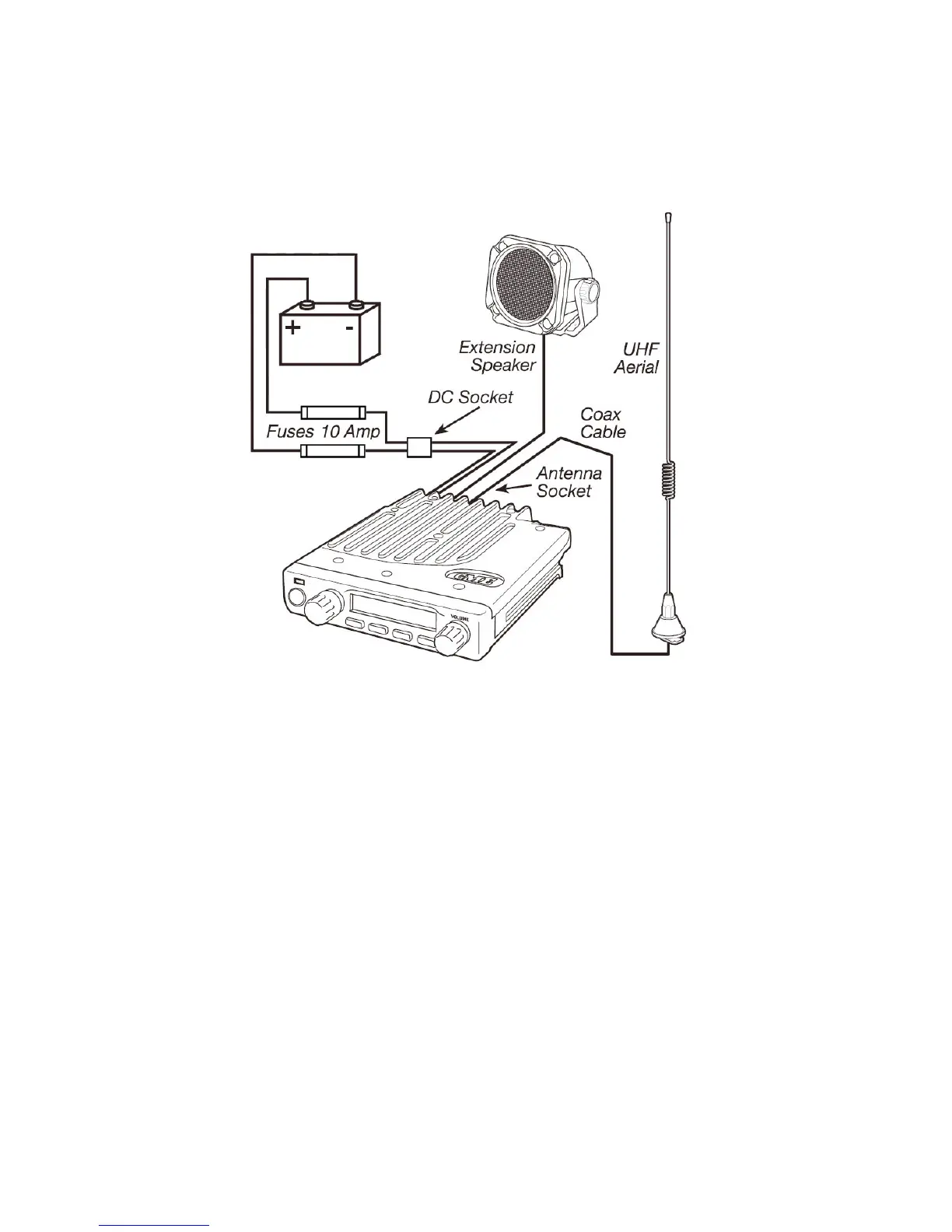

DCPOWERCONECTION

TheCM1039isdesignedfor13.8VoltDC,negativeearthinstallationsonly(i.e.wherethe
negativeterminalofthebatteryisconnectedtothechassisorframeofthevehicle).



Twoin‐line10Ampfusesaresupplied.Thesefusesaretobeconnectedasclosetothe
batteryaspossible.Theradio’spositive(red)leadshouldbeconnectedviaa10Ampfuse
directlytothebattery’spositiveterminal.Connecttheradio’snegative(black)leadviaa10
Ampfusedirectlytothebattery’snegativeterminal.

ANTENNAINSTALLATION

TocomplywithFCCexposurelimitstheradiomustbeinstalledusinganexternallymounted
antennawithagainofeither2.15dBior5.15dBi.Forbestresultsyourantennashouldbe
professionallyinstalledusingindustrystandardtechniques.
Transmitonlywhenbystandersareataminimumsafedistanceof35inches(0.9m)from
theantenna.


