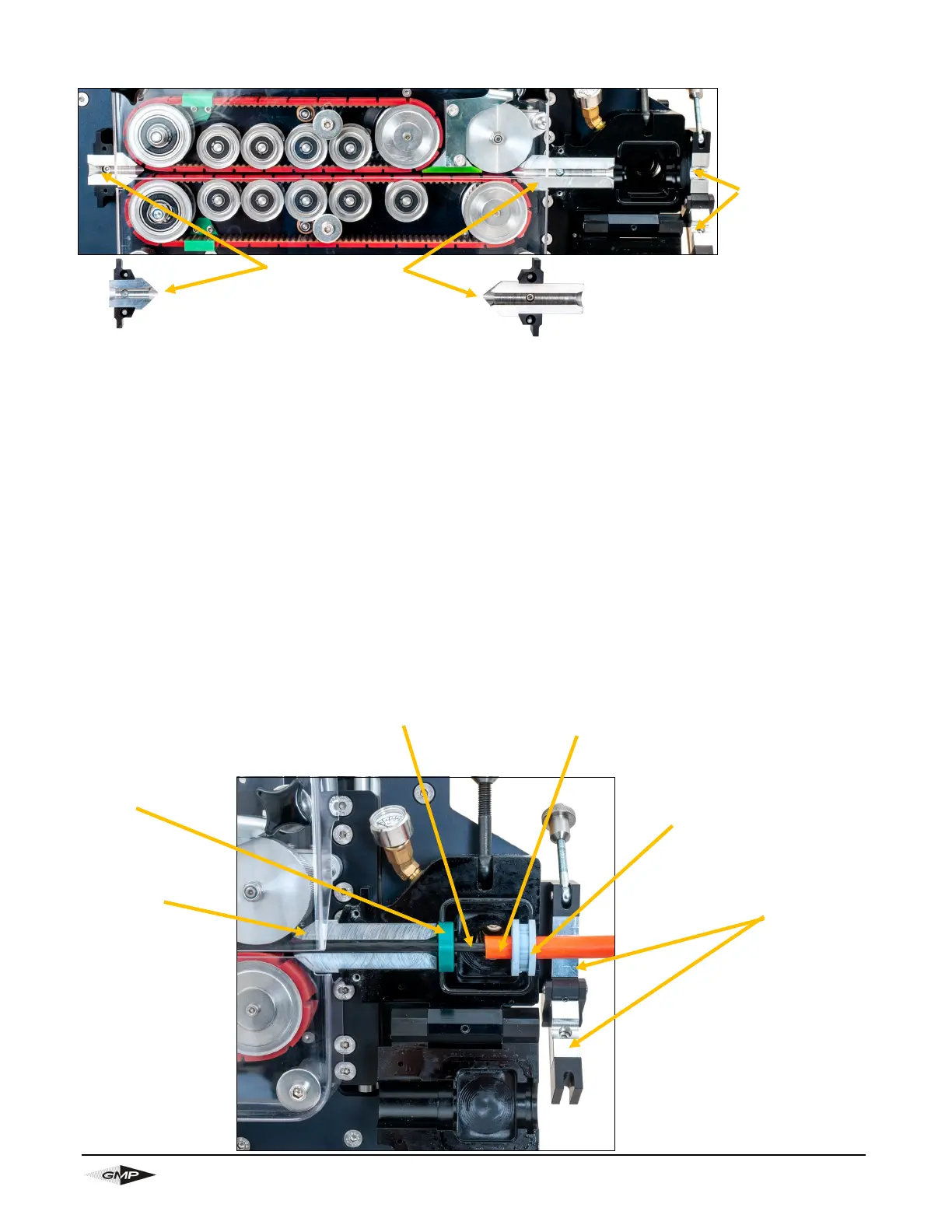

7.2 CHANGING THE DUCT CLAMPS AND CABLE GUIDES
7.2.1 DUCT CLAMPS
1. Open the duct clamp by unscrewing the wing nut rotating the swing bolt out of the way and opening
the clamp bracket.
2. Use a 3mm Allen key to unscrew the cap screw in the duct be clamp halves remove the duct clamp
halves
Do the above in reverse to fit the new duct clamp half’s
7.2.2 CABLE GUIDES
1. Open the airbox
2. Unscrew both upper guide housings.
3. Use a 3mm Allen key to unscrew cap screw’s and remove all four cable guide halves.
Do above in reverse to fit the new cable guides, keeping the shorter guides on the infeed for machine.
7.3 DUCT AND CABLE SET UP
CABLE
GUIDE
CABLE
SEAL
CABLE
DUCT
DUCT
SEAL
DUCT
CLAMP
DUCT CLAMPS
CABLE GUIDES
