Page 8
(2) Connection cable
(7) LED ring
(5) Button
(4) Housing
(6) Typ 2 socket
Page 9
(8) Fine-wire fuse on the back

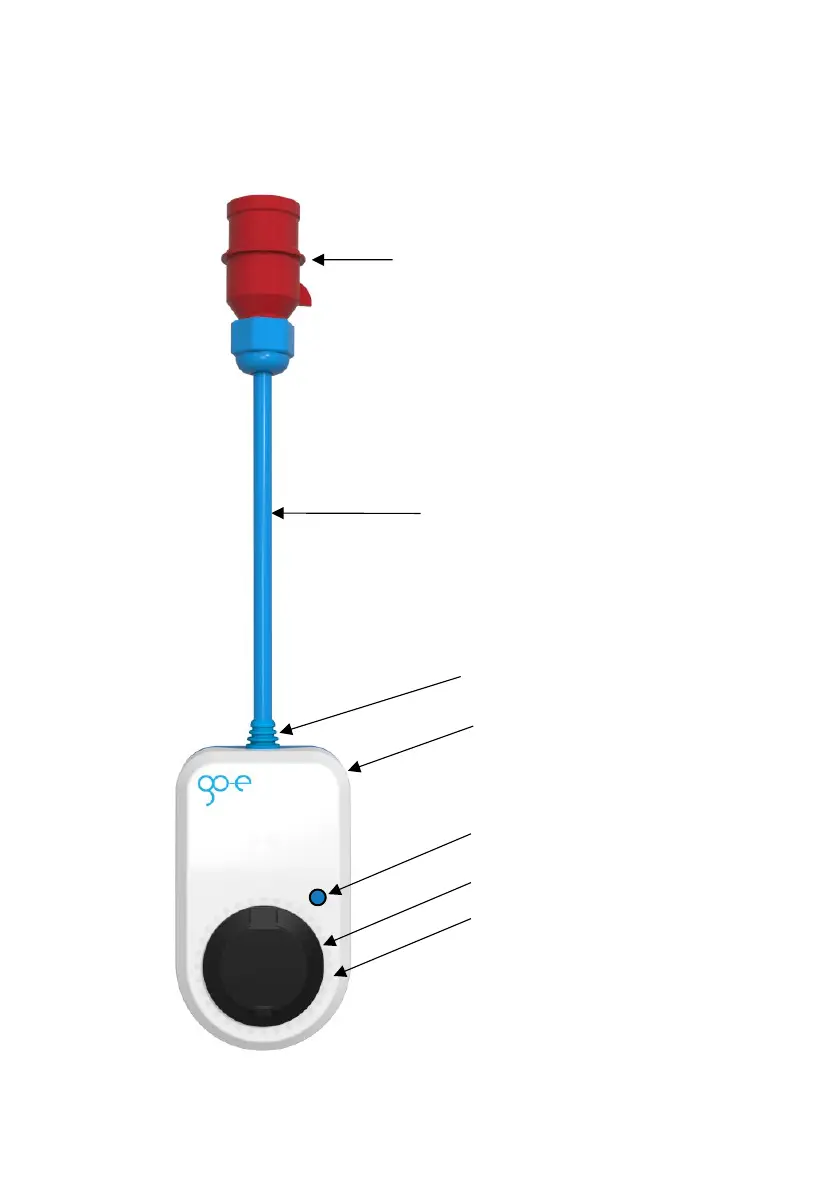

Product overview
(3) Strain relief
32 A CEE Plug (HOME+ 22 kW)
16 A CEE Plug (HOME+ 11 kW)
(1)
Never cover the go-eCharger during charging. Heat accumulation can lead
to permanent damage or even fire.
In the event of unusual heat generation, the charging process has to be
stopped immediately.
If you notice discoloration or deformation of the plastic due to heat
generation, it is imperative that you contact the customer service.
Use your go-eCharger exclusively hanging or in the wall mount. Never use
the charging box lying down! The type 2 connectors are not waterproof and
water could penetrate to the contacts while lying down!
The go-eCharger is suitable for charging gassing vehicle traction batteries
only in well ventilated rooms. In case of uncertainty, please contact your
vehicle manufacturer.
The go-eCharger HOME+ 11 kW may only be operated on the
following connections:
¡ CEE red 16 A 3-phase 400 V 50 Hz
With go-eCharger adapter for HOME+ 11 kW:
¡ CEE red 32 A 3-phase 400 V 50 Hz (limited by Charger to 16 A 3-phase)
¡ CEE blue 16 A 1-phase 230 V 50 Hz
¡ multiple domestic plugs 16 A 1-phase 230 V 50 Hz
The go-eCharger HOME+ 22 kW may only be operated on the
following connections:
¡ CEE red 32 A 3-phase 400 V 50 Hz
With go-eCharger adapter for HOME+ 22 kW:
¡ CEE red 16 A 3-phase 400 V 50 Hz
¡ CEE blue 16 A 1-phase 230 V 50 Hz
¡ CEE blue 32 A 1-phase 230 V 50 Hz
¡ multiple domestic plugs 16 A 1-phase 230 V 50 Hz
The original go-e adapters for the go-eCharger HOME+ 11 kW and go-
eCharger HOME+ 22 kW may only be used in conjunction with the
respective go-eCharger.
The go-eCharger HOME+ has the communication interfaces WiFi
802.11b/g/n 2.4GHz and RFID. WiFi is operated on a frequency of 2.4Ghz,
channels 1-13 with the frequency band 2412-2472Mhz. The maximum
transmission power of the WiFi is 19.29dBm. RFID is operated on a
frequency of 13.56MHz with a maximum radiated power of 60dBµA/m at
10m.
