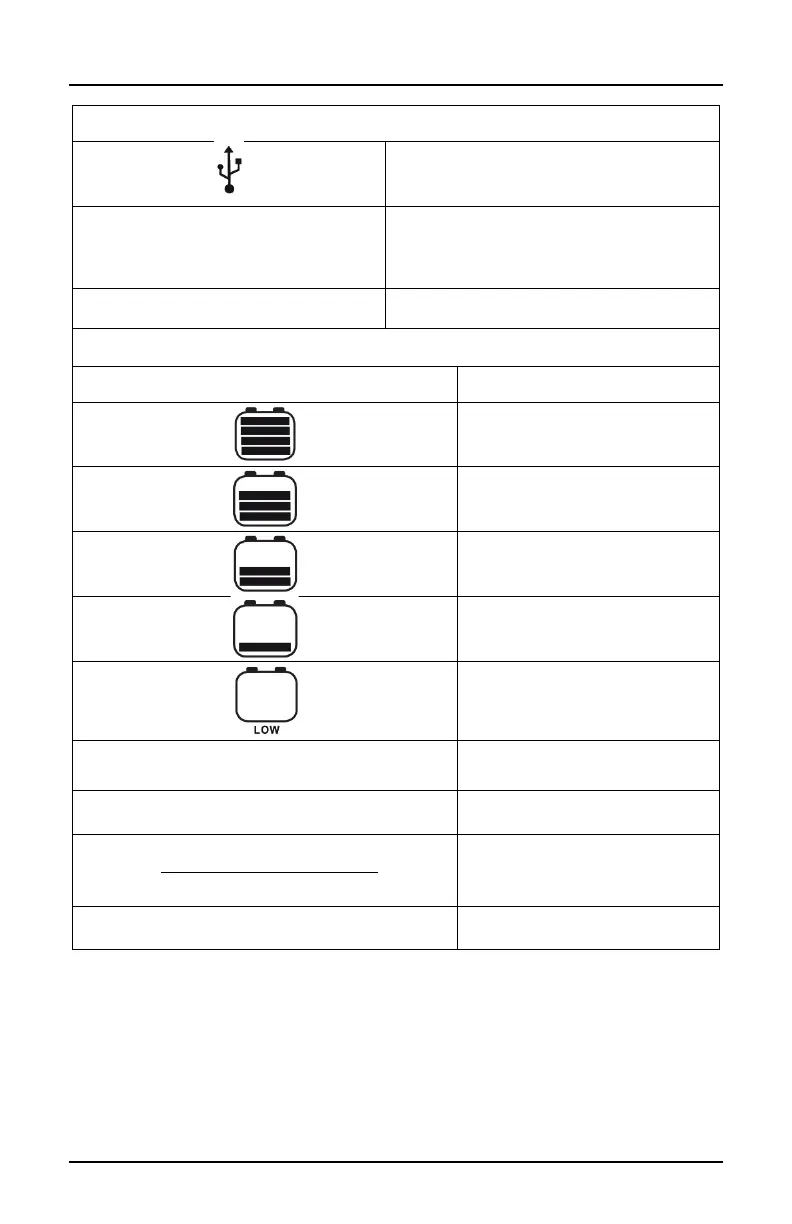

GP-PWM-30-SB

Other Symbols

USB charger on

(When charger is off, no symbol will show)

LOW

Battery voltage is lower than

11.0 VDC

Whole display will start to blink Battery voltage > 15.5 VDC

Battery State of Charge

Symbol

Battery Voltage

Shows only after full Boost

or Equalization Cycle

>= 12.6 VDC

>= 11.8 -12.6 VDC

> 11.0 -11.8 VDC

<= 11.0 VDC

100%

Shows only after full Boost

or Equalization Cycle

90% >= 12.8 VDC

 =

  − 11.0

1.8

∗ 90%

<12.8 VDC and > 11.0

VDC

0% <= 11.0 VDC
