Errors
Over Voltage
If the GP-PWM-30 experiences
a battery over voltage (15.5V),
the controller will stop operating
and the display will begin to
flash. The controller will resume
operating when the error is
cleared.

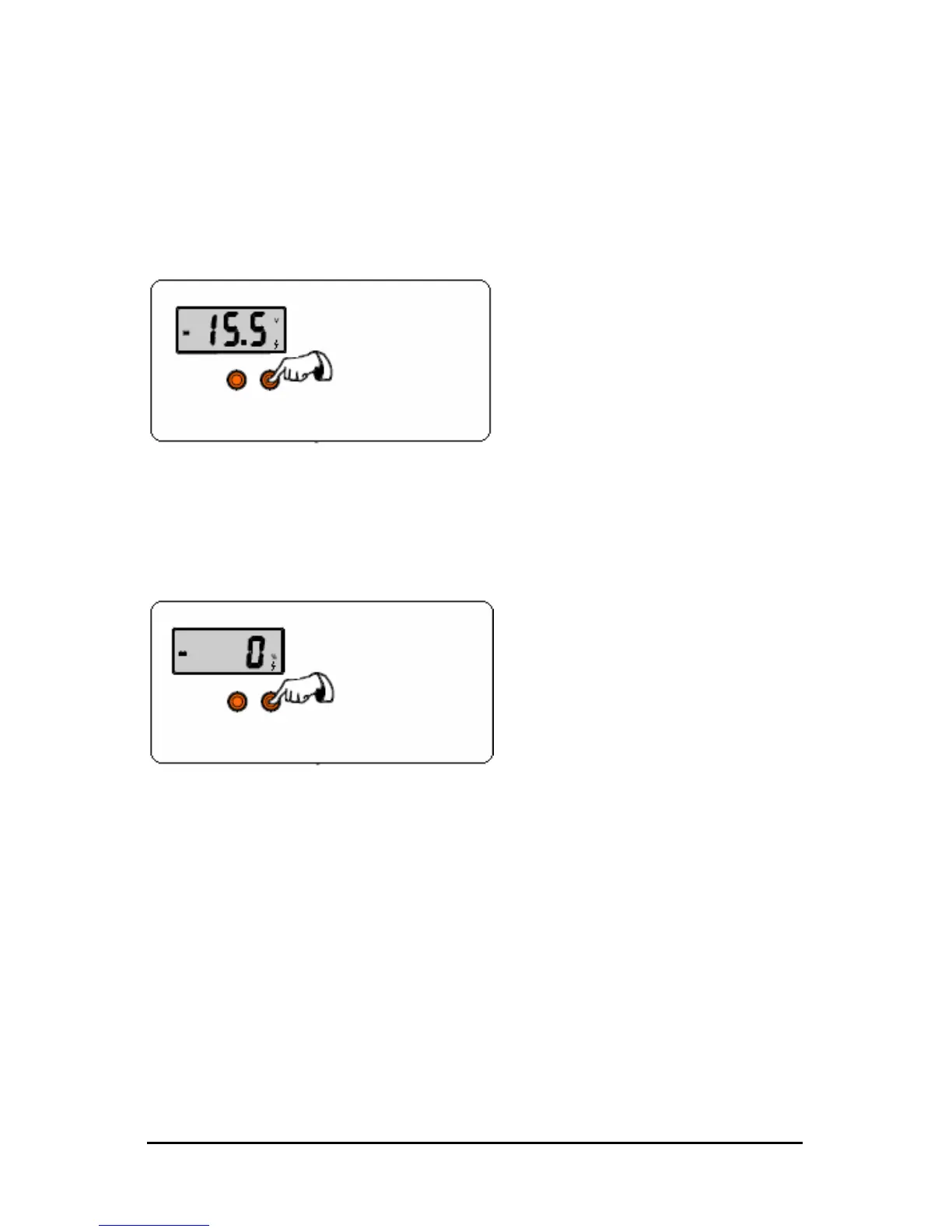

Icons Displayed: Battery, Volt Symbol, Lightning Bolt
Low Voltage
If the GP-PWM-30 experiences
the battery state of charge
reaching zero, a lightning bolt
symbol will begin to flash in the
lower right corner of the display.
The controller will continue
operating. The controller will
only stop operating if the
voltage drops below 6 volts.
Icons Displayed: Battery, Percent Symbol, Lightning Bolt

Go Power GP-PWM-30 Specifications

General

Input Voltage	12 VDC
Max Input Current	30A
Efficiency	Up to 99%
Battery Types	AGM, Flooded, Lithium, Gel
Protection Features	Reverse Polarity, Short Circuit
