Go Power MPPT-PRO Series User Manual

[page 14] | gpelectric.com
5. STATUS DISPLAY
5.1 LED INDICATION
There are four indicators on the controller.
PV Array Indicator
Indicating the controller’s current
charging mode
BAT Indicator
Indicating the battery’s current state
LOAD Indicator
Indicating the load’s ON/OFF and state
ERROR Indicator
Indicating whether the controller is
functioning normally
5.1.1 PV INDICATOR
LED PATTERN STATUS
STEADY ON MPPT CHARGING
SLOW FLASH
(cycle of 2s with on and o󰀨 each lasting for 1s)
BOOST CHARGING
SINGLE FLASH
(cycle of 2s with on and o󰀨 lasting respectively for 0.1s and 1.9s)
FLOAT CHARGING

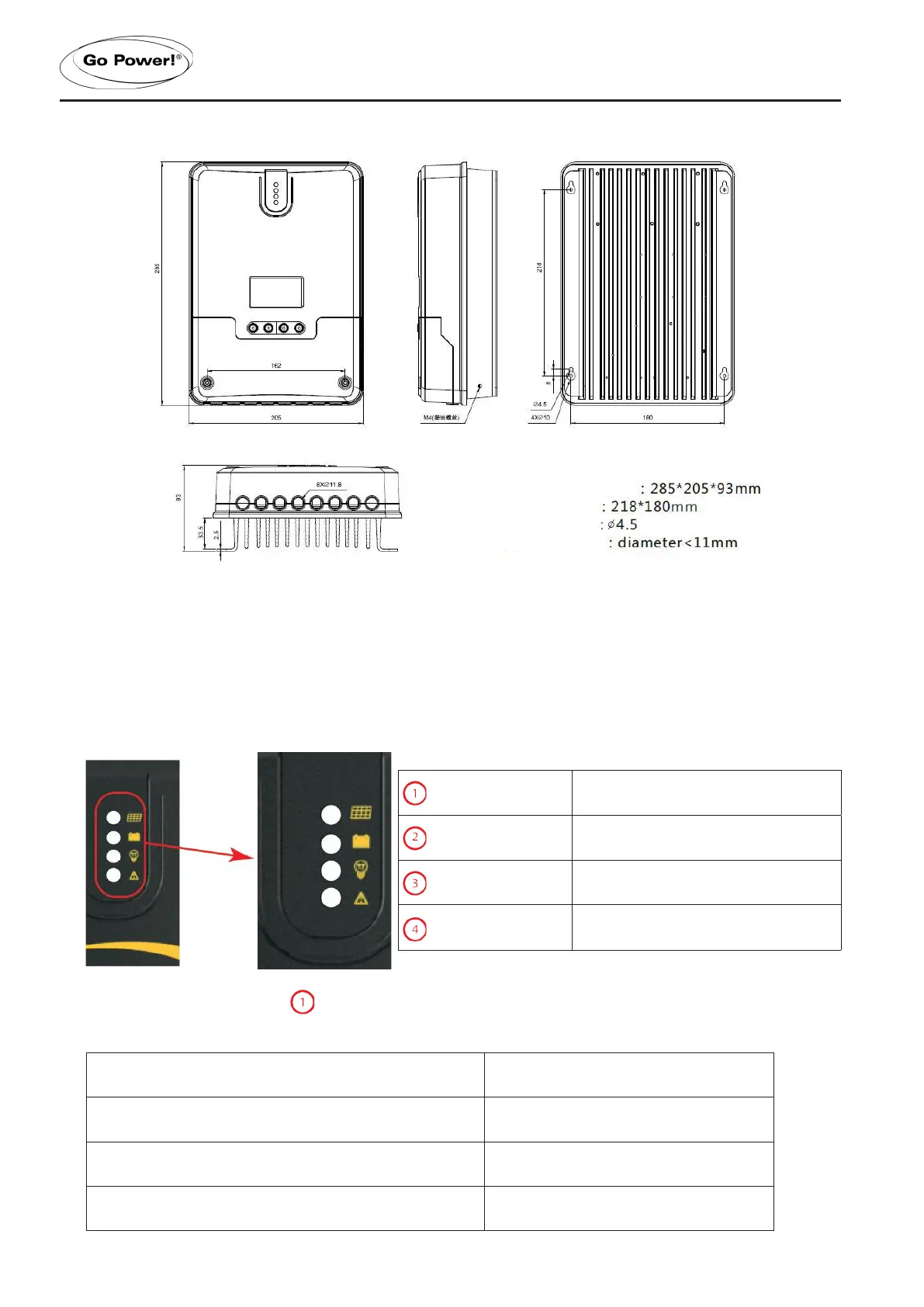

4. PRODUCT DIMENSIONS
PRODUCT DIMENSIONS
HOLE POSITIONS
HOLE DIAMETER
APPLICABLE WIRE
GP-MPPT-PRO-60
