7
Remove the interface cable:
1. Find the release-hole.
2. Insert a thin wire into the hole and pull out the cable gently.

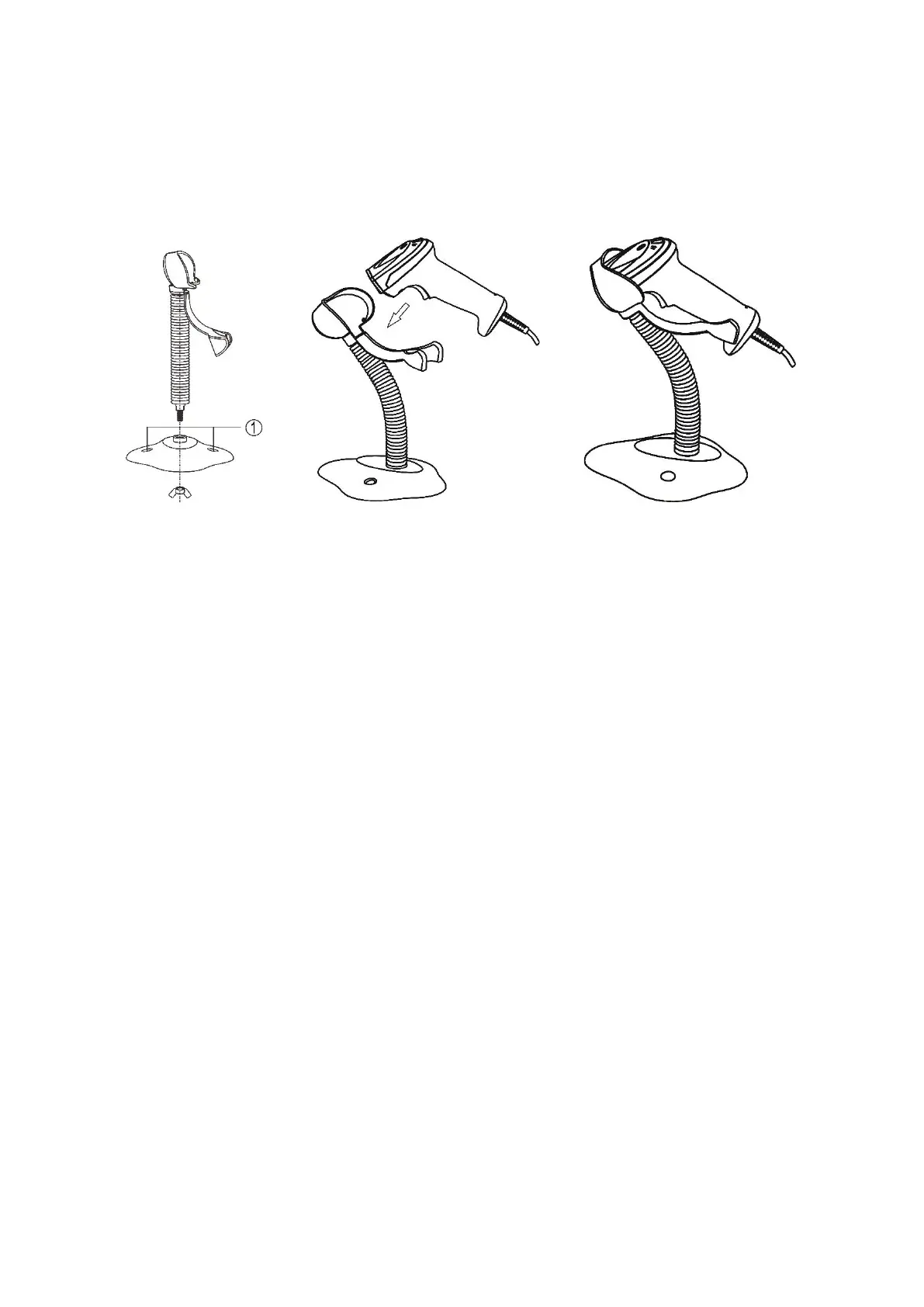

2-5 Assembling the stand
Note: The stand is an optional accessory.
1. See the figure above, tighten the screws.
2. Bend the neck to the desired position for scanning.
3. Screw mounting: Screw one #10 wood screw into each screw-mount-hole until the base of
the stand is secured.
4. Tape mounting: ①Peel the paper liner off one side of each piece of tape and place the
sticky surface over each of the three rectangular tape holders. ②Peel the paper liner off
the exposed sides of each piece of tape and press the stand on a flat surface until it is
secure.
