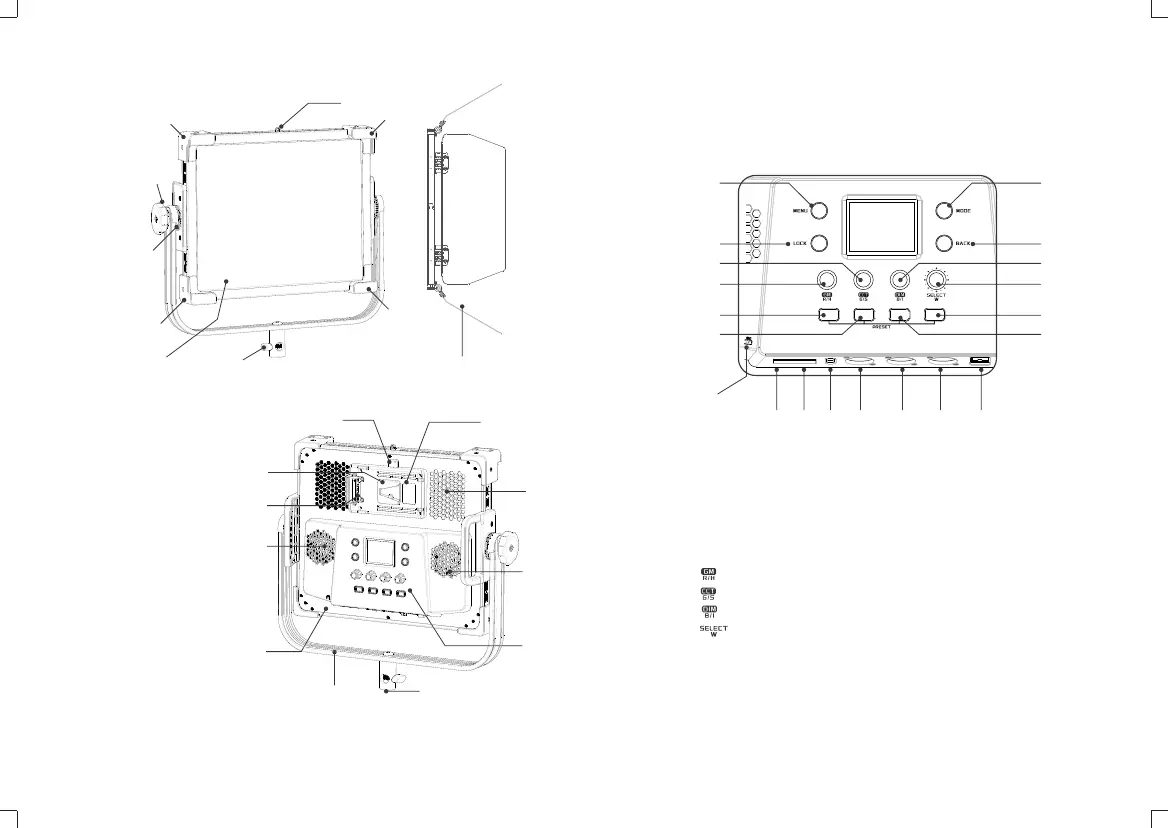

Name of Body
1. Light Body
2. Control Panel
3. Fixed Parts*4
4. U-type Bracket
5. Battery Clip
6. V-port Battery
Compartment
7. Battery Base
8. Battery Release
Button
9. Fan Port*1
10. Fan Port*2
11. Thermovent
12. Bracket Sleeve
13. Screw of Sleeve
14. Bracket Locking
Screw
15. Fixed Flat
16. Four-leaf Reflector
17. Mixed Light Lens
18. Small Buckle
















 


• Controller
1. MENU Button
2. LOCK Button
3. MODE Button
4. BACK Button
5. Select Dial
6. Select Dial
7. Select Dial
8. Select Dial
9. Preset Button 1
10. Preset Button 2
11. Preset Button 3
12. Preset Button 4
13. DC Power Socket
14. DXM OUT Five-Core XLR Port
15. DXM IN Five-Core XLR Port
16. DXM OUT RJ45 Port
17. DXM IN RJ45 Port
18. Type-A USB Port
19. MIC Hole
20. Power Switch












  

- 21 - - 22 -
