golmar ART 7W/G2+ - Hardware Description

4

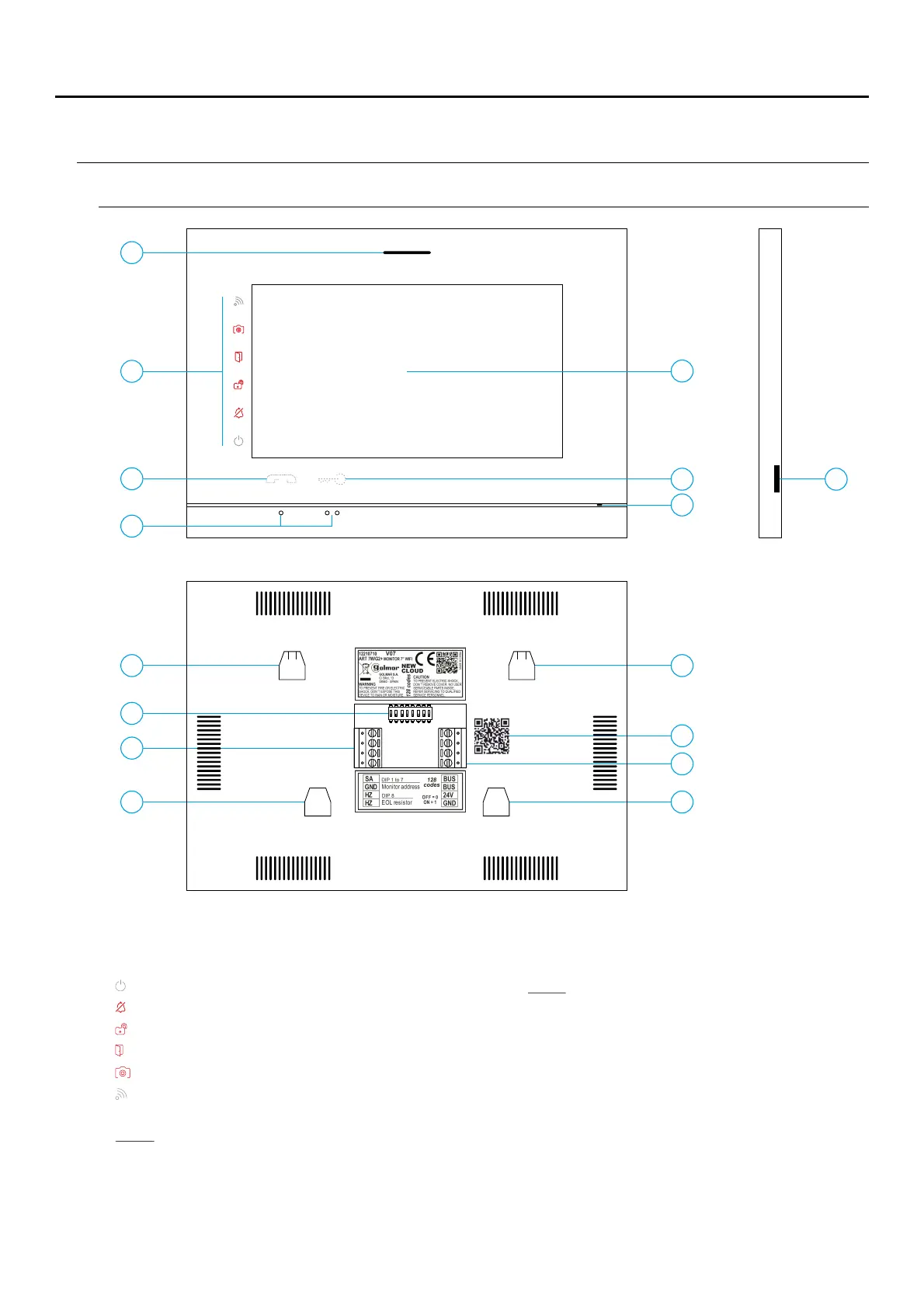

ART 7W/G2+ MONITOR
Description
A. Speaker.
B. Notification icons:
Power on indicator.
Do not disturb.
Auxiliary relay activated.
Door opening.
New image/video.
Wi-Fi transfer activated.
C. Hidden start/stop communication button:(icon)
Note: ART 7W/G2+ monitor 'V.01 + No. 6539 and
V.02' or later: For the visually impaired, by default
deactivated (see p. 20-22 'special codes').
D. Raised dots for the visually impaired.
E. Touch screen.
F. Hidden door opening button.(icon)
Note: ART 7W/G2+ monitor 'V.01 + No. 6539 and
V.02' or later: For the visually impaired, by default
disabled (see p. 20-22 'special codes').
G. Microphone.
H. MicroSD card slot (not included).
Type: MicroSD Class 10 from 4Gb to 128Gb.
I. Wall mounting connector fixing (x4).
J. Configuration switches.
K. Installation terminals.
L. UID code label of the monitor.
