golmar Nexa Modular G2+ User Manual

4
Video module
EL63 +2/G2 SE
EL642/G2+
,
,
in video door entry systems with colour television camera.
in audio door entry systems.
DESCRIPTION OF THE NEXA MODULAR DOOR PANEL
Button module
EL610D
Short connection cable supplied with the EL610A module (length 16 cm).
, for 5 individual or 10 double buttons.
RAP-610D connection cable (length 27 cm).

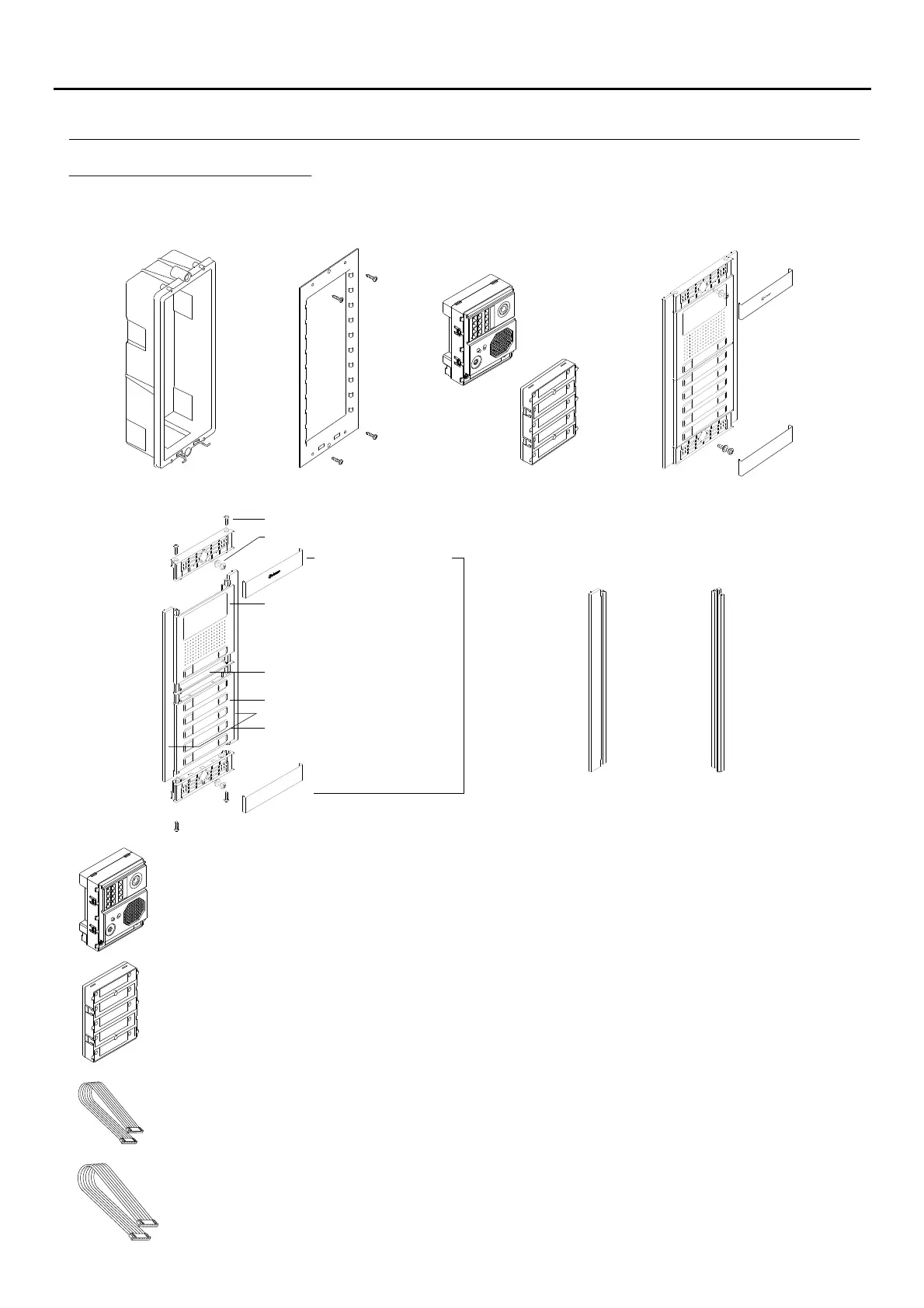

Door panel component assembly drawing.
Aluminium panel
Electronic
modules
Frame modulesEmbedding boxes
Description of the door panel.
For connecting the buttons between the sound module and the EL610D button module and
between EL610D button modules.
This hose is required when the distance between modules to be connected is greater due to
their distribution in the door panels.
For connecting the buttons between the sound module and the EL610D button module and
between EL610D button modules.
Description of the door panel:
Grille modules:
N1000/AL
N1110/AL 1P.
N2220/AL 2P.
Clip-on covers: 60xx
Button module: 3xxx
Nexa module separator
Fixing screws for clip-on covers (x4)
Side profile (x2)
Side profile
Door panel UNE rod
*
Fixing screws for embedding box (x2)
*
Door panel UNE rod: Enables 2 door panels to be joined (see page ).31
NEXA MODULAR G2+ AUDIO AND VIDEO DOOR ENTRY SYSTEM - BUILDING
