golmar Stadio Plus - Monitor Description

a
f
g
b
e
j
lk
m
d
i
c
h
a.
b.
c.
d.
e.
f .
g.
h.
i .
j .
k.
l .
m.

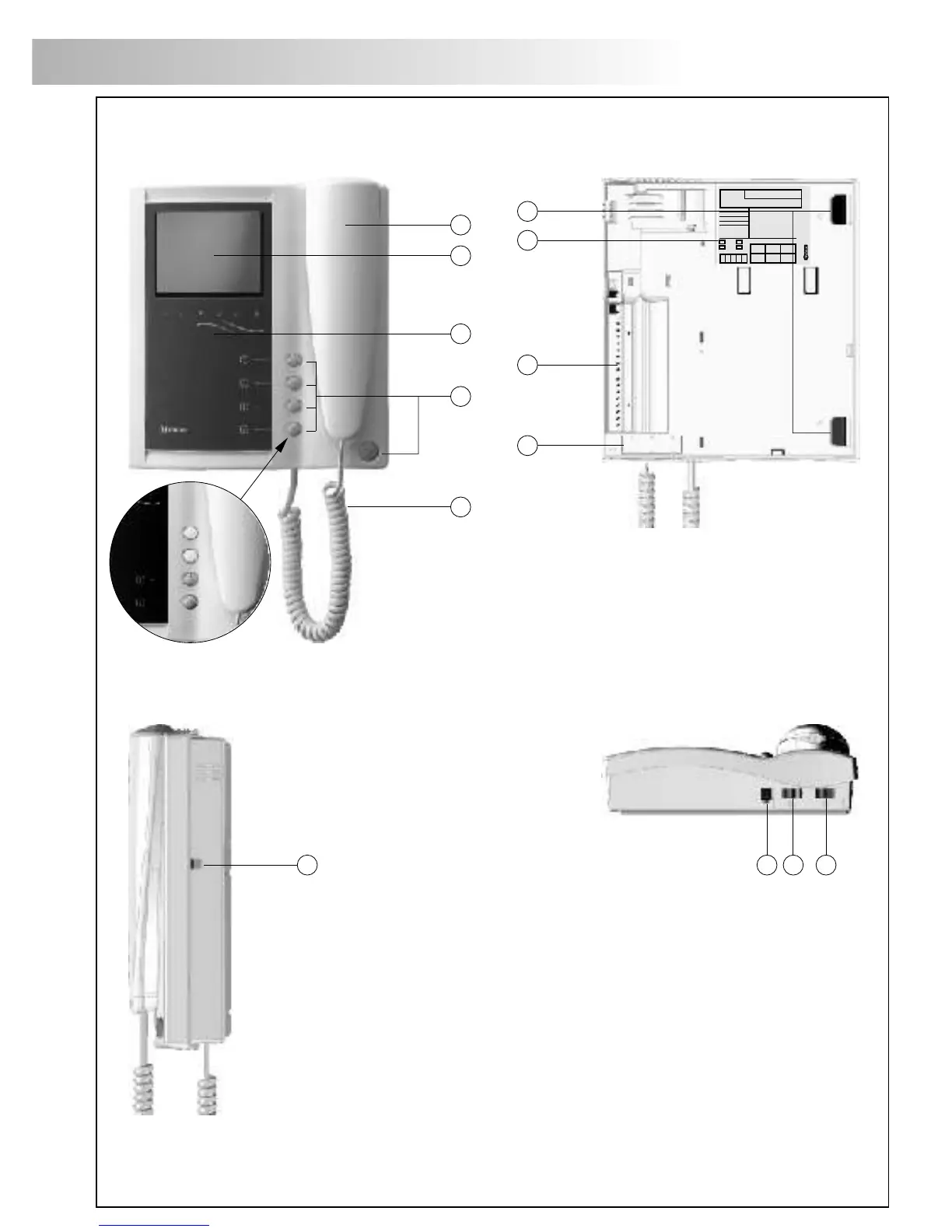

Handset.
B/W or color screen (depending on the model).
Front film (reversible on Platea PLUS).
Function push buttons (depending on the model).
Cord.
Attachment holes.
Identification label.
Connecting points.
CN4 connector (CN2 on Platea UNO).
Three positions call reception volume control (only Platea PLUS).
Cable slot.
Contrast control (color control in case of color screen).
Brightness control.
Monitor
Modelo
CODIGO / CODE
MASTER
18Vdc ± 2V
Standby 15mA
Máximo 450mA
Sistemas de comunicación S.A.
Made in Spain
10ºC + 50ºC
SLAVE
INTER A1
PUERTAESCALERA
ATENCIÓN
Alta tensión. No abrir la tapa.
Manipular sólo por personal
del servicio técnico.
WARNING
High voltage. Don't open cover.
Handle only by technical service.
PISO
Floor DoorStair
PLATEA Plus
0000000000
Nº serie
escription of the Platea monitors.
D
95
MONITOR DESCRIPTION
Platea Uno
push buttons
Platea PLUS: On-Off push button. After any monitor reset and during the next 45
seconds, all the monitor functions will be disabled, with the exception of call reception.
Platea UNO: On-Off indicator.
Platea PLUS: If the handset is on the craddle allows the activation of an optional second
camera (*). If not, allows to make an intercom call or to activate the second
camera (*).
Platea PLUS: If the handset is on the craddle allows the activation of an optional device.
If not, allows to call to a slave porter's exchange (*) or to activate the optional device.
If the handset is on the craddle allows to see the picture from the master door panel.
If not, allows to establish audio and video communication with the door panel
that has been configurated with the autoswitch-on function. This function is
disabled if a communication is already established.
If the handset is on the craddle:
Platea PLUS: sends a panic call to the porter's exchanges that have enabled the
reception of this type of call.
Platea UNO: keep pressing this button for 1 second to turn the monitor On or Off.
45 seconds after turning On the monitor only calls will be received.
If not: in both models allows to call to the master porter's exchange.
During call reception and communication progresses activates the lock release.
(*) Second camera activation and call to a slave porter's exchange functions require an internal
modification of the monitor. If any of these functions are required, contact with your nearest
authorized distributor.
Second camera activation disables the intercomm function and call function to a slave
porter's exchange disables optional device function.
unction push buttons.
F
escription of the identification label.
D
For an easiest repair, replacement or increasement
of the existing monitors, fill the indentifying label
information.
MASTER: master monitor.
SLAVE: slave monitor.
INTER: slave monitor with intercom function.
A1: monitor connected to an auxiliary device.
CODE: monitor call code (see page 90).
STAIR: building code (see page 84).
96
MONITOR DESCRIPTION
CODIGO / CODEMASTER SLAVE
INTER A1
ATENCIÓN
Alta tensión. No abrir la tapa.
Manipular sólo por personal
del servicio técnico.
WARNING
High voltage. Don't open cover.
Handle only by technical service.
PLATEA UNO
REF.
11784022
COD.
PUERTA
Door
ESCALERA
Stair
PISO
Floor
VERSIÓN Nº SERIE
00000000000X.XX
