MONITOR ADJUSTMENTS
l562 module for video installations with twisted pair cable.
E
andling the end of line jumper.
H
hanging the front film (only Platea PLUS).
C
The end of line jumper is placed on the CN4 connector (CN2 on
Platea UNO), that can be located on the monitor base.
In case of twisted pair cable installations, the end of line jumper
is placed in the EL562 module, also located in the CN4 connector
(CN2 on Platea UNO) of the monitor base.
Do not remove the jumper on monitors where the video cable finishes.
Remove the jumper on monitors where the video cable continues.
The Platea PLUS monitor is supplied with a reversible front film, that allow
the owner to choose between two colors.
To change the front film, remove the front plate by inserting a plain screwdriver
in the triangle marks, as it is shown on the drawing.
Platea PLUS: Locate the CN4 connector, that's placed in the monitor
base. Remove the existing jumper and plug the EL562 module.
Platea UNO: Locate the CN2 connector, that's placed in the monitor
base. Remove the existing jumper on the connector and the JP1
jumper on the right.
NOTE: refer to the specific installation diagram
98
MONITOR CONNECTOR
Vin
Vout
Malla
Shield
Malla
Shield
A
HZ-
INT
SA
CTO
2C
A1
VP
MP
D
REF
RCPL-PLUS
LOTE
CODE 11758882
Colocar la parte superior de la regleta a 1,60m. del suelo.
Place the top part of the monitor connector at 1,60m. from the floor.
50mm.
50mm.
Presionar para abrir.
Press to open.
Platea PLUS: Terminals +, – and Malla (shield) are duplicated for easiest cascade installation
of parallel monitors or telephones. If the first monitor is not placed on the connector,
cascade units will not be powered.

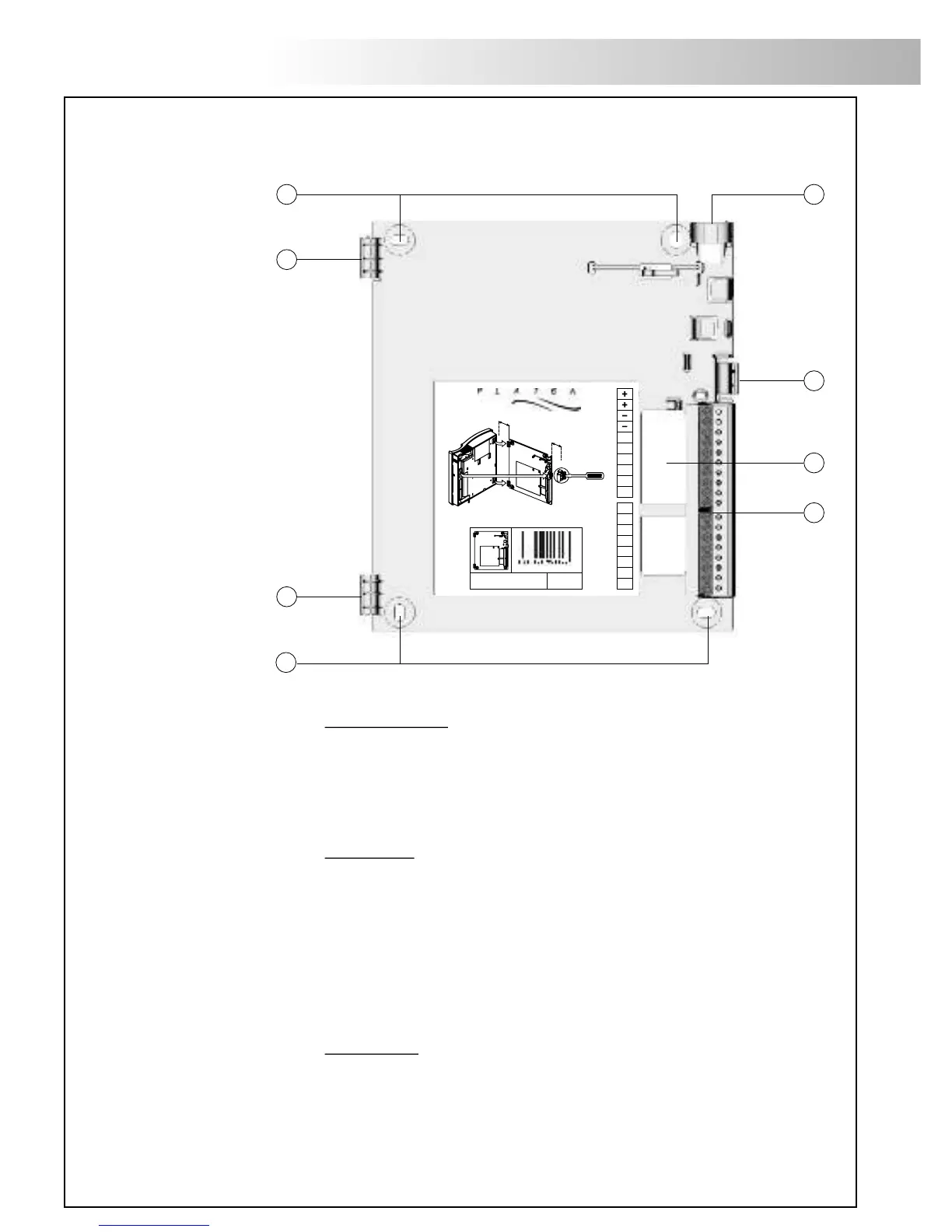

escription of the RCPL-Plus and RCPL-Uno
D
monitor connector.
a
a
b
b
f
e
d
c
a. Wall attachment hole (x4).
b. Monitor attachment hook (x2).
c. Vertical wiring input.
d. Attachment clip.
e. Wiring input hole.
positive, ground.
coaxial shield.
audio communication.
digital communication.
door bell push button input.
video signal coaxial input.
video signal coaxial output.
Intercom.
auxiliary calling device output.
video distributor activation output.
2nd camera activation output.
optional device activation output.
twisted pair video signal.
video signal coaxial or MP(for TP) input.
video signal coaxial or VP(for TP) output.
For both models
+, – :
Malla :
A :
D :
HZ- :
Platea PLUS
Vin :
Vout :
INT :
SA :
CTO :
2C :
A1 :
Vp, Mp :
Platea UNO
Vin/MP :
Vo/VP :
f. Installation terminals:
