PROGRAMMING THE MONITORS
10
TEKNA-S PLUS MONITOR
Locate the SW2 DIP switch on the EL632 Plus sound module of the door panel or the
EL500SE microprocessor and set to ON.
In systems with more than one door panel, only perform this procedure on the main panel
of each building.
Important: To perform this programming, the monitor's SW1 DIP switch should be set to
OFF.
Programming the TEKNA S PLUS monitor:
M
S
SI
Continued overleaf

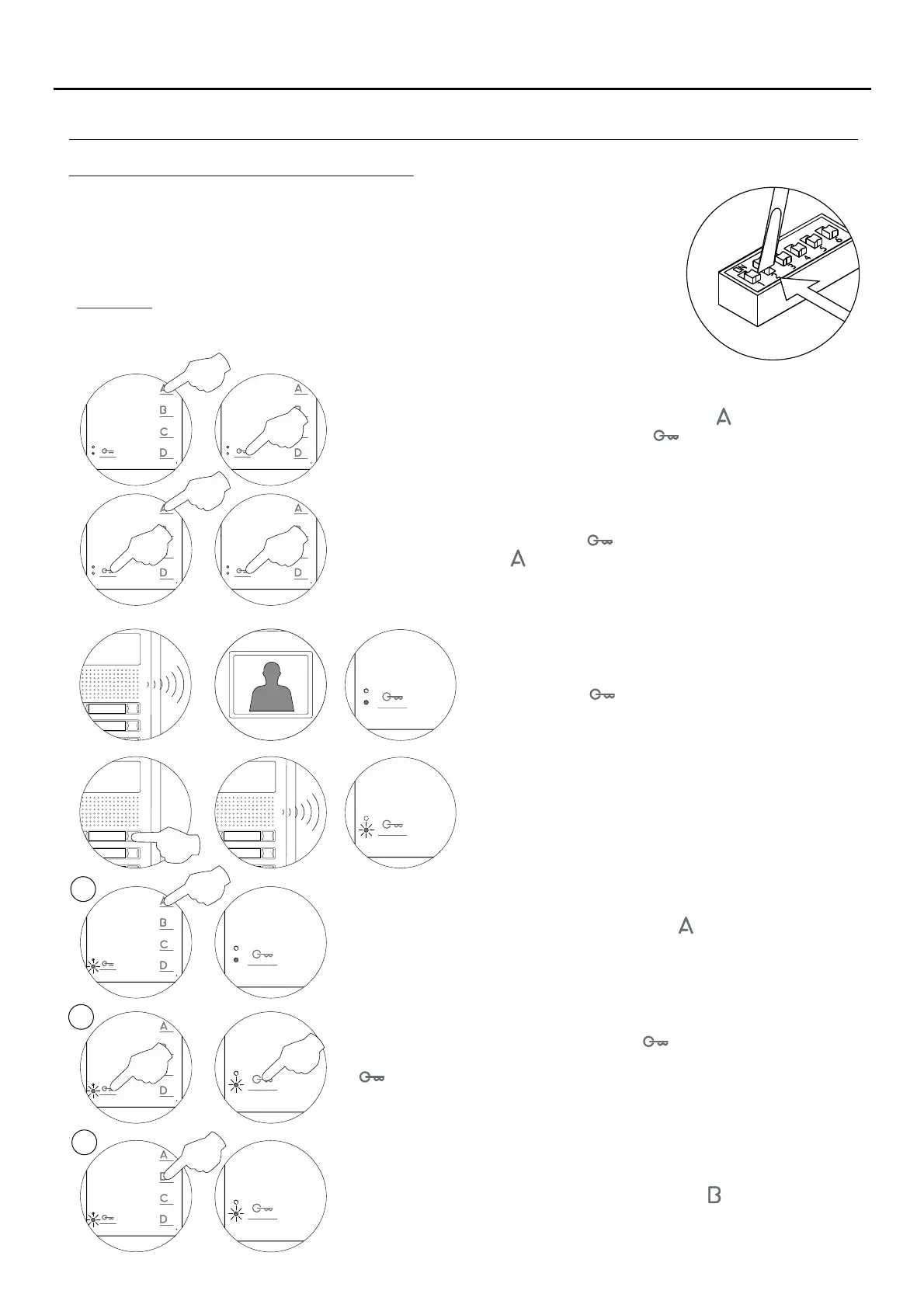

Turn off the monitor to be programmed (press button for 3 seconds).
Once switched off, press door release button .
Press and hold door release button and, without releasing it, switch on the
monitor (press button for 1 second).
To show that the device is ready for programming, the door
panel and monitor will emit a number of tones (the status
LED on the monitor will illuminate red), enabling door
release button to be released. To establish audio
communication with the door panel, lift the handset.
Press the door panel button that will call this monitor.
At this moment, the door panel and monitor will emit a
number of tones (the status LED on the monitor will blink
red).
To programme the monitor as , press button for 3 seconds (the monitor'sMaster
LED will illuminate red).
To programme it as , press button once and the status LED willSlave 1
blink (green) once. Continue successively to , pressing buttonSlave 4
four times and the status LED will blink (green) four times.
To programme it as , press button and the LED will blinkSlave + Intercom
(green) once.
