Goodman *PH 16 User Manual

ACCESSORIES
12

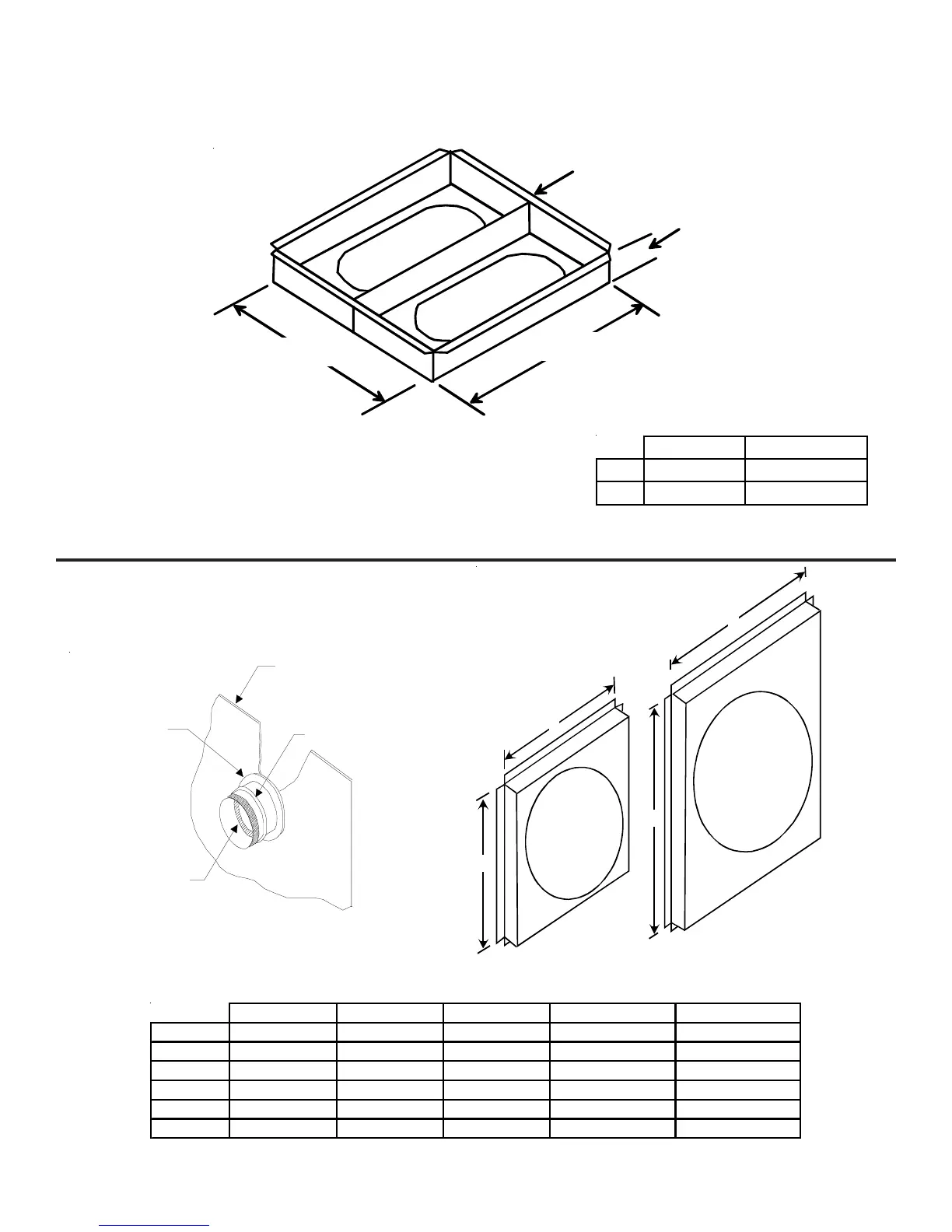

SQRPC SQUARE TO ROUND CONVERTER
(DOWNFLOW APPLICATIONS)
SQRPCH SQUARE TO ROUND CONVERTER
(HORIZONTAL APPLICATIONS)
OUTER FLANGE
STARTER FLANGE
BEAD
SQUARE TO ROUND
DUCT CONVERTER PANEL
1 1/2
"
29 1/2"
29 1/4"
RA
SA
1" FLANGES
SQRPC101 SQRP102-103
SA 16" 18"
RA 16" 18"
SQRPCH-101 SQRPCH-102 SQRPCH-103 SQRPCH102-14 SQRPCH103-14
A
15" 17" 17" 15" 15"
B 15" 17" 17" 15" 15"
C 17" 17" 19" 15" 15"
D 22 1/2" 24 1/2" 24 1/2" 24 1/2" 24 1/2"
SUPPLY 14" 16" 16" 14" 14"
RETURN 16" 16" 18" 14" 14"
A
B
2"
SUPPLY
RETURN
C
D
2"
*PC15/*PH16H41*
