16
WARNING
• Connect the conductors to the right terminals like L1, L2, and N. The device may be
damaged if the conductors are connected inappropriately.
• Make sure that the whole conductors are inserted into the terminal holes. No part of the
conductor can be exposed.
• Make sure that the conductors are connected securely. Otherwise, the terminal may get
too hot and damage the device.
4.4 Connecting the Conductors
WARNING
• The ac output (neutral) is not bonded to ground.

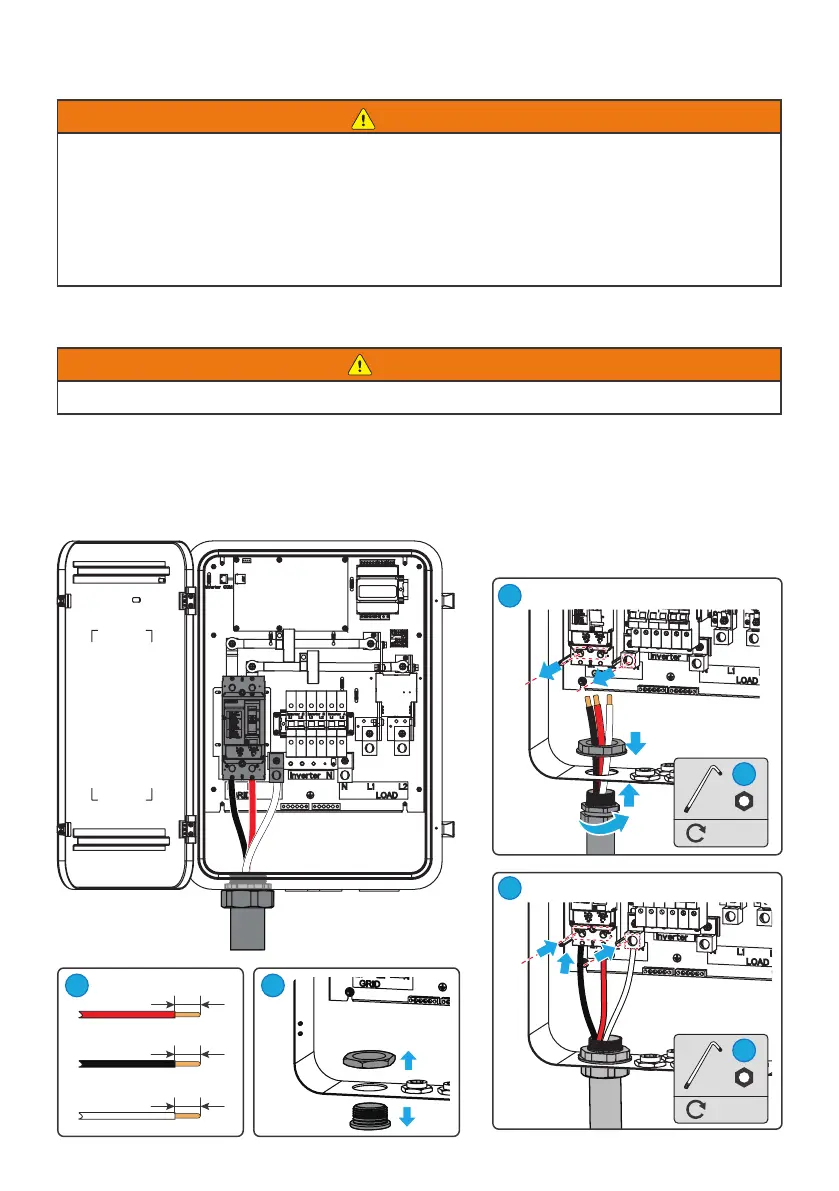

4.4.1 Connecting the AC Conductors (Grid)
Step 1 Strip the conductor wiring.
Step 2 Remove the waterproof cover using the included cap removal tool.
Step 3 Insert the desired conduit and corresponding adaptors, ttings, and bushings.
Step 4 Insert the conductors into the device and tighten the conduit.
3
4
4
2
1
10N·m
4
3
1
2
2
4
10N·m
2
18-22mm
18-22mm
18-22mm
To Next Page
