5
02 InstallationUser Manual V1.2-2022-10-30

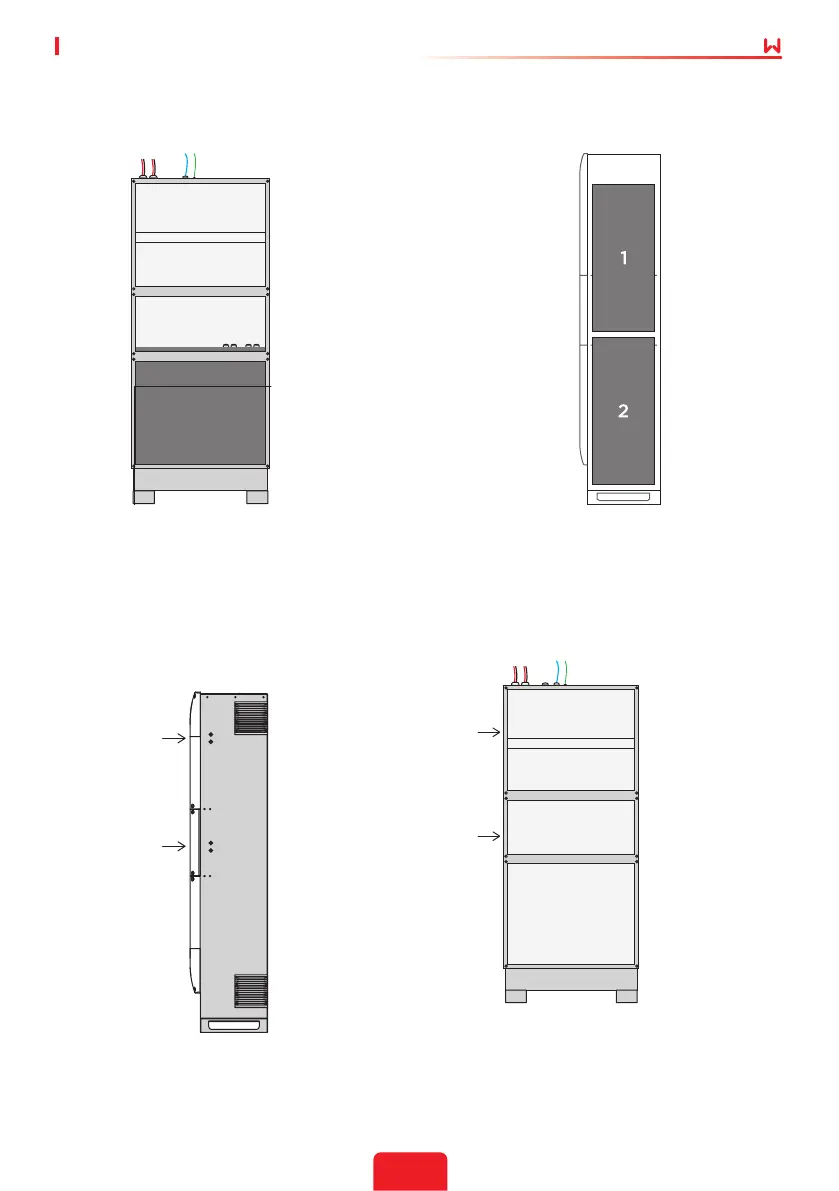

Figure 7: BCL9600 with the bottom battery
inserted
Figure 8: Inside view of BCL9600 with
two Goodwe SECU-A batteries.
Figure 9: BCL9600 earthing connection points.
Side of battery enclosure
(wire-frame view)
2x earthing
points
2x earthing
points
Front view of battery enclosure
2x earthing
points
2x earthing
points
2. Once the batteries are placed into position, plug the respective power leads into the power
connectors on the batteries while taking note of the polarity. Ensure that the battery 2 lead
which has the power connector for the Fan Controller is plugged into one of the batteries.
3. If you are using GoodWe SECU-A battery packs, connect the bonding leads between each
battery and the earthing studs inside the enclosure.
