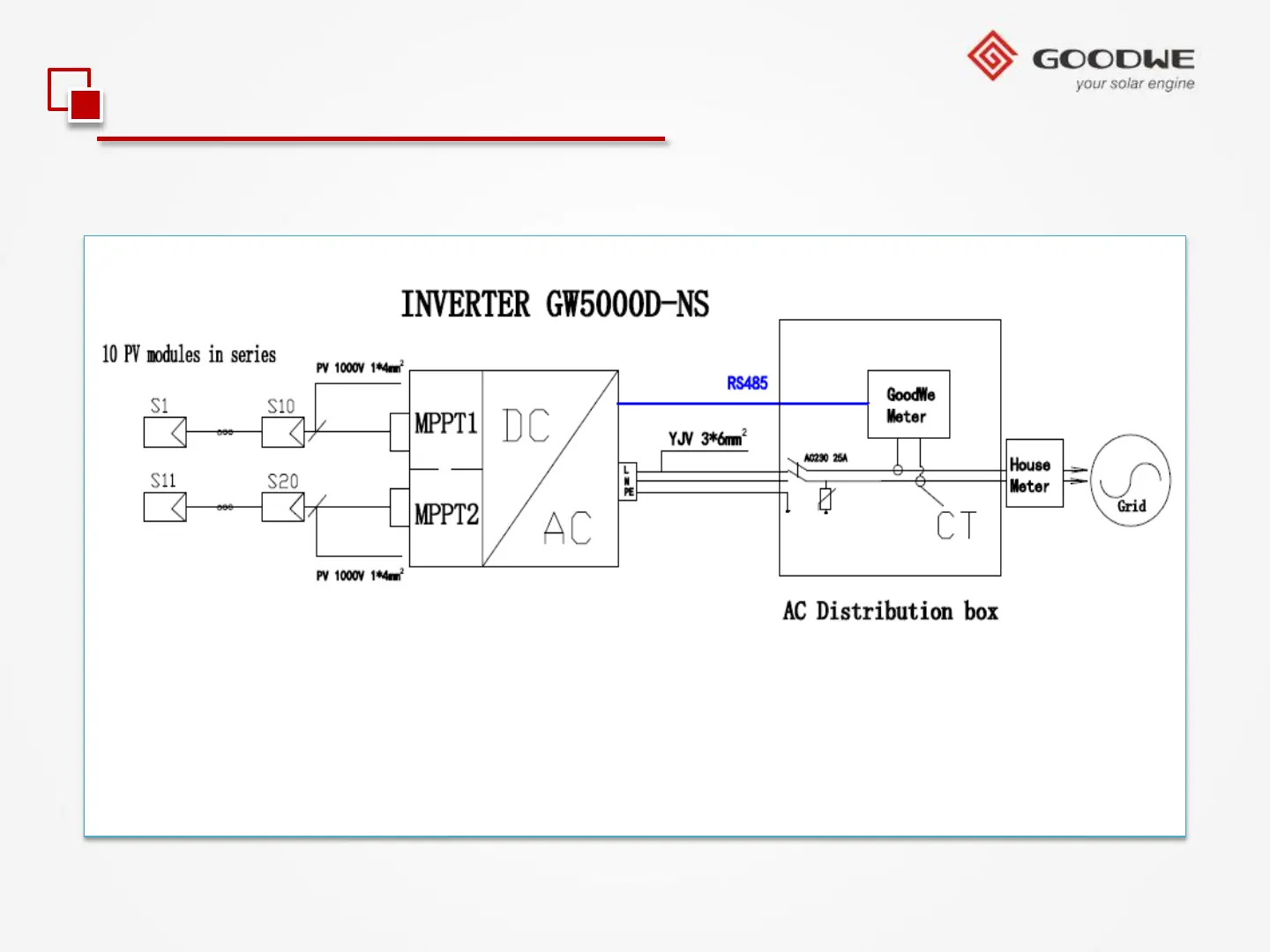

• GW5000D-NS Sample System Schematic
Explaination:
1. PV modules using polysilicon component, Pm=250Wp, 20pcs;
2. The grid-connected inverter using GW5000D-NS inverter*1;
3. GoodWe Meter using CT to sample the current, in order to realize
anti-reverse current function.
