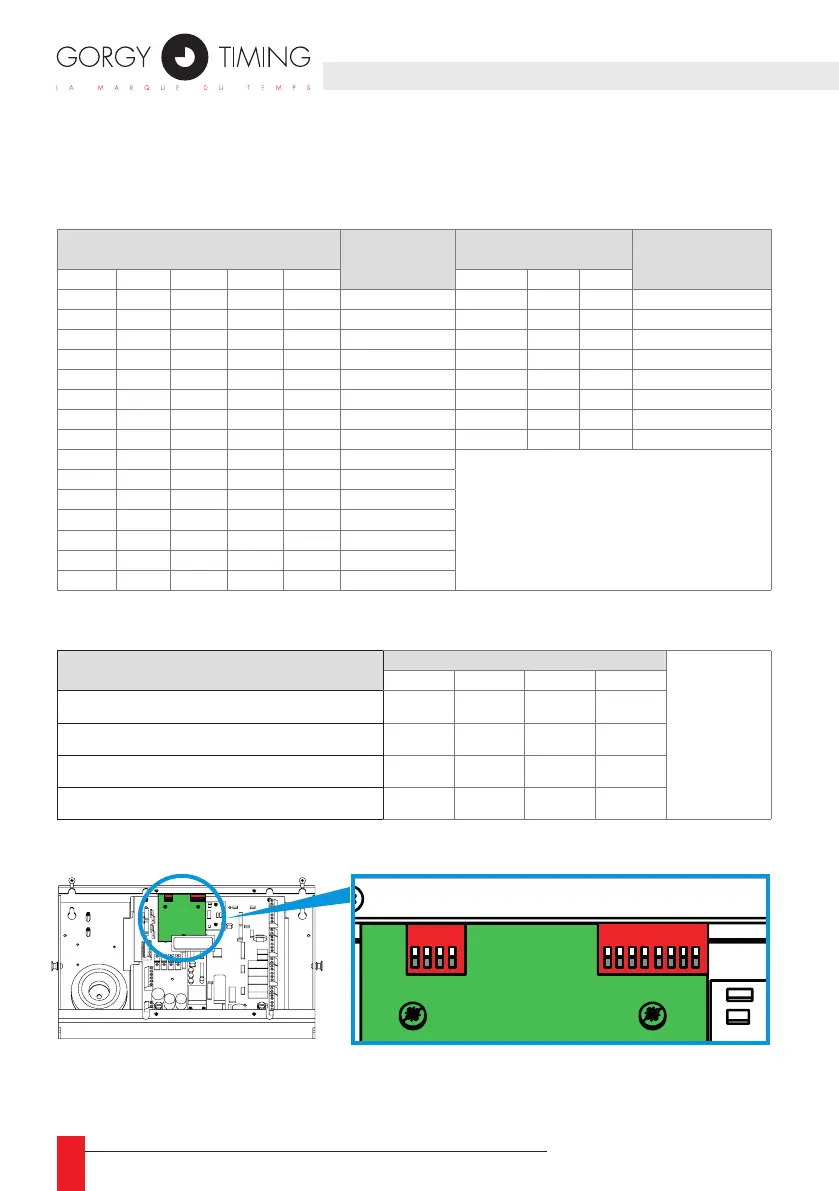

Gorgy Timing RADIO TIMING GTC - Page 40

40
MDE-Radio-Timing-GTC-3080V2.3
☛ Transmission of this message indicates that it is 76 hundredths after
the second at the time of receipt of character «D».
SW1 switch
Switch no.h
Settings
Format, Parity,
SW1 switch
Switch no.
Baud rate
1 2 3 4 5 6 7 8
X Off X X On 7,no,2 Off Off Off 300
Off On X X On 8,no,1 Off Off On 600
On On X X On 8,no,2 Off On Off 1200
Off Off Off Off Off 7,0,1 Off On On 2400
Off Off Off On Off 7,odd,1 On Off Off 4800
Off Off On Off Off 7,even,1 On Off On 9600
Off Off On On Off 7,1,1 On On Off 9600
X On Off Off Off 8,0,1 On On On 9600
X On Off On Off 8,odd,1
X: irrelevant position
Parity: No: no-parity
0: forced to 0
1: forced to 1
X On On Off Off 8,even,1
X On On On Off 8,1,1
On Off Off Off Off 7,0,2
On Off Off On Off 7,odd,2
On Off On Off Off 7,even,2
On Off On on Off 7,1,2
SW5 switch
Switch N°
GORGY
TIMING
protocol
1 2 3 4
UNI mode
Transmitter (default output)
Off Off On Off
BI mode
Bidirectional
Off Off Off Off
UNI mode
Receiver (Sync. input)
On Off On On
UNI mode
Receiver with repetition of output code
On On On On
4321 87654321
SW1SW5
4321 87654321
SW1SW5
