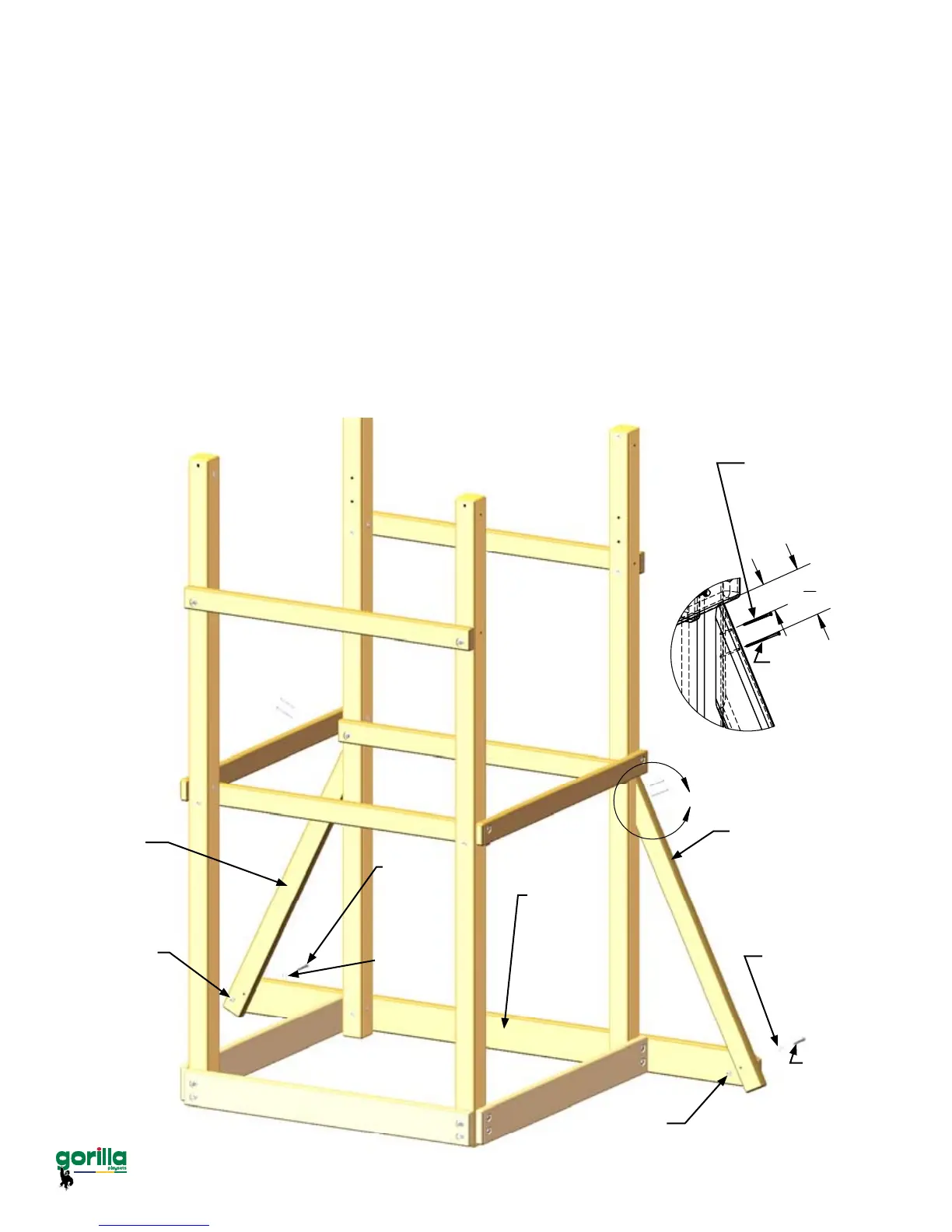

Step 8: Fort Supports
1: Place a 5/16” Tee Nut into the hole in the Fort Supports as shown.
2: From the Rear side of the Rear Panel Board loosely attach each Fort Support with
one 5/16” x 2-1/2” Hex Bolt and one 5/16” washer.
3: Measure 2” and 3-1/2” down from the tip of each Fort Support and drill a 1/8” hole
through the Fort Support along the center. (See Detail A)
4: Place each Fort Support against the Rear Corner Post. The side of the Fort Support
should be ush with the rear side of the Rear Corner post.
5: Attach the angled end of each Fort Support with one 2-1/2” Wood Screw and one 3”
Wood Screw. Tighten each 5/16” x 2-1/2” Hex Bolt.
2 x 4 x 48”
Fort Support
5/16” Tee
Nut
5/16” Washer
5/16” x
2-1/2”
Hex Bolt
5/16” Tee
Nut
5/16”
Washer
5/16” x
2-1/2”
Hex Bolt
2 x 4 x 48”
Fort Support
2-1/2”
Wood Screw
3” Wood Screw
