Step 12: Ladder Assembly
1: Lay one 2 x 4 x 57” Ladder Side on a at surface with channels facing down. Place
the barrel of a T-Nut in the hole at the top of the Ladder Side, and secure with a
hammer. Repeat this step for the other Ladder Side.
1: Flip the Ladder Side over so that the channels are facing up.
2: Place the Ladder Steps into the channels, and then place the second Ladder Side on
top, with the channels facing down.
3: Now place two 2” wood screws in each step.
4: Carefully turn the ladder over and nish the other side with two 2” wood screws per
step.
5: Install two 90
o
green brackets using 1 1/2” bolts and 5/16” washers
6: Install the 5/4 x 4 x 18 1/2” ladder back above the opening of the top channels with
two 2” wood screw per side.

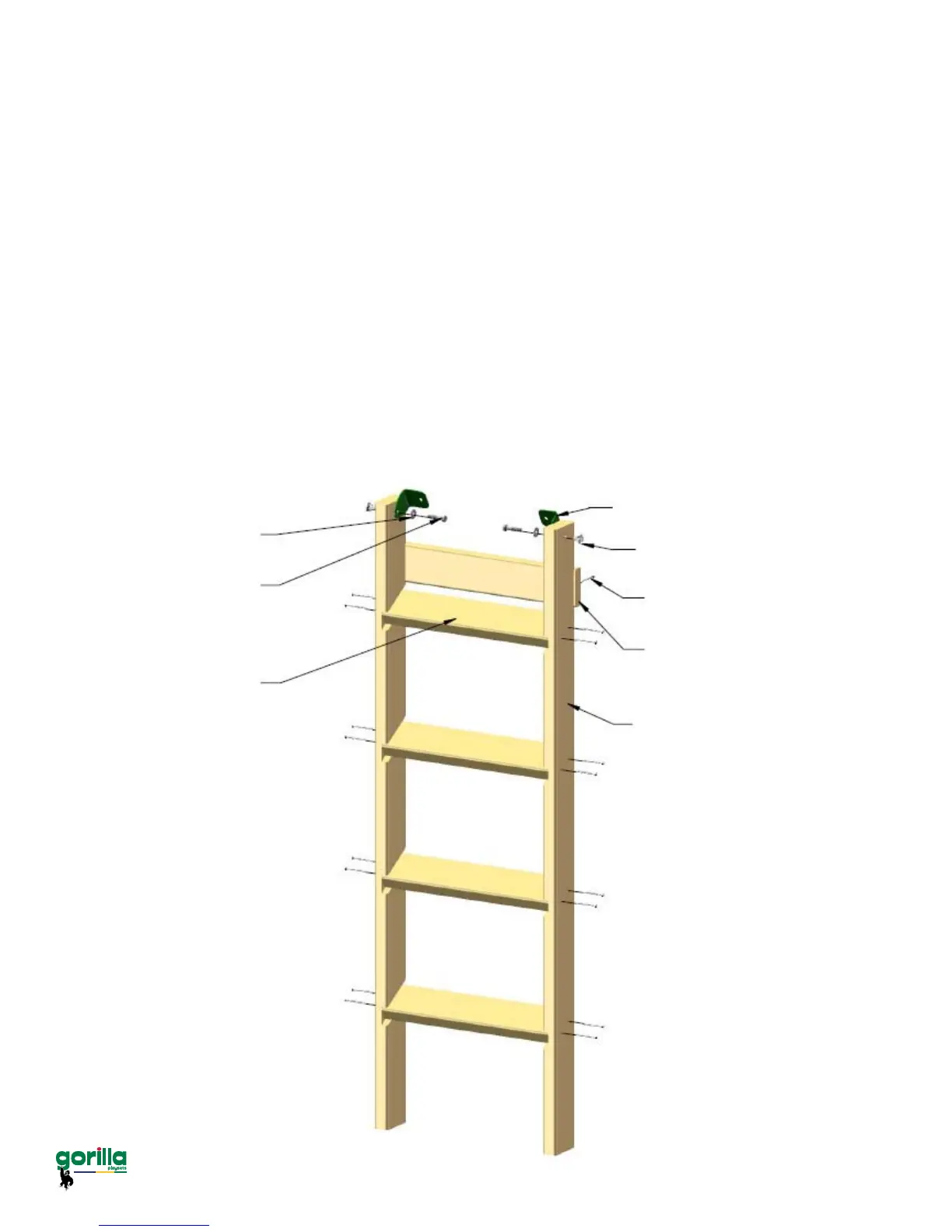

5/16” Washer
5/16” x 1 ½”
Hex Bolt
2 x 4 x 17”
Ladder Step
90
o
Green-
Bracket
2” Wood Screw
5/16” T-Nut
5/4 x 4 x 18-1/2”
Ladder Back
2 x 4 x 57”
Ladder Side
