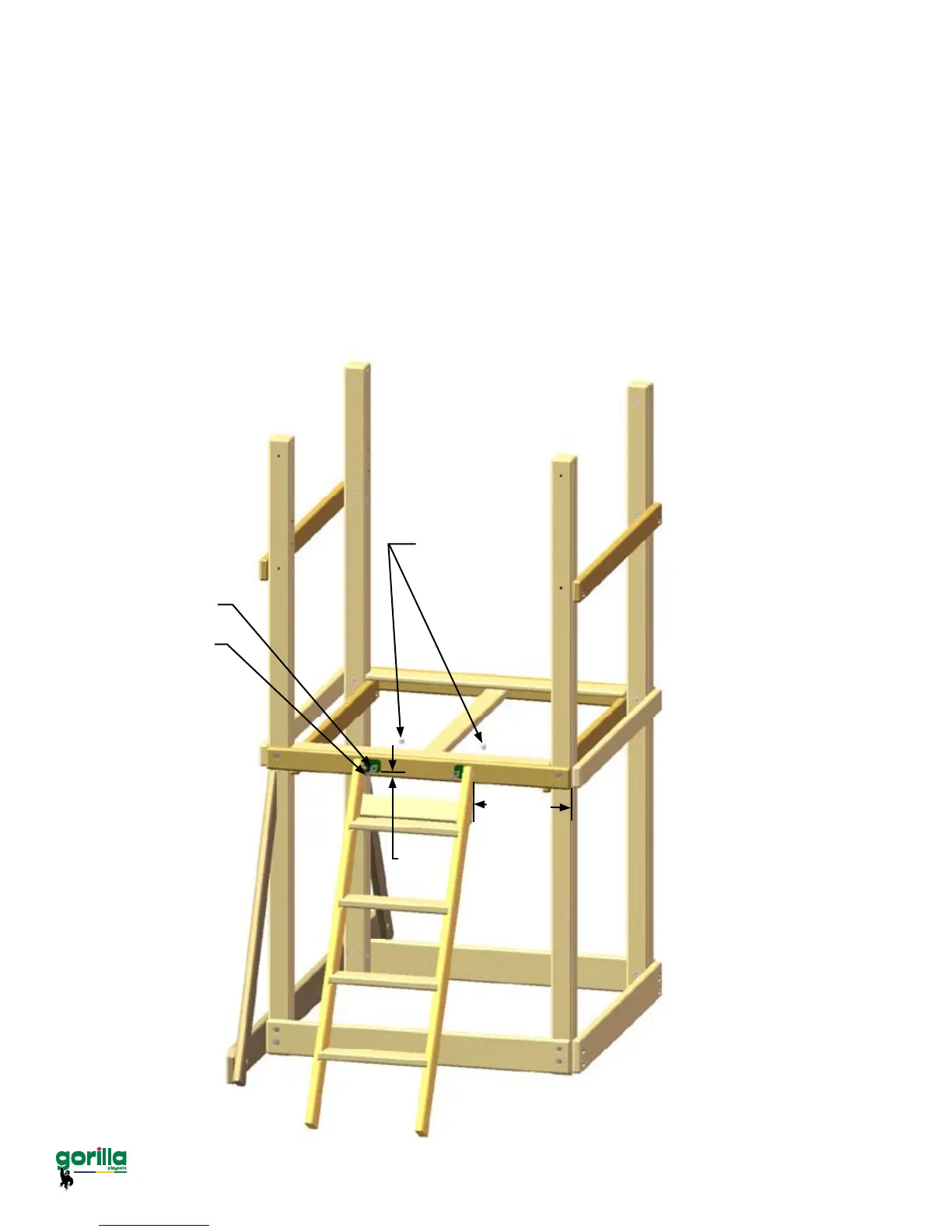

Step 13: Attaching The Ladder
1: The Ladder attaches to the left side of the play set, 14-7/16” from the outside edge of
the front corner post.
2: Make sure the ladder is level. The bottom edge of the 90
o
brackets should be 3/4” up
from the bottom edge of the 2 x 4. Mark the position of the bracket holes on the 2 x 4.
3: Drill 3/8” holes where marked.
4: Insert 5/16” T-nuts in the back of the holes.
5: Attach the 90
o
brackets to the 2 x 4 with two 1-1/2” hex bolts and two 5/16” washers.
14-7/16”
5/16” x 1-1/2”
Hex Bolt
5/16” Washer
5/16” T-Nuts
(Put in back side
of hole)
3/4”
Page 42
To Next Page
