Step 17: Panel Slats
1: Locate nineteen 5/4 x 3 x 28” Panel Slats. Four Panel Slats will be installed at both
the left, right and front of the play set. Seven Panel Slats will be installed at the rear of
the play set..
2: At the rear of the play set center one Panel Slat over the center of each deck board.
Square each Panel Slat to the Panel Support Attach each Panel Slat to the inside of the
Panel Supports with two 2” wood screws for each Panel Slat.
3: At each side and at the front of the play set place one Panel Slat ush with the end
of the 2 x 4 x 12” Bottom Panel Board. Square the top of the Panel Slat with the Panel
Support or Panel Board. Attach the Panel Slat to the Panel Board/Panel Support with
two 2” wood screws. Center another Panel Slat between the one you just installed and
the corner post. Attach the Panel Slat with two 2” wood screws.

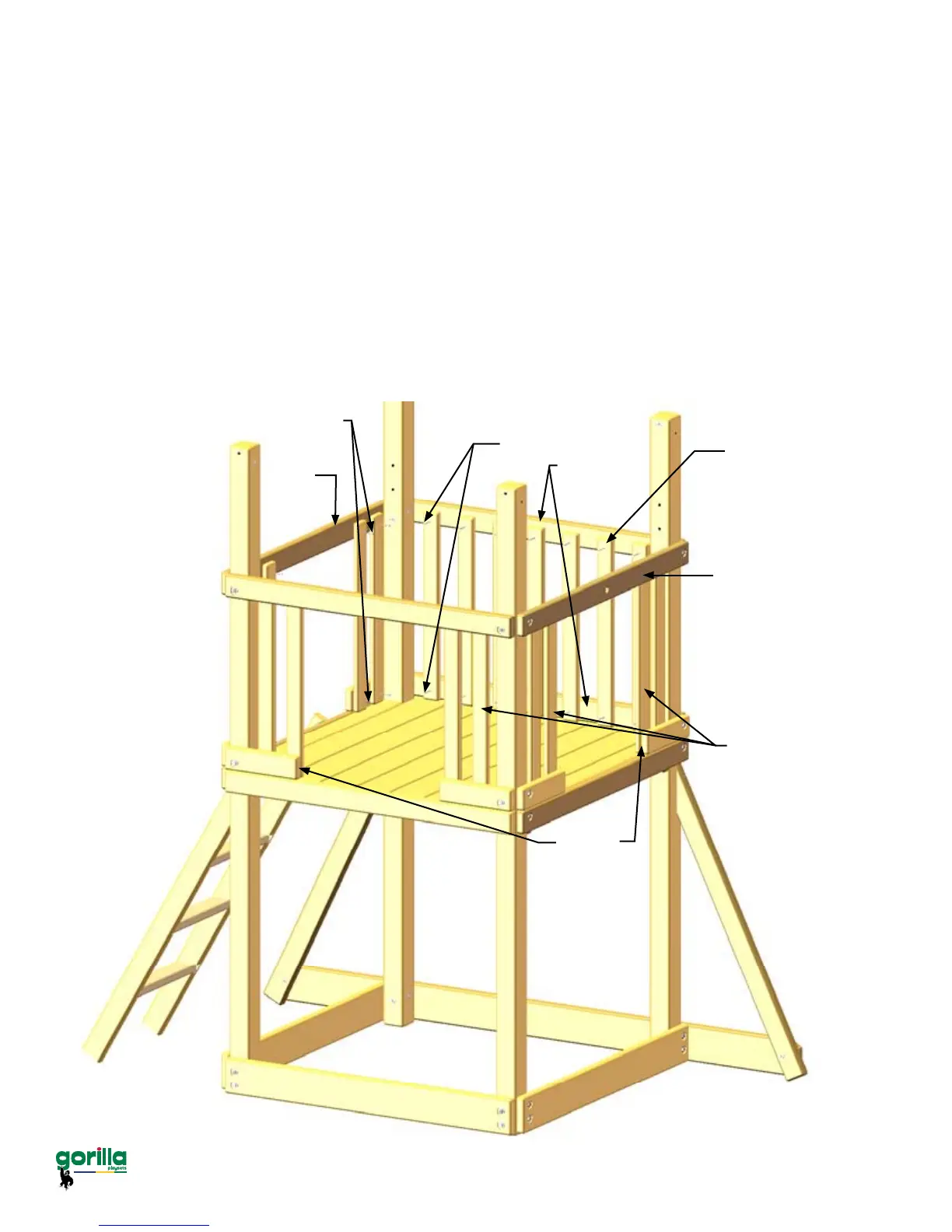

5/4 x 3 x 28”
Panel Slat
(7 pieces at rear.)
5/4 x 3 x 28”
Panel Slat
(4 pieces per side
and 4 pieces at
front.)
2” Wood Screw
2” Wood Screw
Panel
Support
Panel Board
Flush
Panel
Support
Page 46
