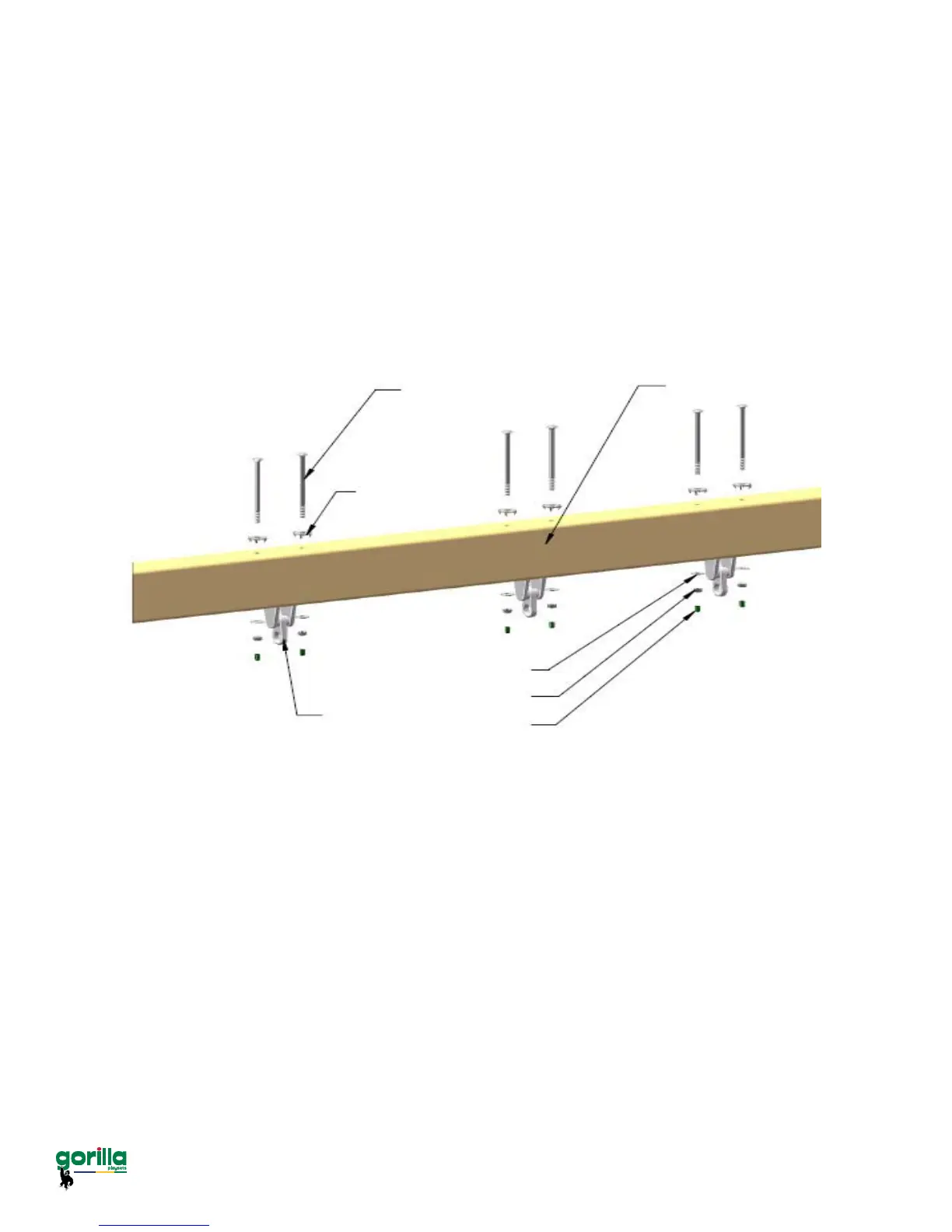

Step 27: Iron Ductiles
1: Line up the holes of the Iron Ductiles with the holes in the Swing Beam.
2: Fasten the Iron Ductiles to the Swing Beam using 3/8” x 7” carriage bolts with torque
washers on top of the Swing Beam, and 3/8” lock nuts with 3/8” washers on the bottom.
Place bolt caps over exposed threads after securing.
7” Carriage Bolt
4 x 6 x 108”
Swing Beam
Torque Washer
3/8” Washer
3/8” Lock Nut
Bolt Cap
Iron Ductile
