Step 50: Tic Tac Toe
1: Assemble the Tic Tac Toe panel according to the instructions in the box. IGNORE
Step 6 and Step 7 in the instructions.
2: Attach the two 1-3/8” x 1-5/8” x 10-1/2”L Tic Tac Toe Boards to the Green
Plastic Brackets with the 1”L phillips head screws provided in the Tic Tac Toe box.

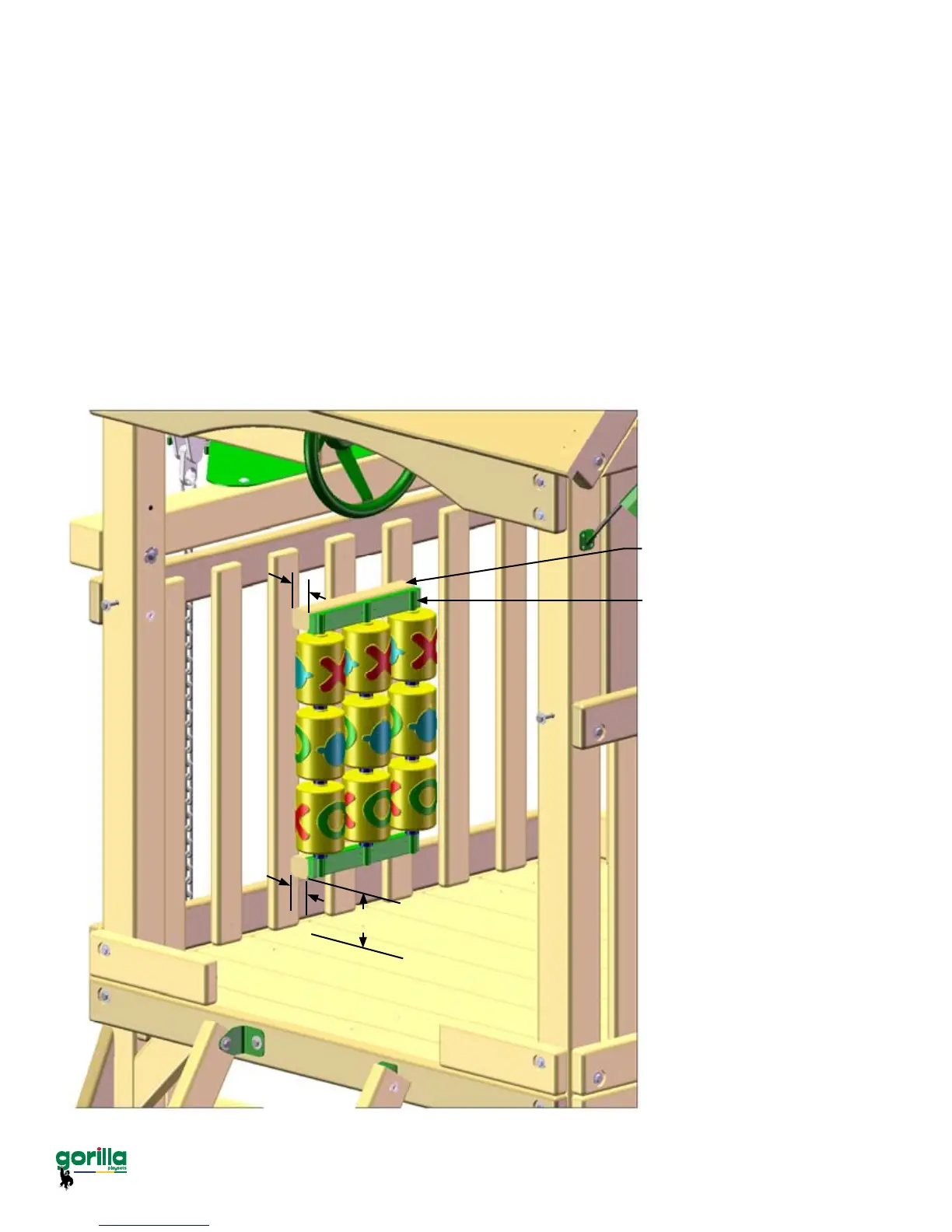

IMPORTANT: Make sure the Tic Tac Toe Board is mounted to the Green Plastic Bracket
observing the 1-5/8” dimension shown below.
3: Center the unit on the panel slats on the swing beam side of the play set.
4: Mount the lower Tic Tac Toe Board 4” above the deck. Attach the Tic Tac Toe Boards
to the Panel Slats from outside the play set with #8 x 2”L wood screws.
1-5/8”
Green Plastic
Bracket
1-3/8” x 1-5/8” x 10-1/2”
Tic Tac Toe Board
4”
1-5/8”
Note: Some boards
have been left out of
the picture for clarity.
Page 79
